Datasheet MUR405, MUR410, MUR415, MUR420, MUR440, MUR460 (ON Semiconductor) - 7
| 制造商 | ON Semiconductor |
| 描述 | Switch-Mode Power Rectifiers |
| 页数 / 页 | 9 / 7 — MUR405, MUR410, MUR415, MUR420, MUR440, MUR460. NOTE 2 — AMBIENT MOUNTING … |
| 修订版 | 16 |
| 文件格式/大小 | PDF / 192 Kb |
| 文件语言 | 英语 |
MUR405, MUR410, MUR415, MUR420, MUR440, MUR460. NOTE 2 — AMBIENT MOUNTING DATA. TYPICAL VALUES FOR. JA IN STILL AIR. Mounting
该数据表的模型线
文件文字版本

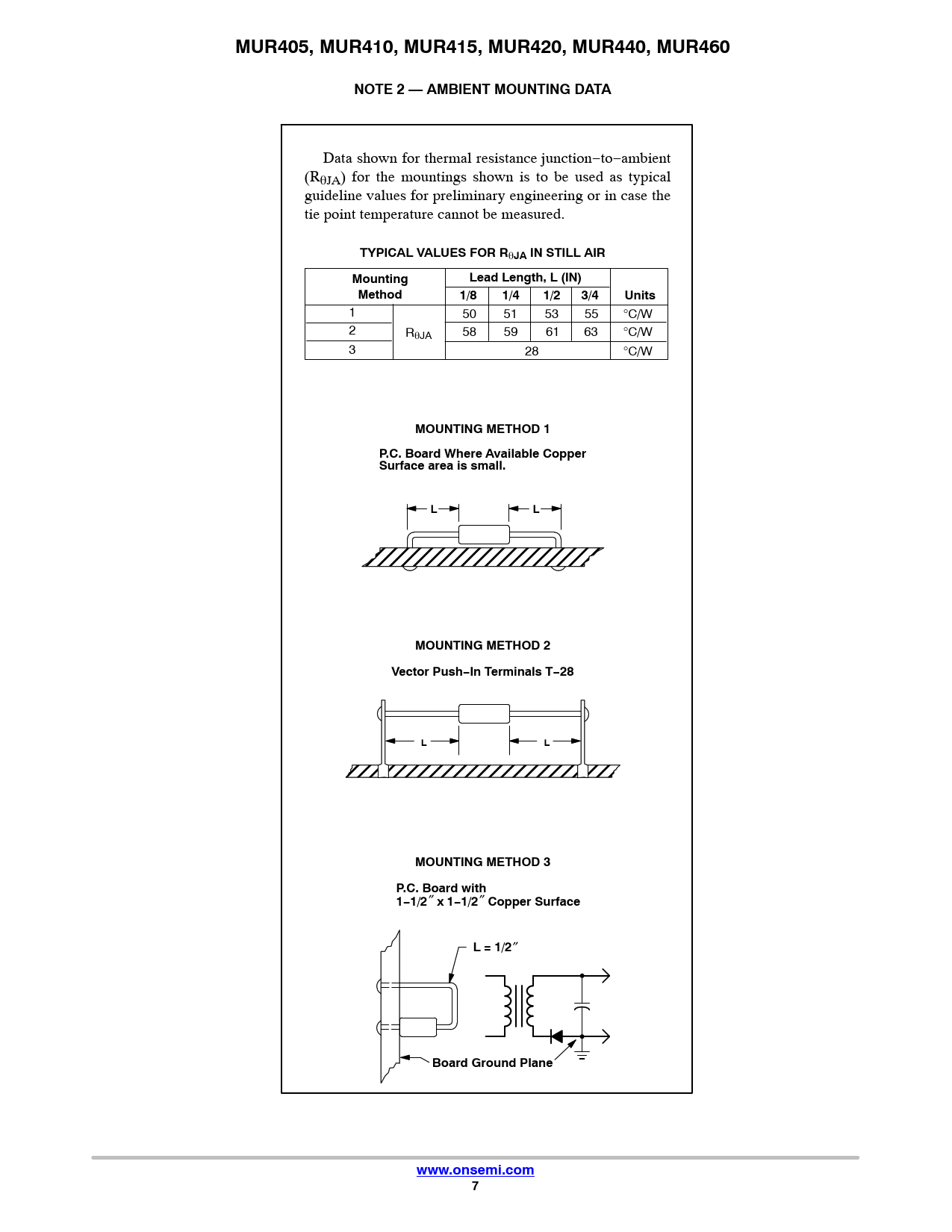

MUR405, MUR410, MUR415, MUR420, MUR440, MUR460 NOTE 2 — AMBIENT MOUNTING DATA
Data shown for thermal resistance junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured.
TYPICAL VALUES FOR R
q
JA IN STILL AIR Mounting Lead Length, L (IN) Method 1/8 1/4 1/2 3/4 Units
1 50 51 53 55 °C/W 2 R 58 qJA 59 61 63 °C/W 3 28 °C/W
MOUNTING METHOD 1 P.C. Board Where Available Copper Surface area is small. L L
ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ
MOUNTING METHOD 2 Vector Push−In Terminals T−28 L L
ÉÉÉÉÉÉÉÉÉÉÉÉ
MOUNTING METHOD 3 P.C. Board with 1−1/2
″
x 1−1/2
″
Copper Surface
ÉÉ
L = 1/2
″ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ
Board Ground Plane
ÉÉ ÉÉ
www.onsemi.com 7
