Datasheet KSB1366 (Fairchild) - 3
| 制造商 | Fairchild |
| 描述 | LOW FREQUENCY POWER AMPLIFIER |
| 页数 / 页 | 4 / 3 — KSB136. Package Demensions |
| 文件格式/大小 | PDF / 58 Kb |
| 文件语言 | 英语 |
KSB136. Package Demensions
该数据表的模型线
文件文字版本

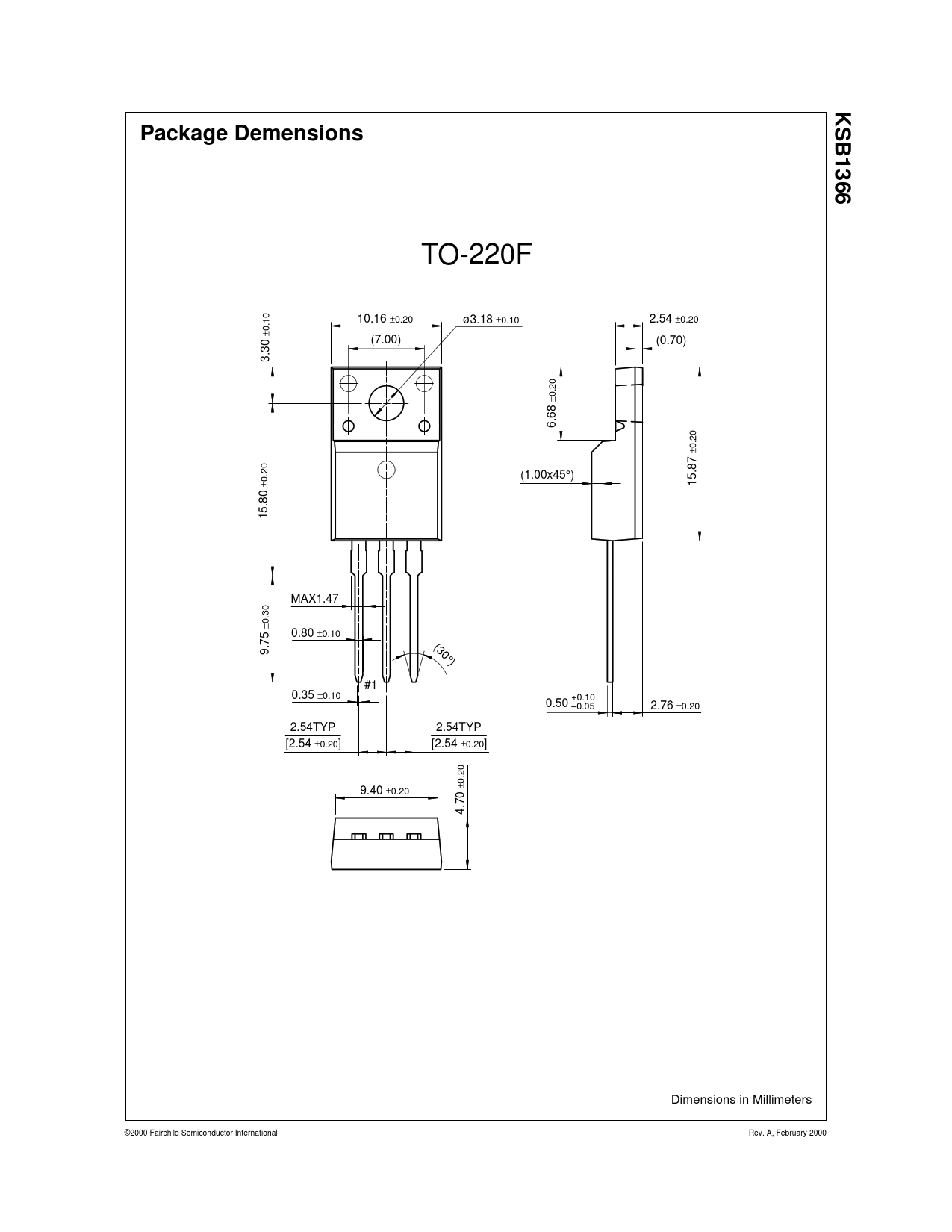

KSB136 Package Demensions 6
TO-220F 10.16 ±0.20 ø3.18 ±0.10 2.54 ±0.20 ±0.10 (7.00) (0.70) 3.30 ±0.20 6.68 ±0.20 (1.00x45°) ±0.20 15.87 15.80 MAX1.47 ±0.30 0.80 ±0.10 (30 9.75 °) #1 0.35 ±0.10 +0.10 0.50 –0.05 2.76 ±0.20 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ±0.20 9.40 ±0.20 4.70 Dimensions in Millimeters ©2000 Fairchild Semiconductor International Rev. A, February 2000
TO-220F 10.16 ±0.20 ø3.18 ±0.10 2.54 ±0.20 ±0.10 (7.00) (0.70) 3.30 ±0.20 6.68 ±0.20 (1.00x45°) ±0.20 15.87 15.80 MAX1.47 ±0.30 0.80 ±0.10 (30 9.75 °) #1 0.35 ±0.10 +0.10 0.50 –0.05 2.76 ±0.20 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ±0.20 9.40 ±0.20 4.70 Dimensions in Millimeters ©2000 Fairchild Semiconductor International Rev. A, February 2000
