Datasheet N-Channel 60-V (D-S) MOSFET (Vishay) - 9
| 制造商 | Vishay |
| 描述 | P-Channel 80 V (D-S) MOSFET |
| 页数 / 页 | 10 / 9 — Application Note 826. RECOMMENDED MINIMUM PADS FOR SOT-23 |
| 文件格式/大小 | PDF / 226 Kb |
| 文件语言 | 英语 |
Application Note 826. RECOMMENDED MINIMUM PADS FOR SOT-23
该数据表的模型线
文件文字版本

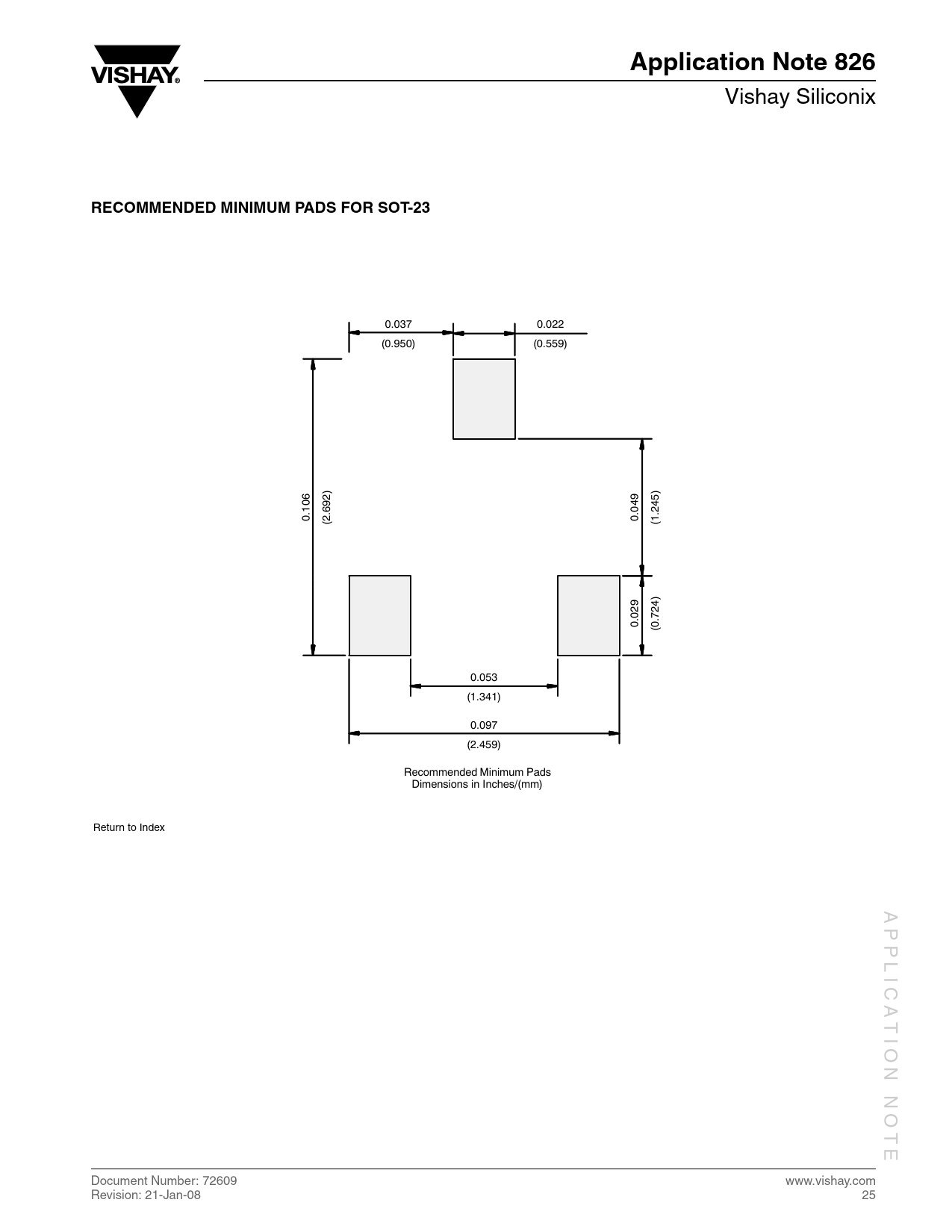

Application Note 826
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR SOT-23
0.037 0.022 (0.950) (0.559) 0.106 (2.692) 0.049 (1.245) 0.029 (0.724) 0.053 (1.341) 0.097 (2.459) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72609 www.vishay.com Revision: 21-Jan-08 25
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR SOT-23
0.037 0.022 (0.950) (0.559) 0.106 (2.692) 0.049 (1.245) 0.029 (0.724) 0.053 (1.341) 0.097 (2.459) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72609 www.vishay.com Revision: 21-Jan-08 25
