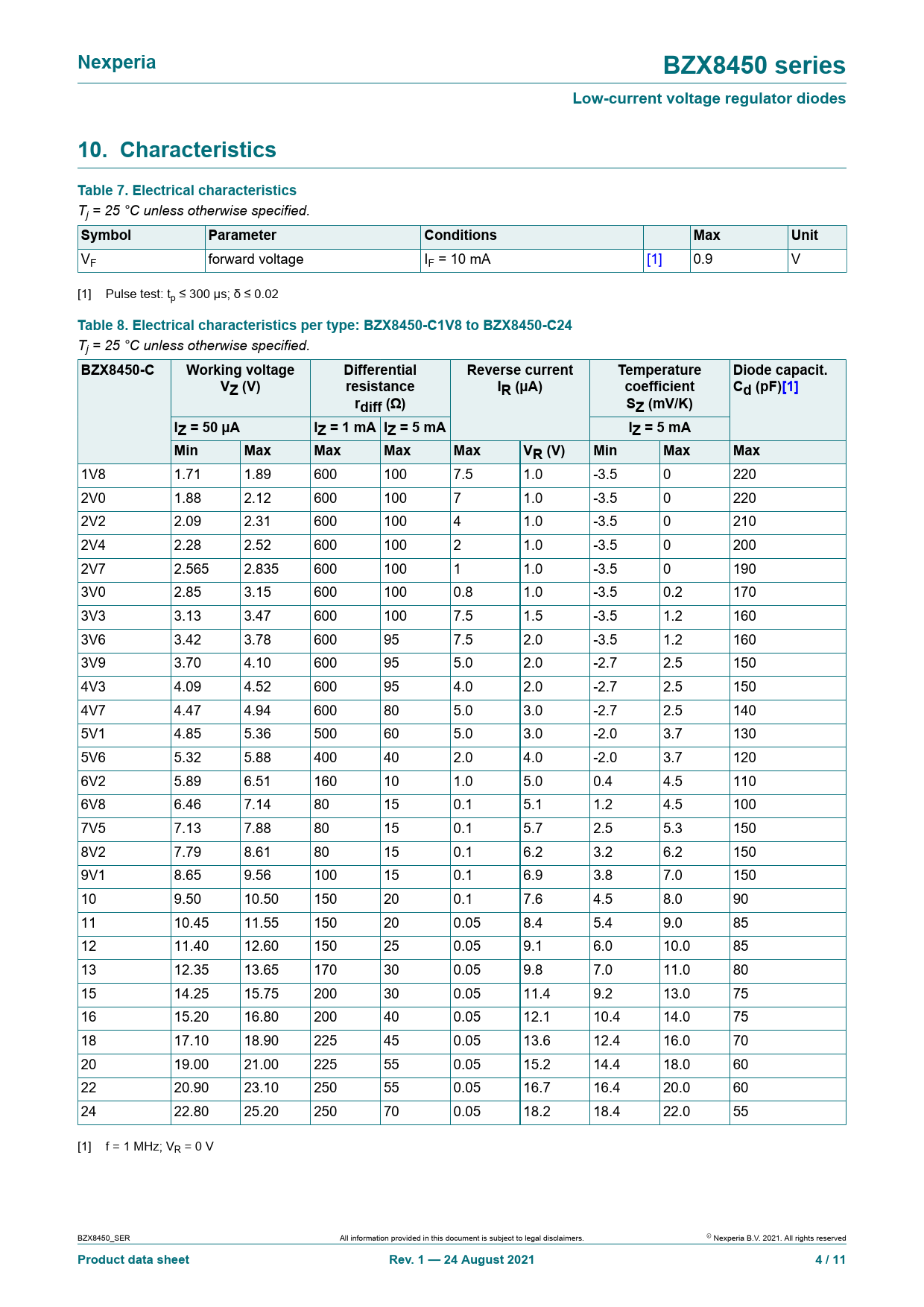

Nexperia BZX8450 series Low-current voltage regulator diodes 10. Characteristics Table 7. Electrical characteristics
Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Max Unit
VF forward voltage IF = 10 mA [1] 0.9 V [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02
Table 8. Electrical characteristics per type: BZX8450-C1V8 to BZX8450-C24
Tj = 25 °C unless otherwise specified.
BZX8450-C Working voltage Differential Reverse current Temperature Diode capacit. VZ (V) resistance IR (µA) coefficient Cd (pF)[1] rdiff (Ω) SZ (mV/K) IZ = 50 µA IZ = 1 mA IZ = 5 mA IZ = 5 mA Min Max Max Max Max VR (V) Min Max Max
1V8 1.71 1.89 600 100 7.5 1.0 -3.5 0 220 2V0 1.88 2.12 600 100 7 1.0 -3.5 0 220 2V2 2.09 2.31 600 100 4 1.0 -3.5 0 210 2V4 2.28 2.52 600 100 2 1.0 -3.5 0 200 2V7 2.565 2.835 600 100 1 1.0 -3.5 0 190 3V0 2.85 3.15 600 100 0.8 1.0 -3.5 0.2 170 3V3 3.13 3.47 600 100 7.5 1.5 -3.5 1.2 160 3V6 3.42 3.78 600 95 7.5 2.0 -3.5 1.2 160 3V9 3.70 4.10 600 95 5.0 2.0 -2.7 2.5 150 4V3 4.09 4.52 600 95 4.0 2.0 -2.7 2.5 150 4V7 4.47 4.94 600 80 5.0 3.0 -2.7 2.5 140 5V1 4.85 5.36 500 60 5.0 3.0 -2.0 3.7 130 5V6 5.32 5.88 400 40 2.0 4.0 -2.0 3.7 120 6V2 5.89 6.51 160 10 1.0 5.0 0.4 4.5 110 6V8 6.46 7.14 80 15 0.1 5.1 1.2 4.5 100 7V5 7.13 7.88 80 15 0.1 5.7 2.5 5.3 150 8V2 7.79 8.61 80 15 0.1 6.2 3.2 6.2 150 9V1 8.65 9.56 100 15 0.1 6.9 3.8 7.0 150 10 9.50 10.50 150 20 0.1 7.6 4.5 8.0 90 11 10.45 11.55 150 20 0.05 8.4 5.4 9.0 85 12 11.40 12.60 150 25 0.05 9.1 6.0 10.0 85 13 12.35 13.65 170 30 0.05 9.8 7.0 11.0 80 15 14.25 15.75 200 30 0.05 11.4 9.2 13.0 75 16 15.20 16.80 200 40 0.05 12.1 10.4 14.0 75 18 17.10 18.90 225 45 0.05 13.6 12.4 16.0 70 20 19.00 21.00 225 55 0.05 15.2 14.4 18.0 60 22 20.90 23.10 250 55 0.05 16.7 16.4 20.0 60 24 22.80 25.20 250 70 0.05 18.2 18.4 22.0 55 [1] f = 1 MHz; VR = 0 V BZX8450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 4 / 11
