Datasheet BZX8850S (Nexperia) - 5
| 制造商 | Nexperia |
| 描述 | Low-current voltage regulator diodes |
| 页数 / 页 | 11 / 5 — Nexperia. BZX8850S series. Low-current voltage regulator diodes |
| 修订版 | 25082021 |
| 文件格式/大小 | PDF / 258 Kb |
| 文件语言 | 英语 |
Nexperia. BZX8850S series. Low-current voltage regulator diodes
该数据表的模型线
- BZX8850S-C10YL BZX8850S-C11YL BZX8850S-C12YL BZX8850S-C13YL BZX8850S-C15YL BZX8850S-C16YL BZX8850S-C18YL BZX8850S-C1V8YL BZX8850S-C20YL BZX8850S-C22YL BZX8850S-C24YL BZX8850S-C27YL BZX8850S-C2V0YL BZX8850S-C2V2YL BZX8850S-C2V4YL BZX8850S-C2V7YL BZX8850S-C30YL BZX8850S-C33YL BZX8850S-C36YL BZX8850S-C39YL BZX8850S-C3V0YL BZX8850S-C3V3YL BZX8850S-C3V6YL BZX8850S-C3V9YL BZX8850S-C43YL BZX8850S-C47YL BZX8850S-C4V3YL BZX8850S-C4V7YL BZX8850S-C51YL BZX8850S-C56YL BZX8850S-C5V1YL BZX8850S-C5V6YL BZX8850S-C62YL BZX8850S-C68YL BZX8850S-C6V2YL BZX8850S-C6V8YL BZX8850S-C75YL BZX8850S-C7V5YL BZX8850S-C8V2YL BZX8850S-C9V1YL
文件文字版本
link to page 5

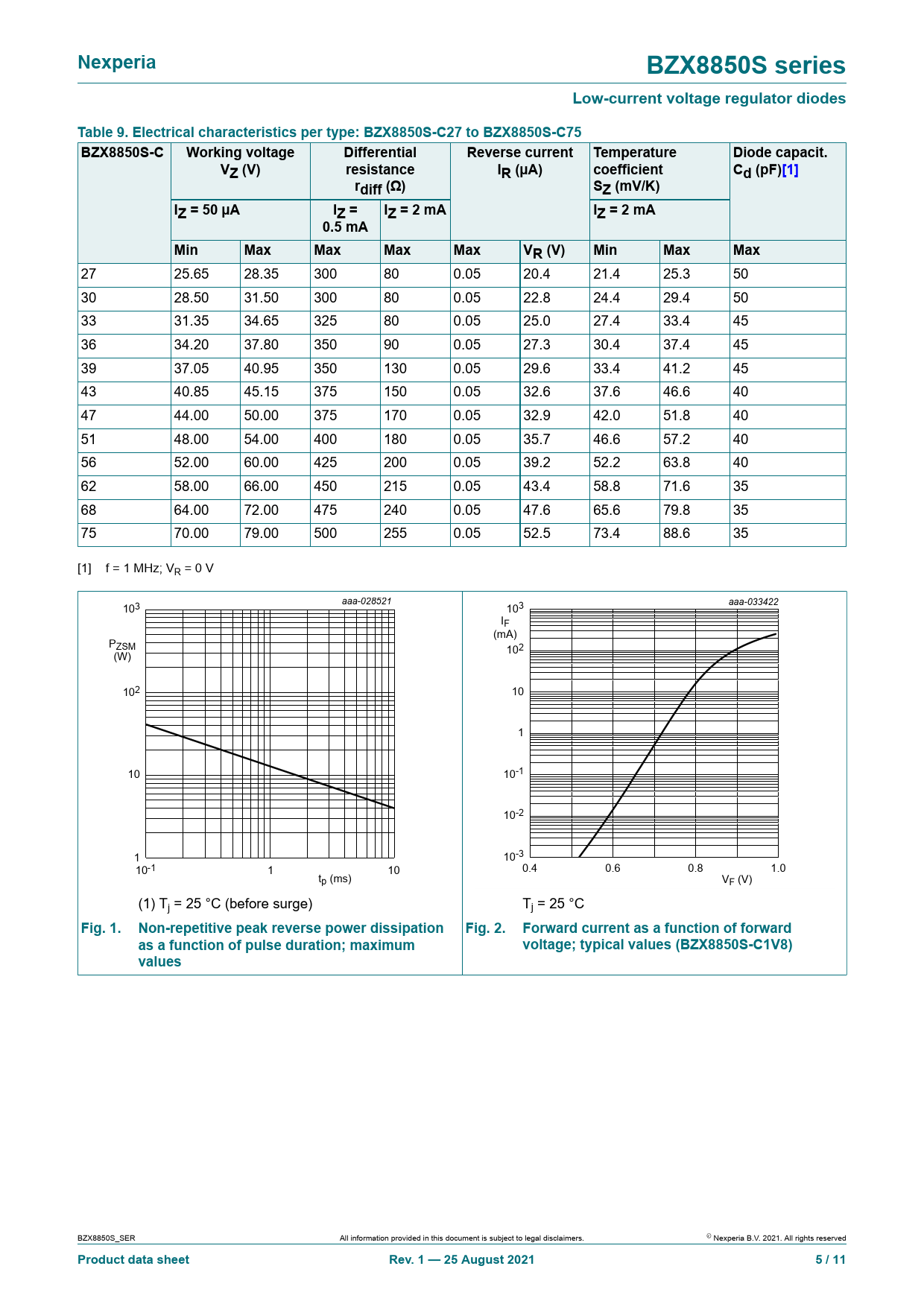

Nexperia BZX8850S series Low-current voltage regulator diodes Table 9. Electrical characteristics per type: BZX8850S-C27 to BZX8850S-C75 BZX8850S-C Working voltage Differential Reverse current Temperature Diode capacit. VZ (V) resistance IR (µA) coefficient Cd (pF)[1] rdiff (Ω) SZ (mV/K) IZ = 50 µA IZ = IZ = 2 mA IZ = 2 mA 0.5 mA Min Max Max Max Max VR (V) Min Max Max
27 25.65 28.35 300 80 0.05 20.4 21.4 25.3 50 30 28.50 31.50 300 80 0.05 22.8 24.4 29.4 50 33 31.35 34.65 325 80 0.05 25.0 27.4 33.4 45 36 34.20 37.80 350 90 0.05 27.3 30.4 37.4 45 39 37.05 40.95 350 130 0.05 29.6 33.4 41.2 45 43 40.85 45.15 375 150 0.05 32.6 37.6 46.6 40 47 44.00 50.00 375 170 0.05 32.9 42.0 51.8 40 51 48.00 54.00 400 180 0.05 35.7 46.6 57.2 40 56 52.00 60.00 425 200 0.05 39.2 52.2 63.8 40 62 58.00 66.00 450 215 0.05 43.4 58.8 71.6 35 68 64.00 72.00 475 240 0.05 47.6 65.6 79.8 35 75 70.00 79.00 500 255 0.05 52.5 73.4 88.6 35 [1] f = 1 MHz; VR = 0 V aaa-028521 103 aaa-033422 103 IF (mA) PZSM (W) 102 102 10 1 10 10-1 10-2 1 10-3 10-1 1 10 0.4 0.6 0.8 1.0 tp (ms) VF (V) (1) Tj = 25 °C (before surge) Tj = 25 °C
Fig. 1. Non-repetitive peak reverse power dissipation Fig. 2. Forward current as a function of forward as a function of pulse duration; maximum voltage; typical values (BZX8850S-C1V8) values
BZX8850S_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 25 August 2021 5 / 11
