BZX8850S series. Low-current voltage regulator diodes. Rev. 1 — 25 August 2021. Product data sheet. 1. General description
该数据表的模型线
- BZX8850S-C10YL BZX8850S-C11YL BZX8850S-C12YL BZX8850S-C13YL BZX8850S-C15YL BZX8850S-C16YL BZX8850S-C18YL BZX8850S-C1V8YL BZX8850S-C20YL BZX8850S-C22YL BZX8850S-C24YL BZX8850S-C27YL BZX8850S-C2V0YL BZX8850S-C2V2YL BZX8850S-C2V4YL BZX8850S-C2V7YL BZX8850S-C30YL BZX8850S-C33YL BZX8850S-C36YL BZX8850S-C39YL BZX8850S-C3V0YL BZX8850S-C3V3YL BZX8850S-C3V6YL BZX8850S-C3V9YL BZX8850S-C43YL BZX8850S-C47YL BZX8850S-C4V3YL BZX8850S-C4V7YL BZX8850S-C51YL BZX8850S-C56YL BZX8850S-C5V1YL BZX8850S-C5V6YL BZX8850S-C62YL BZX8850S-C68YL BZX8850S-C6V2YL BZX8850S-C6V8YL BZX8850S-C75YL BZX8850S-C7V5YL BZX8850S-C8V2YL BZX8850S-C9V1YL
文件文字版本
link to page 1 link to page 1 link to page 1

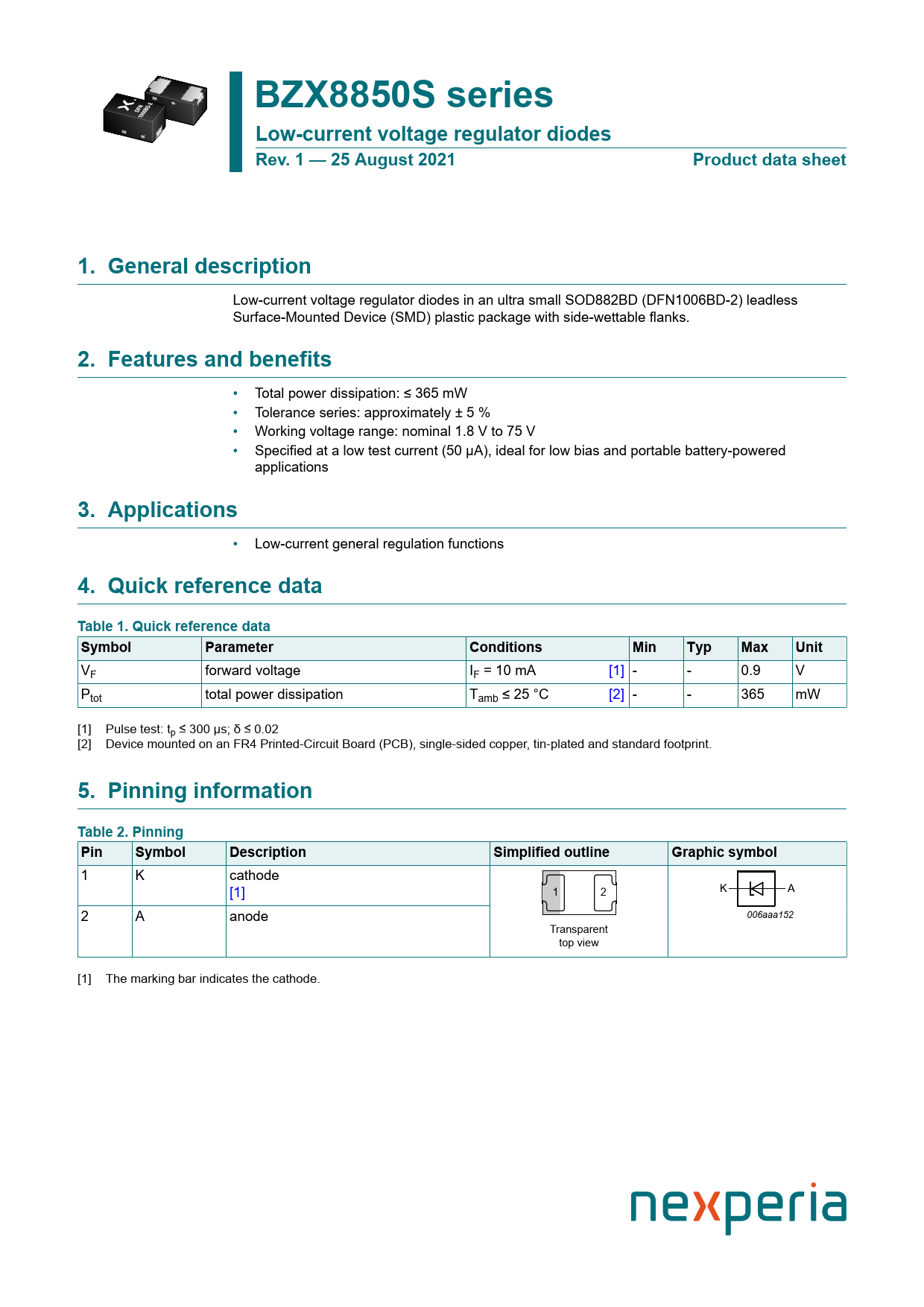

BZX8850S series Low-current voltage regulator diodes Rev. 1 — 25 August 2021 Product data sheet 1. General description
Low-current voltage regulator diodes in an ultra small SOD882BD (DFN1006BD-2) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
2. Features and benefits
• Total power dissipation: ≤ 365 mW • Tolerance series: approximately ± 5 % • Working voltage range: nominal 1.8 V to 75 V • Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
3. Applications
• Low-current general regulation functions
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage IF = 10 mA [1] - - 0.9 V Ptot total power dissipation Tamb ≤ 25 °C [2] - - 365 mW [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02 [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.
5. Pinning information Table 2. Pinning Pin Symbol Description Simplified outline Graphic symbol
1 K cathode [1] 1 2 K A 2 A anode 006aaa152 Transparent top view [1] The marking bar indicates the cathode. Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
