Nexperia. BZX8850S series. Low-current voltage regulator diodes. 8. Limiting values Table 5. Limiting values. Symbol. Parameter
该数据表的模型线
- BZX8850S-C10YL BZX8850S-C11YL BZX8850S-C12YL BZX8850S-C13YL BZX8850S-C15YL BZX8850S-C16YL BZX8850S-C18YL BZX8850S-C1V8YL BZX8850S-C20YL BZX8850S-C22YL BZX8850S-C24YL BZX8850S-C27YL BZX8850S-C2V0YL BZX8850S-C2V2YL BZX8850S-C2V4YL BZX8850S-C2V7YL BZX8850S-C30YL BZX8850S-C33YL BZX8850S-C36YL BZX8850S-C39YL BZX8850S-C3V0YL BZX8850S-C3V3YL BZX8850S-C3V6YL BZX8850S-C3V9YL BZX8850S-C43YL BZX8850S-C47YL BZX8850S-C4V3YL BZX8850S-C4V7YL BZX8850S-C51YL BZX8850S-C56YL BZX8850S-C5V1YL BZX8850S-C5V6YL BZX8850S-C62YL BZX8850S-C68YL BZX8850S-C6V2YL BZX8850S-C6V8YL BZX8850S-C75YL BZX8850S-C7V5YL BZX8850S-C8V2YL BZX8850S-C9V1YL
文件文字版本
link to page 3 link to page 3

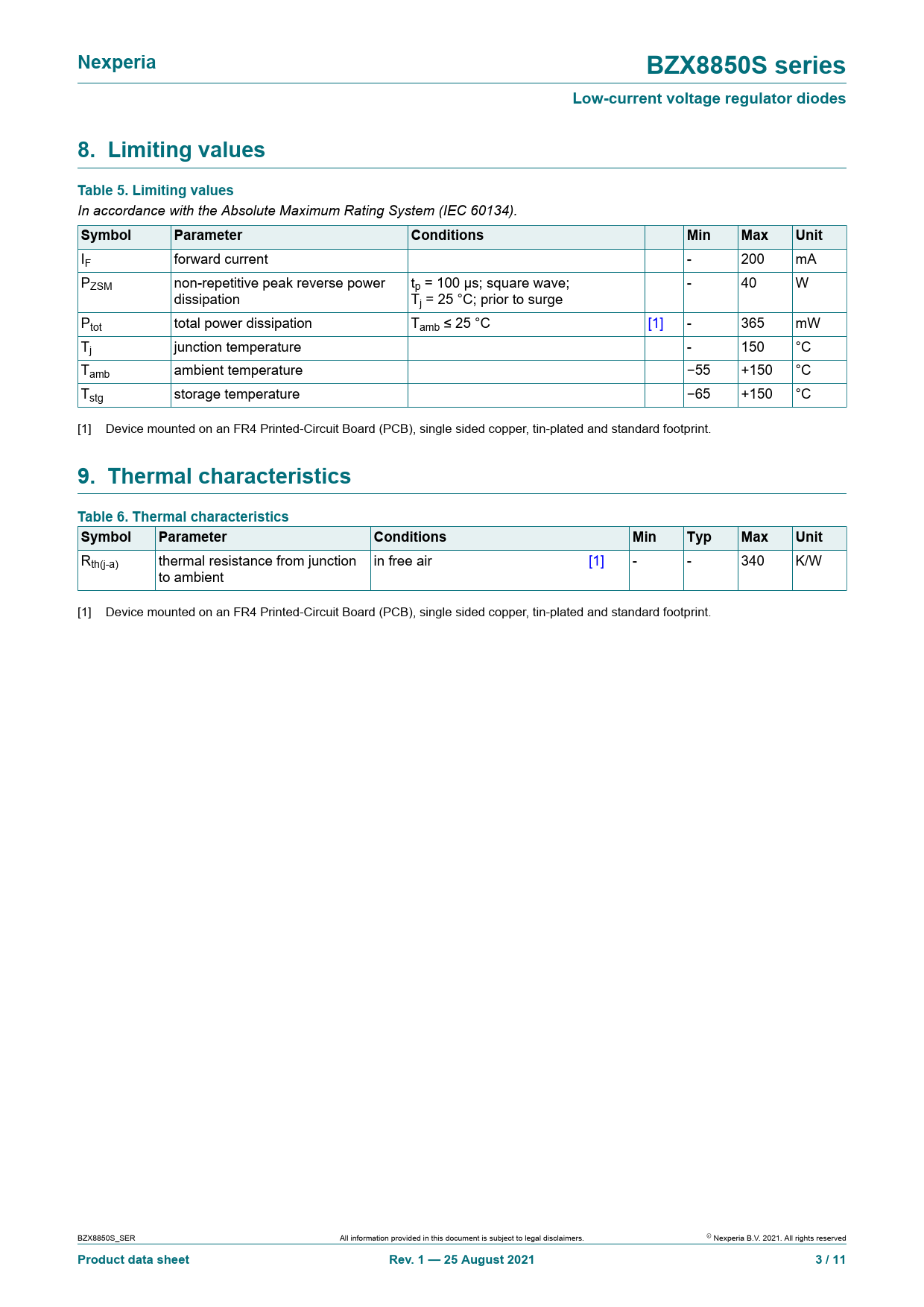

Nexperia BZX8850S series Low-current voltage regulator diodes 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
IF forward current - 200 mA PZSM non-repetitive peak reverse power tp = 100 µs; square wave; - 40 W dissipation Tj = 25 °C; prior to surge Ptot total power dissipation Tamb ≤ 25 °C [1] - 365 mW Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single sided copper, tin-plated and standard footprint.
9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction in free air [1] - - 340 K/W to ambient [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single sided copper, tin-plated and standard footprint. BZX8850S_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 25 August 2021 3 / 11
