Datasheet BZX8850S (Nexperia) - 2
| 制造商 | Nexperia |
| 描述 | Low-current voltage regulator diodes |
| 页数 / 页 | 11 / 2 — Nexperia. BZX8850S series. Low-current voltage regulator diodes. 6. … |
| 修订版 | 25082021 |
| 文件格式/大小 | PDF / 258 Kb |
| 文件语言 | 英语 |
Nexperia. BZX8850S series. Low-current voltage regulator diodes. 6. Ordering information Table 3. Ordering information
该数据表的模型线
- BZX8850S-C10YL BZX8850S-C11YL BZX8850S-C12YL BZX8850S-C13YL BZX8850S-C15YL BZX8850S-C16YL BZX8850S-C18YL BZX8850S-C1V8YL BZX8850S-C20YL BZX8850S-C22YL BZX8850S-C24YL BZX8850S-C27YL BZX8850S-C2V0YL BZX8850S-C2V2YL BZX8850S-C2V4YL BZX8850S-C2V7YL BZX8850S-C30YL BZX8850S-C33YL BZX8850S-C36YL BZX8850S-C39YL BZX8850S-C3V0YL BZX8850S-C3V3YL BZX8850S-C3V6YL BZX8850S-C3V9YL BZX8850S-C43YL BZX8850S-C47YL BZX8850S-C4V3YL BZX8850S-C4V7YL BZX8850S-C51YL BZX8850S-C56YL BZX8850S-C5V1YL BZX8850S-C5V6YL BZX8850S-C62YL BZX8850S-C68YL BZX8850S-C6V2YL BZX8850S-C6V8YL BZX8850S-C75YL BZX8850S-C7V5YL BZX8850S-C8V2YL BZX8850S-C9V1YL
文件文字版本

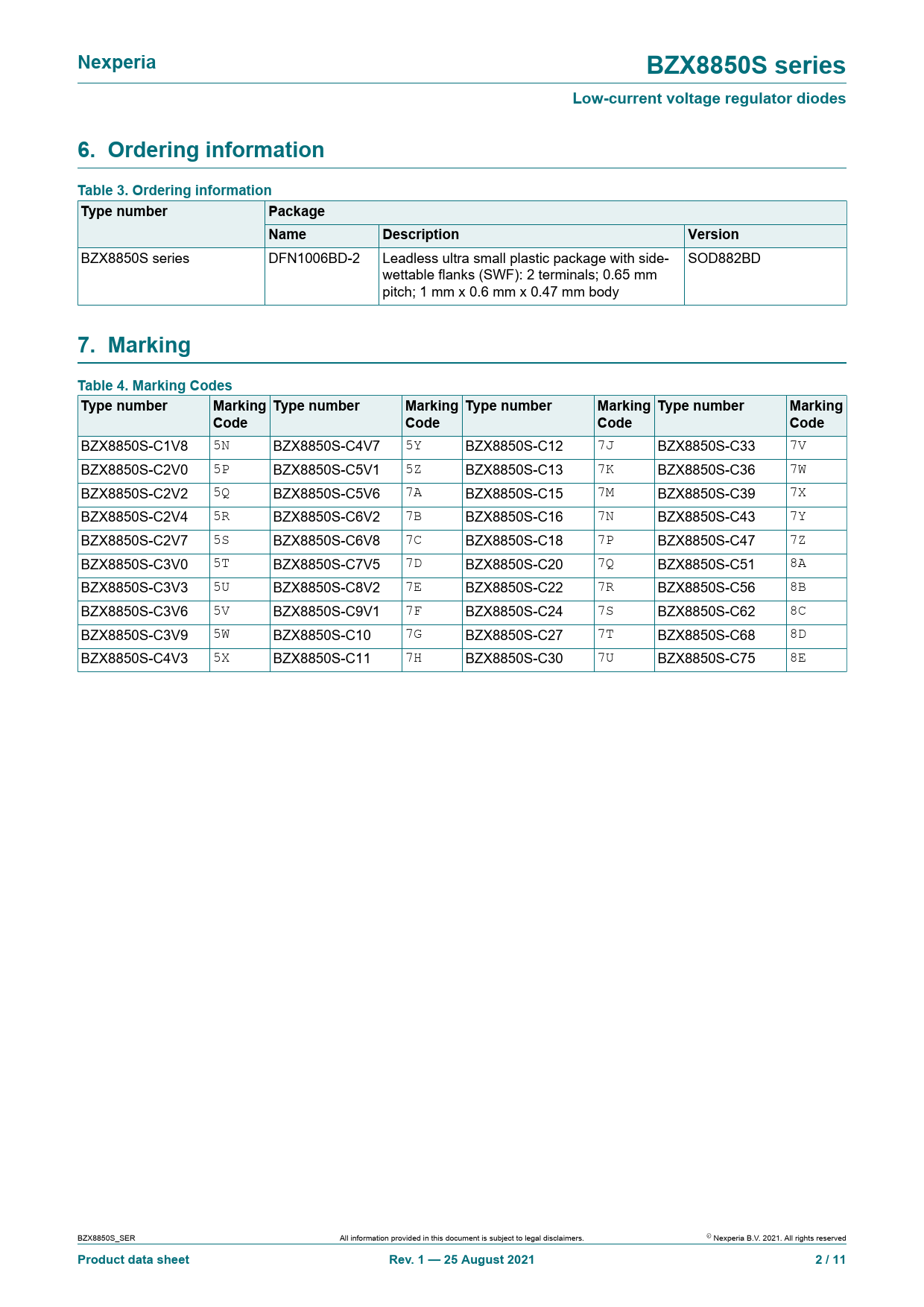

Nexperia BZX8850S series Low-current voltage regulator diodes 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BZX8850S series DFN1006BD-2 Leadless ultra small plastic package with side- SOD882BD wettable flanks (SWF): 2 terminals; 0.65 mm pitch; 1 mm x 0.6 mm x 0.47 mm body
7. Marking Table 4. Marking Codes Type number Marking Type number Marking Type number Marking Type number Marking Code Code Code Code
BZX8850S-C1V8 5N BZX8850S-C4V7 5Y BZX8850S-C12 7J BZX8850S-C33 7V BZX8850S-C2V0 5P BZX8850S-C5V1 5Z BZX8850S-C13 7K BZX8850S-C36 7W BZX8850S-C2V2 5Q BZX8850S-C5V6 7A BZX8850S-C15 7M BZX8850S-C39 7X BZX8850S-C2V4 5R BZX8850S-C6V2 7B BZX8850S-C16 7N BZX8850S-C43 7Y BZX8850S-C2V7 5S BZX8850S-C6V8 7C BZX8850S-C18 7P BZX8850S-C47 7Z BZX8850S-C3V0 5T BZX8850S-C7V5 7D BZX8850S-C20 7Q BZX8850S-C51 8A BZX8850S-C3V3 5U BZX8850S-C8V2 7E BZX8850S-C22 7R BZX8850S-C56 8B BZX8850S-C3V6 5V BZX8850S-C9V1 7F BZX8850S-C24 7S BZX8850S-C62 8C BZX8850S-C3V9 5W BZX8850S-C10 7G BZX8850S-C27 7T BZX8850S-C68 8D BZX8850S-C4V3 5X BZX8850S-C11 7H BZX8850S-C30 7U BZX8850S-C75 8E BZX8850S_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 25 August 2021 2 / 11
