Datasheet TLP624, TLP624-2, TLP624-4 (Toshiba) - 4
| 制造商 | Toshiba |
| 描述 | TOSHIBA Photocoupler IRED & Photo-Transistor |
| 页数 / 页 | 9 / 4 — Electrical Characteristics (Ta = 25°C). Coupled Electrical … |
| 文件格式/大小 | PDF / 370 Kb |
| 文件语言 | 英语 |

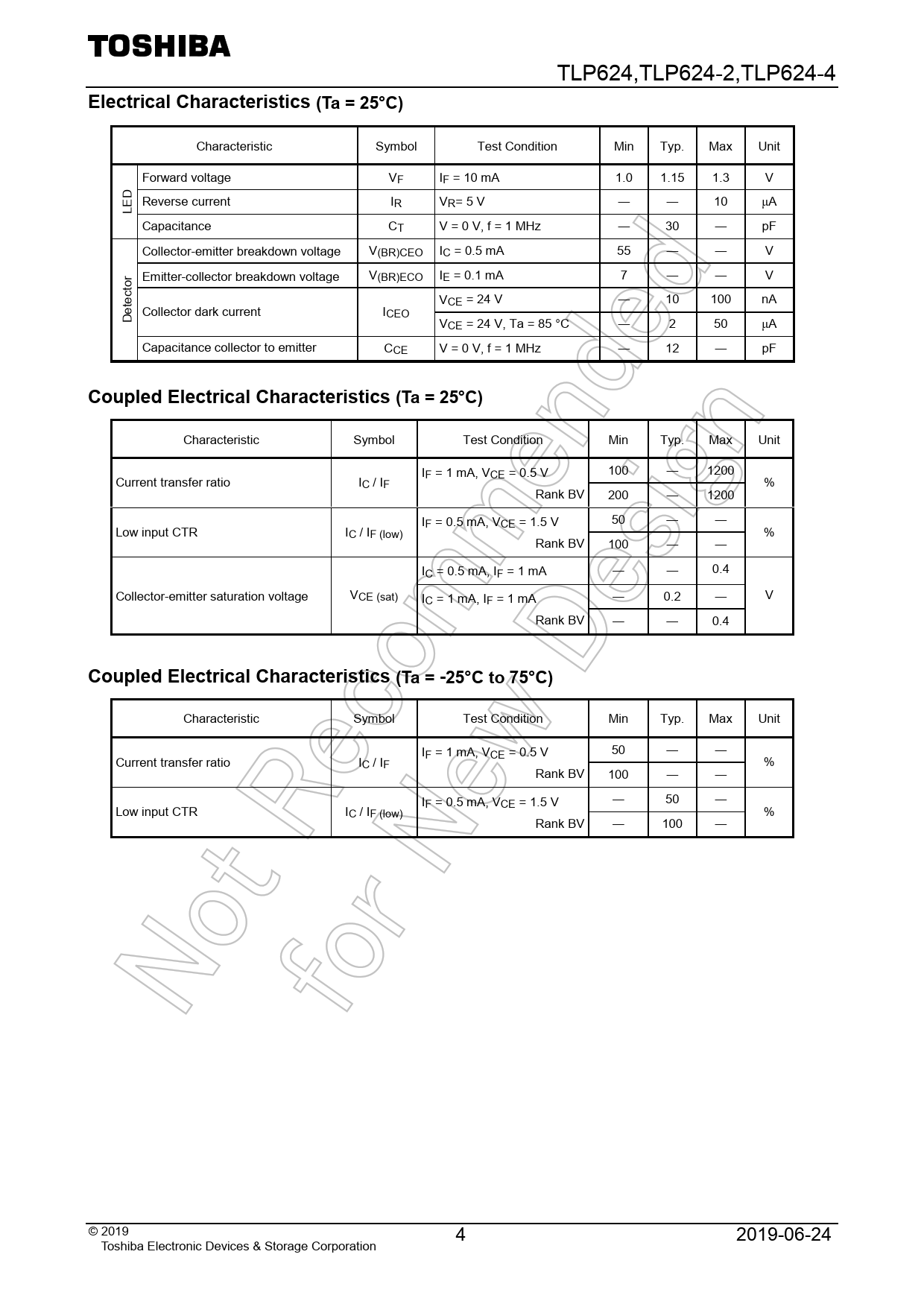

Electrical Characteristics (Ta = 25°C). Coupled Electrical Characteristics (Ta = 25°C)
该数据表的模型线
文件文字版本
TLP624,TLP624-2,TLP624-4
Electrical Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit Forward voltage VF IF = 10 mA 1.0 1.15 1.3 V D LE Reverse current IR VR= 5 V ― ― 10 μA Capacitance CT V = 0 V, f = 1 MHz ― 30 ― pF Collector-emitter breakdown voltage V(BR)CEO IC = 0.5 mA 55 ― ― V Emitter-collector breakdown voltage V(BR)ECO tor IE = 0.1 mA 7 ― ― V ec VCE = 24 V ― 10 100 nA et D Collector dark current ICEO VCE = 24 V, Ta = 85 °C ― 2 50 μA Capacitance collector to emitter CCE V = 0 V, f = 1 MHz ― 12 ― pF
Coupled Electrical Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit I 100 ― 1200 Current transfer ratio I F = 1 mA, VCE = 0.5 V C / IF % Rank BV 200 ― 1200 I 50 ― ― Low input CTR I F = 0.5 mA, VCE = 1.5 V C / IF (low) % Rank BV 100 ― ― IC = 0.5 mA, IF = 1 mA ― ― 0.4 Collector-emitter saturation voltage VCE (sat) ― 0.2 ― V IC = 1 mA, IF = 1 mA Rank BV ― ― 0.4
Coupled Electrical Characteristics (Ta = -25°C to 75°C)
Characteristic Symbol Test Condition Min Typ. Max Unit I 50 ― ― Current transfer ratio I F = 1 mA, VCE = 0.5 V C / IF % Rank BV 100 ― ― I ― 50 ― Low input CTR I F = 0.5 mA, VCE = 1.5 V C / IF (low) % Rank BV ― 100 ― © 2019 4 2019-06-24 Toshiba Electronic Devices & Storage Corporation
Electrical Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit Forward voltage VF IF = 10 mA 1.0 1.15 1.3 V D LE Reverse current IR VR= 5 V ― ― 10 μA Capacitance CT V = 0 V, f = 1 MHz ― 30 ― pF Collector-emitter breakdown voltage V(BR)CEO IC = 0.5 mA 55 ― ― V Emitter-collector breakdown voltage V(BR)ECO tor IE = 0.1 mA 7 ― ― V ec VCE = 24 V ― 10 100 nA et D Collector dark current ICEO VCE = 24 V, Ta = 85 °C ― 2 50 μA Capacitance collector to emitter CCE V = 0 V, f = 1 MHz ― 12 ― pF
Coupled Electrical Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit I 100 ― 1200 Current transfer ratio I F = 1 mA, VCE = 0.5 V C / IF % Rank BV 200 ― 1200 I 50 ― ― Low input CTR I F = 0.5 mA, VCE = 1.5 V C / IF (low) % Rank BV 100 ― ― IC = 0.5 mA, IF = 1 mA ― ― 0.4 Collector-emitter saturation voltage VCE (sat) ― 0.2 ― V IC = 1 mA, IF = 1 mA Rank BV ― ― 0.4
Coupled Electrical Characteristics (Ta = -25°C to 75°C)
Characteristic Symbol Test Condition Min Typ. Max Unit I 50 ― ― Current transfer ratio I F = 1 mA, VCE = 0.5 V C / IF % Rank BV 100 ― ― I ― 50 ― Low input CTR I F = 0.5 mA, VCE = 1.5 V C / IF (low) % Rank BV ― 100 ― © 2019 4 2019-06-24 Toshiba Electronic Devices & Storage Corporation
