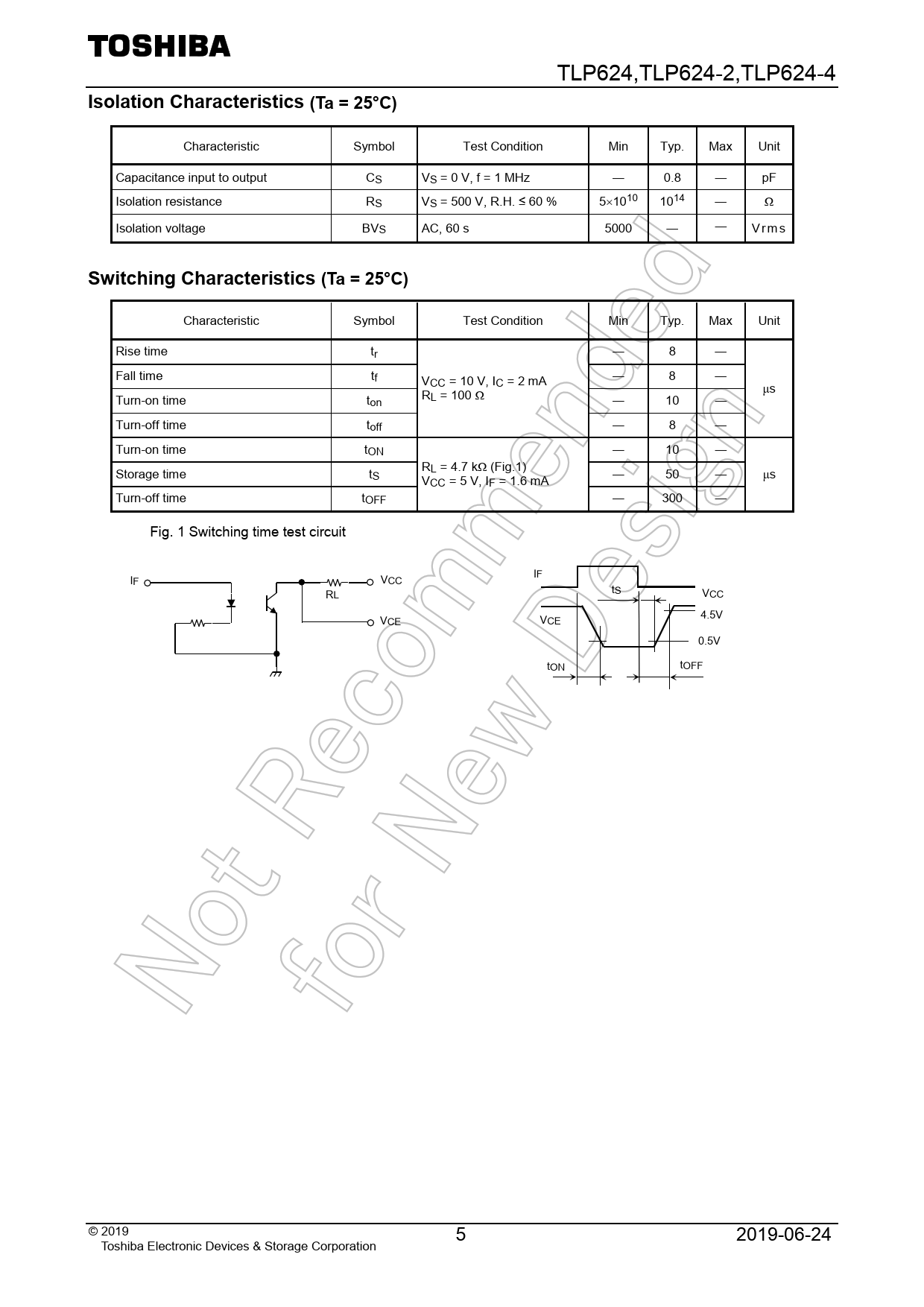

TLP624,TLP624-2,TLP624-4
Isolation Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit Capacitance input to output CS VS = 0 V, f = 1 MHz ― 0.8 ― pF Isolation resistance RS VS = 500 V, R.H. ≤ 60 % 5×1010 1014 ― Ω Isolation voltage BVS AC, 60 s 5000 ― ― Vrm s
Switching Characteristics (Ta = 25°C)
Characteristic Symbol Test Condition Min Typ. Max Unit Rise time tr ― 8 ― Fall time tf V ― 8 ― CC = 10 V, IC = 2 mA R μs L = 100 Ω Turn-on time ton ― 10 ― Turn-off time toff ― 8 ― Turn-on time tON ― 10 ― RL = 4.7 kΩ (Fig.1) Storage time tS V ― 50 ― μs CC = 5 V, IF = 1.6 mA Turn-off time tOFF ― 300 ― Fig. 1 Switching time test circuit I IF F VCC R L tS VCC V 4.5V CE VCE 0.5V tON tOFF © 2019 5 2019-06-24 Toshiba Electronic Devices & Storage Corporation
