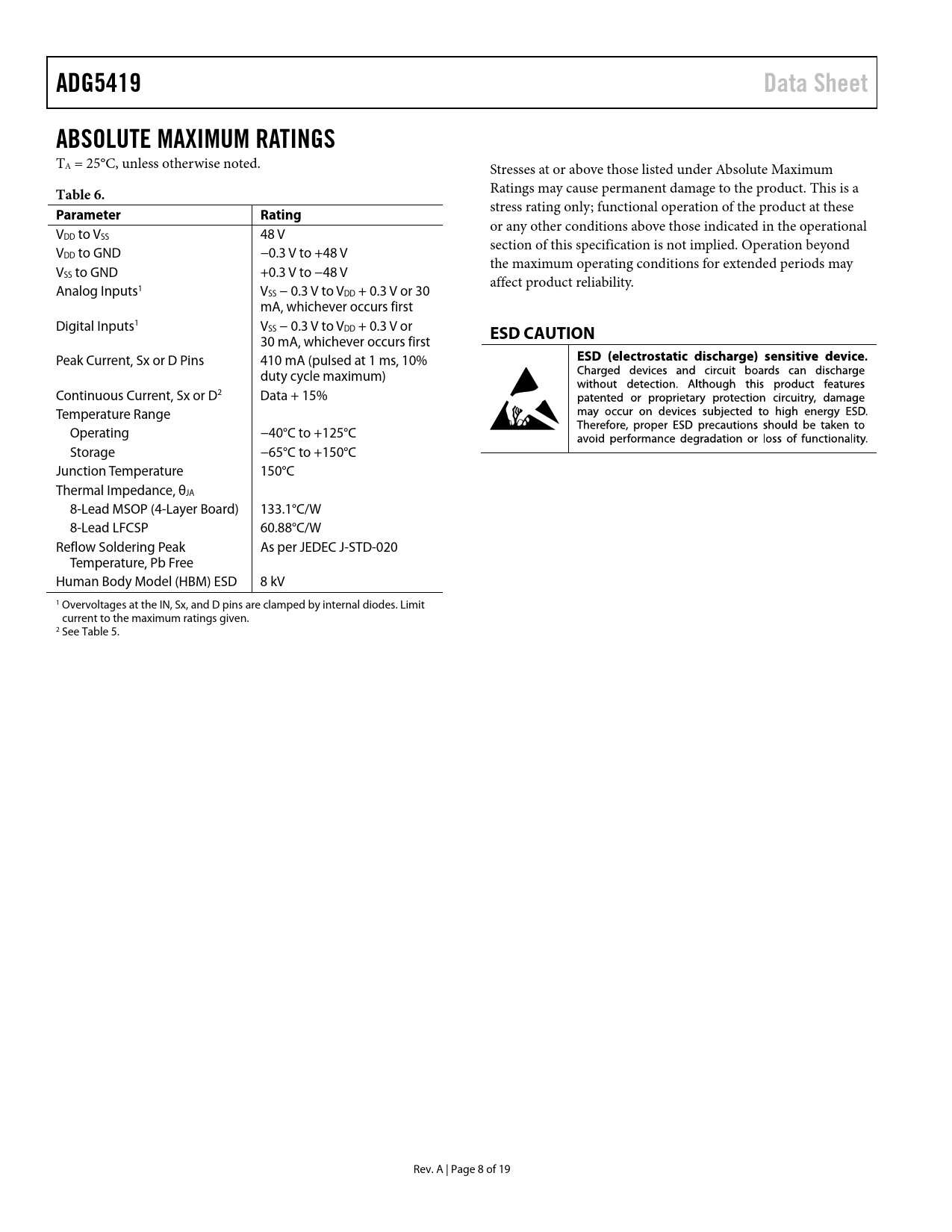

ADG5419. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本
link to page 7
ADG5419 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 6.
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 48 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +48 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −48 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V or
ESD CAUTION
30 mA, whichever occurs first Peak Current, Sx or D Pins 410 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current, Sx or D2 Data + 15% Temperature Range Operating −40°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θJA 8-Lead MSOP (4-Layer Board) 133.1°C/W 8-Lead LFCSP 60.88°C/W Reflow Soldering Peak As per JEDEC J-STD-020 Temperature, Pb Free Human Body Model (HBM) ESD 8 kV 1 Overvoltages at the IN, Sx, and D pins are clamped by internal diodes. Limit current to the maximum ratings given. 2 See Table 5. Rev. A | Page 8 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
