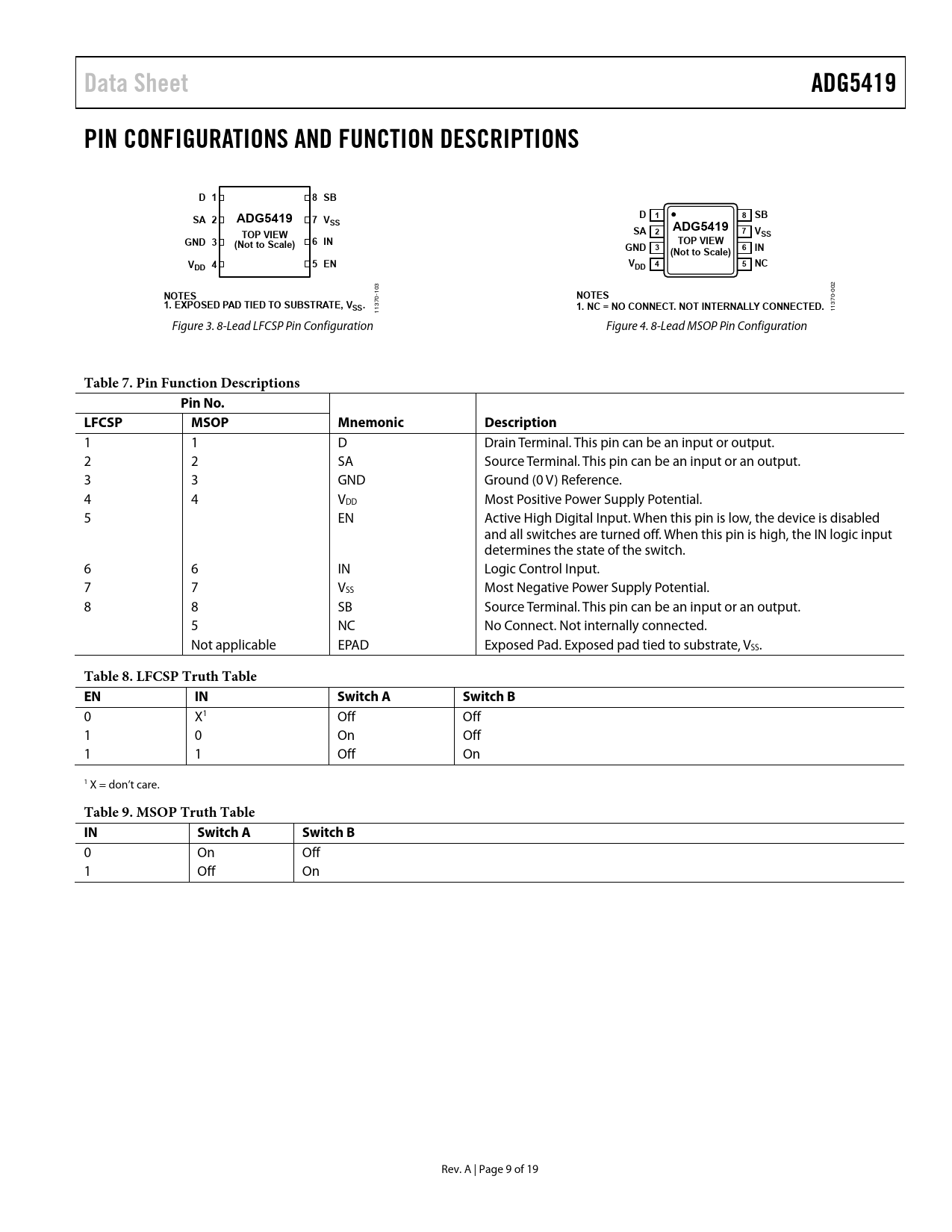

Data Sheet. ADG5419. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 8 SB. SA 2. 7 V. TOP VIEW. 7 VSS. GND 3. (Not to Scale). 6 IN. 5 EN
该数据表的模型线
文件文字版本
Data Sheet ADG5419 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS D 1 8 SB D 8 SB SA 2 ADG5419 7 V 1 SS ADG5419 TOP VIEW SA 2 7 VSS GND 3 (Not to Scale) 6 IN TOP VIEW GND 3 6 IN (Not to Scale) V 4 DD 5 EN VDD 4 5 NC
002
NOTES
103
NOTES 1. EXPOSED PAD TIED TO SUBSTRATE, VSS. 1. NC = NO CONNECT. NOT INTERNALLY CONNECTED.
11370- 11370- Figure 3. 8-Lead LFCSP Pin Configuration Figure 4. 8-Lead MSOP Pin Configuration
Table 7. Pin Function Descriptions Pin No. LFCSP MSOP Mnemonic Description
1 1 D Drain Terminal. This pin can be an input or output. 2 2 SA Source Terminal. This pin can be an input or an output. 3 3 GND Ground (0 V) Reference. 4 4 VDD Most Positive Power Supply Potential. 5 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are turned off. When this pin is high, the IN logic input determines the state of the switch. 6 6 IN Logic Control Input. 7 7 VSS Most Negative Power Supply Potential. 8 8 SB Source Terminal. This pin can be an input or an output. 5 NC No Connect. Not internally connected. Not applicable EPAD Exposed Pad. Exposed pad tied to substrate, VSS.
Table 8. LFCSP Truth Table EN IN Switch A Switch B
0 X1 Off Off 1 0 On Off 1 1 Off On 1 X = don’t care.
Table 9. MSOP Truth Table IN Switch A Switch B
0 On Off 1 Off On Rev. A | Page 9 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
