ADG5208/ADG5209. Data Sheet. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments. 36 V SINGLE SUPPLY
该数据表的模型线
文件文字版本
link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16

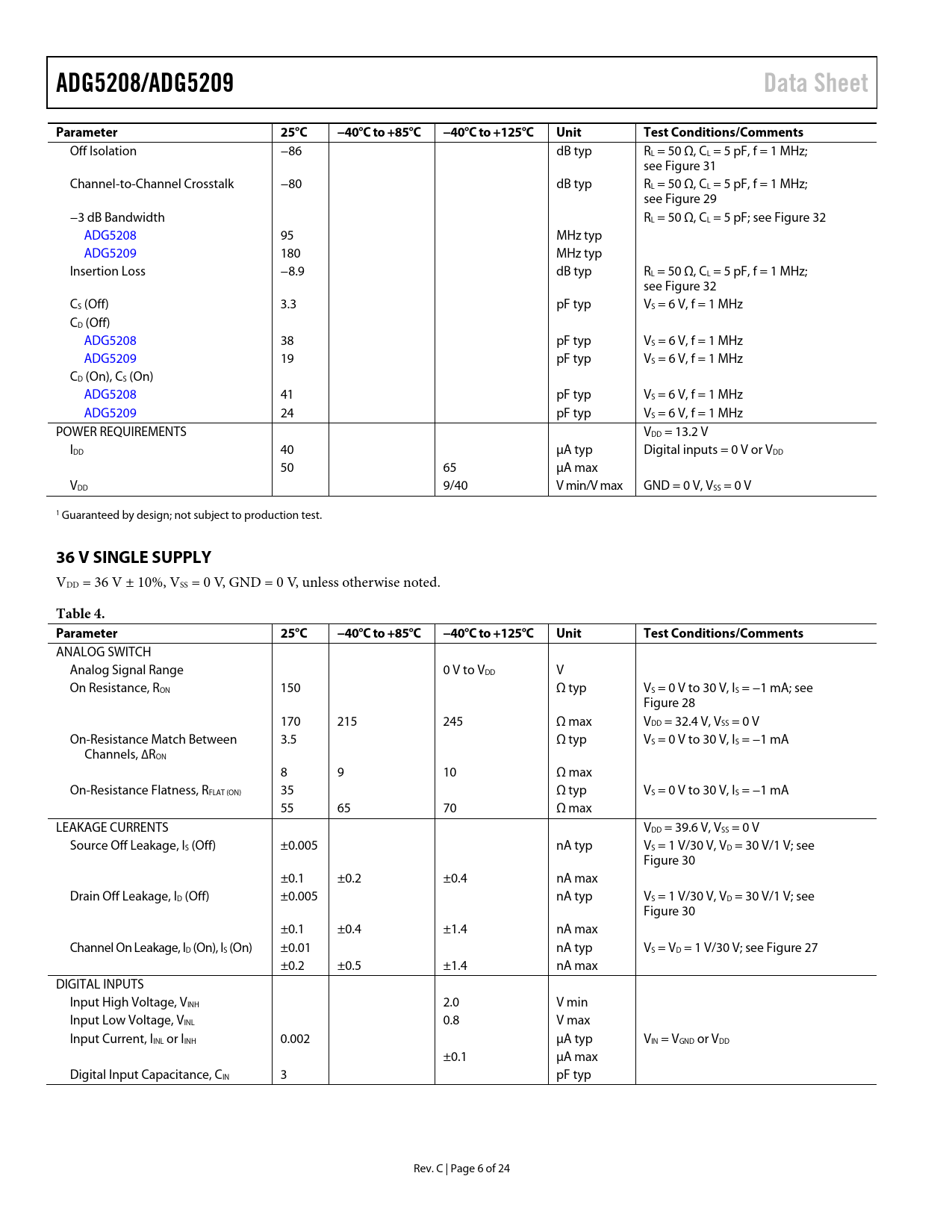

ADG5208/ADG5209 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Off Isolation −86 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 32 ADG5208 95 MHz typ ADG5209 180 MHz typ Insertion Loss −8.9 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 32 CS (Off) 3.3 pF typ VS = 6 V, f = 1 MHz CD (Off) ADG5208 38 pF typ VS = 6 V, f = 1 MHz ADG5209 19 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) ADG5208 41 pF typ VS = 6 V, f = 1 MHz ADG5209 24 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 40 µA typ Digital inputs = 0 V or VDD 50 65 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 150 Ω typ VS = 0 V to 30 V, IS = −1 mA; see Figure 28 170 215 245 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between 3.5 Ω typ VS = 0 V to 30 V, IS = −1 mA Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT (ON) 35 Ω typ VS = 0 V to 30 V, IS = −1 mA 55 65 70 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.005 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 30 ±0.1 ±0.2 ±0.4 nA max Drain Off Leakage, ID (Off) ±0.005 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 30 ±0.1 ±0.4 ±1.4 nA max Channel On Leakage, ID (On), IS (On) ±0.01 nA typ VS = VD = 1 V/30 V; see Figure 27 ±0.2 ±0.5 ±1.4 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ Rev. C | Page 6 of 24 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
