Data Sheet. ADG5236. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. IN1. 16 NC. S1A. 15 NC. 14 NC. D1 1. 12 EN. S1B. 13 VDD. TOP VIEW. S1B 2. 11 VDD
该数据表的模型线
文件文字版本
link to page 9 link to page 9 link to page 9

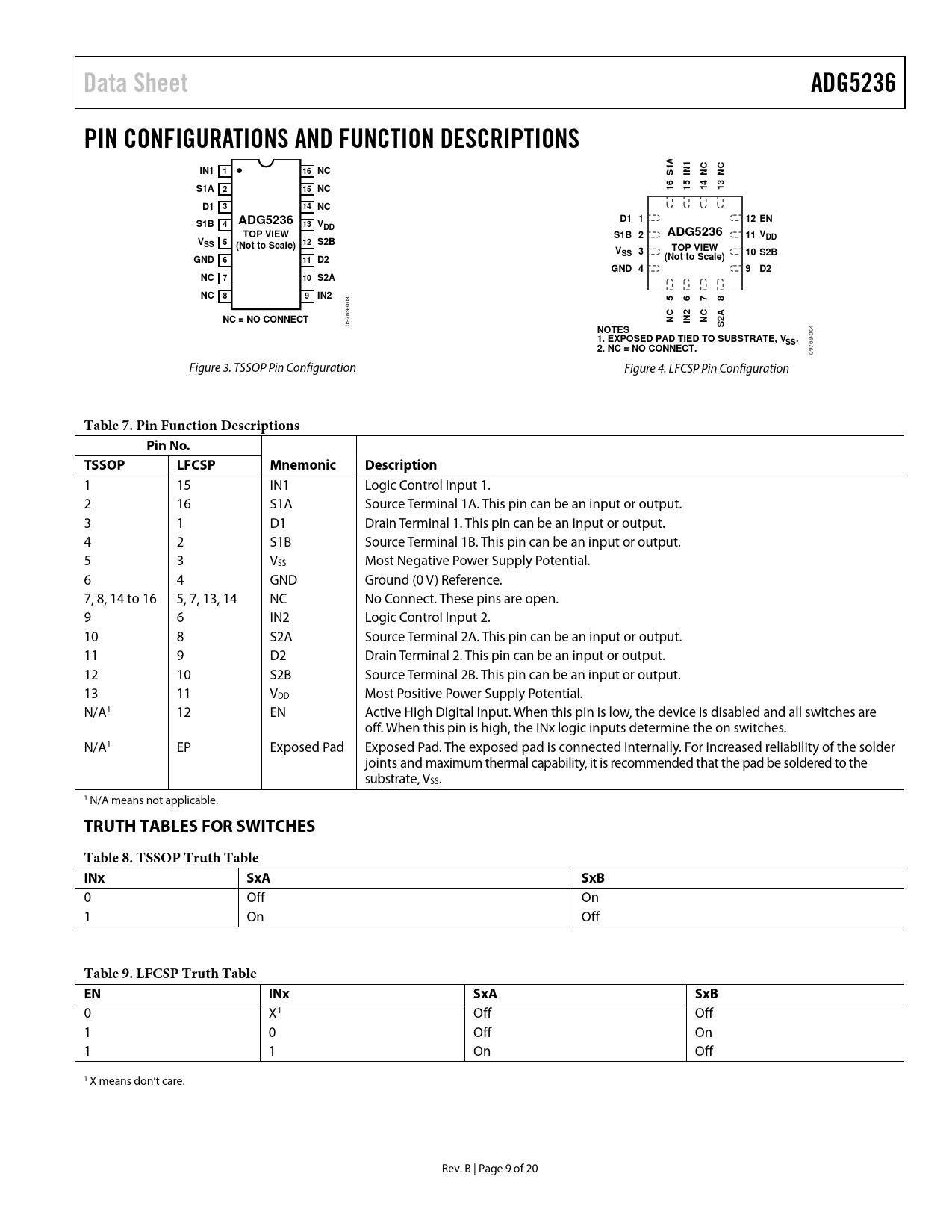

Data Sheet ADG5236 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS 1A IN1 1 16 NC N1 S I NC NC S1A 2 15 NC 16 15 14 13 D1 3 14 NC D1 1 12 EN S1B ADG5236 4 13 VDD TOP VIEW S1B 2 ADG5236 11 VDD VSS 5 12 S2B (Not to Scale) V TOP VIEW SS 3 10 S2B GND 6 11 D2 (Not to Scale) GND 4 9 D2 NC 7 10 S2A NC 8 9 IN2 5 6 7 8
003
NC = NO CONNECT NC N2I NC 2A
09769-
S NOTES
004
1. EXPOSED PAD TIED TO SUBSTRATE, VSS. 2. NC = NO CONNECT.
09769- Figure 3. TSSOP Pin Configuration Figure 4. LFCSP Pin Configuration
Table 7. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 15 IN1 Logic Control Input 1. 2 16 S1A Source Terminal 1A. This pin can be an input or output. 3 1 D1 Drain Terminal 1. This pin can be an input or output. 4 2 S1B Source Terminal 1B. This pin can be an input or output. 5 3 VSS Most Negative Power Supply Potential. 6 4 GND Ground (0 V) Reference. 7, 8, 14 to 16 5, 7, 13, 14 NC No Connect. These pins are open. 9 6 IN2 Logic Control Input 2. 10 8 S2A Source Terminal 2A. This pin can be an input or output. 11 9 D2 Drain Terminal 2. This pin can be an input or output. 12 10 S2B Source Terminal 2B. This pin can be an input or output. 13 11 VDD Most Positive Power Supply Potential. N/A1 12 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are off. When this pin is high, the INx logic inputs determine the on switches. N/A1 EP Exposed Pad Exposed Pad. The exposed pad is connected internally. For increased reliability of the solder joints and maximum thermal capability, it is recommended that the pad be soldered to the substrate, VSS. 1 N/A means not applicable.
TRUTH TABLES FOR SWITCHES Table 8. TSSOP Truth Table INx SxA SxB
0 Off On 1 On Off
Table 9. LFCSP Truth Table EN INx SxA SxB
0 X1 Off Off 1 0 Off On 1 1 On Off 1 X means don’t care. Rev. B | Page 9 of 20 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, SxA, SxB, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables for Switches Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
