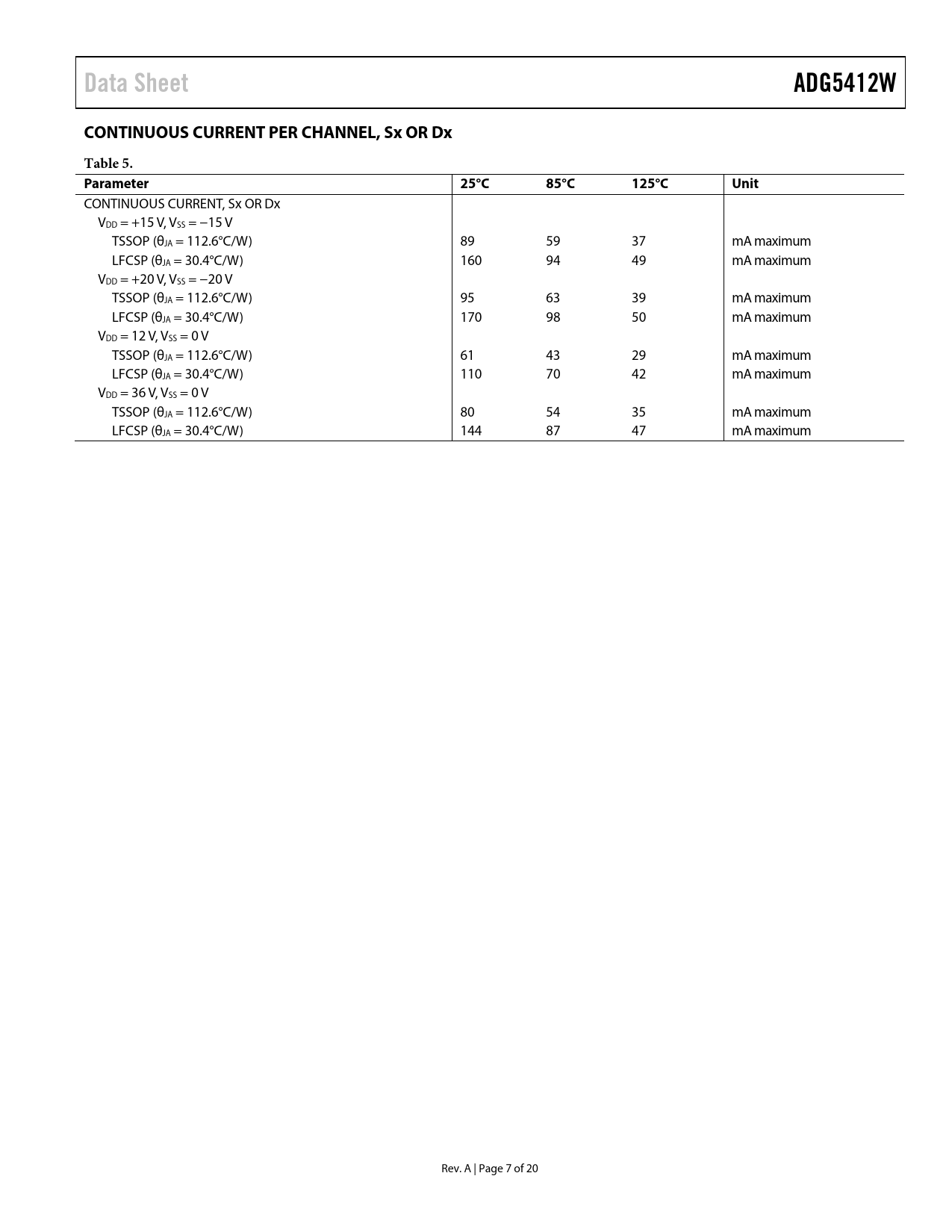

Data SheetADG5412WCONTINUOUS CURRENT PER CHANNEL, Sx OR DxTable 5. Parameter25°C85°C125°CUnit CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 89 59 37 mA maximum LFCSP (θJA = 30.4°C/W) 160 94 49 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 95 63 39 mA maximum LFCSP (θJA = 30.4°C/W) 170 98 50 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 61 43 29 mA maximum LFCSP (θJA = 30.4°C/W) 110 70 42 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 80 54 35 mA maximum LFCSP (θJA = 30.4°C/W) 144 87 47 mA maximum Rev. A | Page 7 of 20 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Trench Isolation Outline Dimensions Ordering Guide Automotive Products
