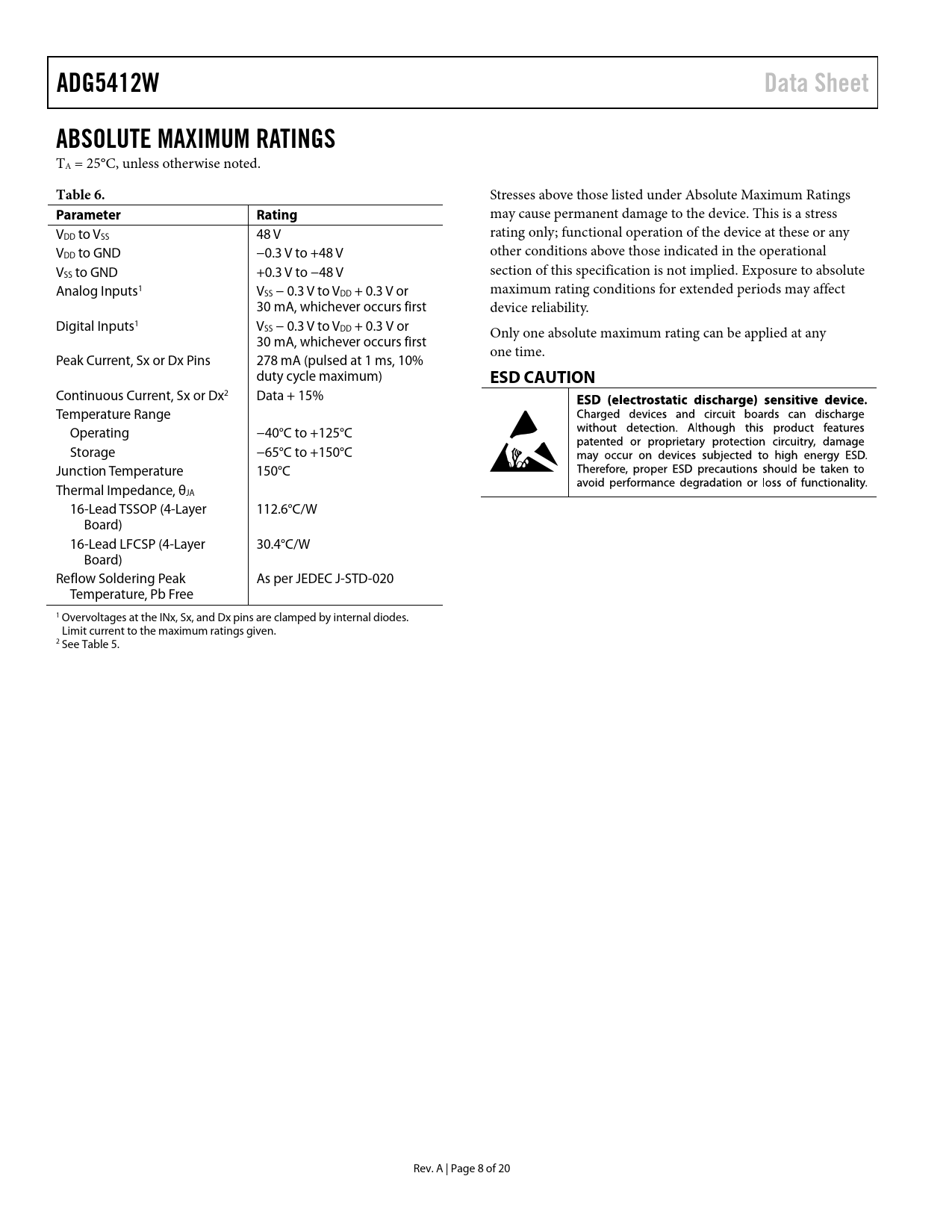

ADG5412W Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 6.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VDD to VSS 48 V rating only; functional operation of the device at these or any VDD to GND −0.3 V to +48 V other conditions above those indicated in the operational VSS to GND +0.3 V to −48 V section of this specification is not implied. Exposure to absolute Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or maximum rating conditions for extended periods may affect 30 mA, whichever occurs first device reliability. Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V or Only one absolute maximum rating can be applied at any 30 mA, whichever occurs first one time. Peak Current, Sx or Dx Pins 278 mA (pulsed at 1 ms, 10% duty cycle maximum)
ESD CAUTION
Continuous Current, Sx or Dx2 Data + 15% Temperature Range Operating −40°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θ JA 16-Lead TSSOP (4-Layer 112.6°C/W Board) 16-Lead LFCSP (4-Layer 30.4°C/W Board) Reflow Soldering Peak As per JEDEC J-STD-020 Temperature, Pb Free 1 Overvoltages at the INx, Sx, and Dx pins are clamped by internal diodes. Limit current to the maximum ratings given. 2 See Table 5. Rev. A | Page 8 of 20 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Trench Isolation Outline Dimensions Ordering Guide Automotive Products
