| 制造商 | Analog Devices |
| 描述 | Low Capacitance, Low Charge Injection, ±15 V/+12 V iCMOS SPST in SOT-23 |
| 页数 / 页 | 14 / 4 — ADG1201. Data Sheet. −40°C to. Parameter. 25°C. +85°C. +125°C. Unit. Test … |
| 修订版 | A |
| 文件格式/大小 | PDF / 418 Kb |
| 文件语言 | 英语 |

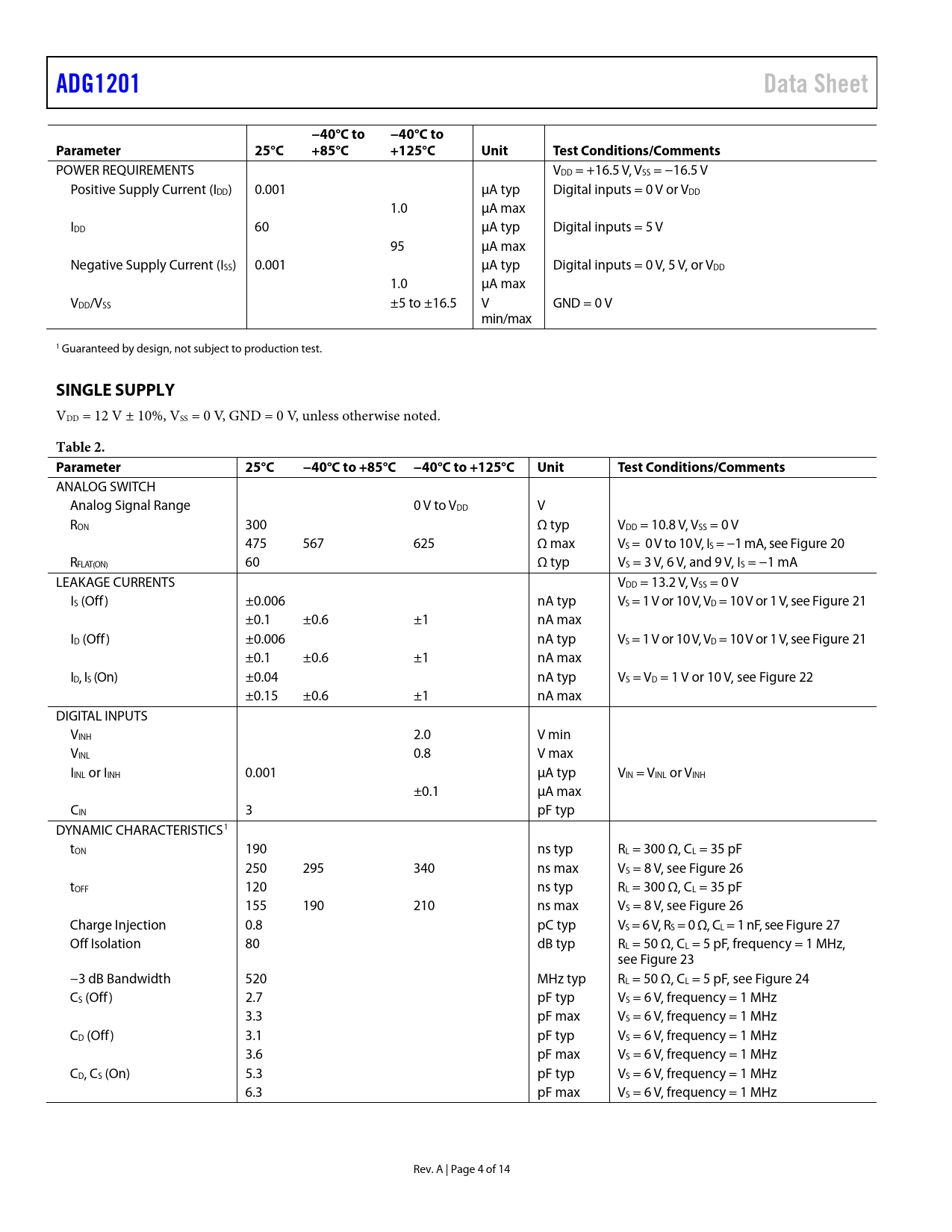

ADG1201. Data Sheet. −40°C to. Parameter. 25°C. +85°C. +125°C. Unit. Test Conditions/Comments. SINGLE SUPPLY. Table 2. Parameter
该数据表的模型线
文件文字版本
link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12 link to page 11 link to page 11 link to page 5
ADG1201 Data Sheet −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V Positive Supply Current (IDD) 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 60 µA typ Digital inputs = 5 V 95 µA max Negative Supply Current (ISS) 0.001 µA typ Digital inputs = 0 V, 5 V, or VDD 1.0 µA max VDD/VSS ±5 to ±16.5 V GND = 0 V min/max 1 Guaranteed by design, not subject to production test.
SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V RON 300 Ω typ VDD = 10.8 V, VSS = 0 V 475 567 625 Ω max VS = 0 V to 10 V, IS = −1 mA, see Figure 20 RFLAT(ON) 60 Ω typ VS = 3 V, 6 V, and 9 V, IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V IS (Off) ±0.006 nA typ VS = 1 V or 10 V, VD = 10 V or 1 V, see Figure 21 ±0.1 ±0.6 ±1 nA max ID (Off) ±0.006 nA typ VS = 1 V or 10 V, VD = 10 V or 1 V, see Figure 21 ±0.1 ±0.6 ±1 nA max ID, IS (On) ±0.04 nA typ VS = VD = 1 V or 10 V, see Figure 22 ±0.15 ±0.6 ±1 nA max DIGITAL INPUTS VINH 2.0 V min VINL 0.8 V max IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.1 µA max CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 190 ns typ RL = 300 Ω, CL = 35 pF 250 295 340 ns max VS = 8 V, see Figure 26 tOFF 120 ns typ RL = 300 Ω, CL = 35 pF 155 190 210 ns max VS = 8 V, see Figure 26 Charge Injection 0.8 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 27 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, frequency = 1 MHz, see Figure 23 −3 dB Bandwidth 520 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 24 CS (Off) 2.7 pF typ VS = 6 V, frequency = 1 MHz 3.3 pF max VS = 6 V, frequency = 1 MHz CD (Off) 3.1 pF typ VS = 6 V, frequency = 1 MHz 3.6 pF max VS = 6 V, frequency = 1 MHz CD, CS (On) 5.3 pF typ VS = 6 V, frequency = 1 MHz 6.3 pF max VS = 6 V, frequency = 1 MHz Rev. A | Page 4 of 14 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
