| 制造商 | Analog Devices |
| 描述 | Low Capacitance, Low Charge Injection, ±15 V/12 V iCMOS SPDT in SOT-23 |
| 页数 / 页 | 16 / 5 — ADG1219. Version1. Parameters. 25°C. −40°C to +85°C. −40°C to +125°C … |
| 修订版 | A |
| 文件格式/大小 | PDF / 391 Kb |
| 文件语言 | 英语 |
ADG1219. Version1. Parameters. 25°C. −40°C to +85°C. −40°C to +125°C Unit. Test. Conditions/Comments
该数据表的模型线
文件文字版本
link to page 5

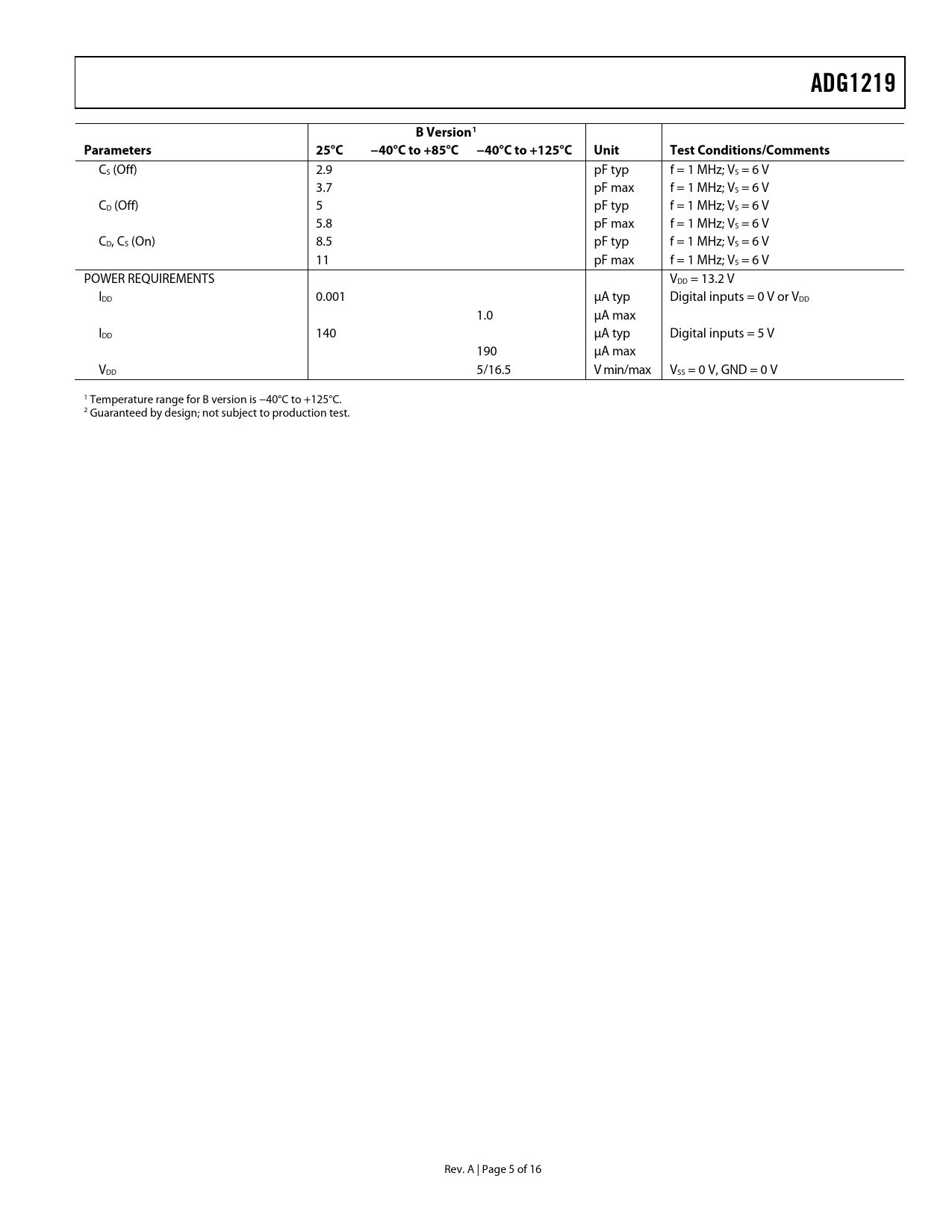

ADG1219 B Version1 Parameters 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CS (Off) 2.9 pF typ f = 1 MHz; VS = 6 V 3.7 pF max f = 1 MHz; VS = 6 V CD (Off) 5 pF typ f = 1 MHz; VS = 6 V 5.8 pF max f = 1 MHz; VS = 6 V CD, CS (On) 8.5 pF typ f = 1 MHz; VS = 6 V 11 pF max f = 1 MHz; VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 140 μA typ Digital inputs = 5 V 190 μA max VDD 5/16.5 V min/max VSS = 0 V, GND = 0 V 1 Temperature range for B version is −40°C to +125°C. 2 Guaranteed by design; not subject to production test. Rev. A | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
ADG1219 B Version1 Parameters 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CS (Off) 2.9 pF typ f = 1 MHz; VS = 6 V 3.7 pF max f = 1 MHz; VS = 6 V CD (Off) 5 pF typ f = 1 MHz; VS = 6 V 5.8 pF max f = 1 MHz; VS = 6 V CD, CS (On) 8.5 pF typ f = 1 MHz; VS = 6 V 11 pF max f = 1 MHz; VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 140 μA typ Digital inputs = 5 V 190 μA max VDD 5/16.5 V min/max VSS = 0 V, GND = 0 V 1 Temperature range for B version is −40°C to +125°C. 2 Guaranteed by design; not subject to production test. Rev. A | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
