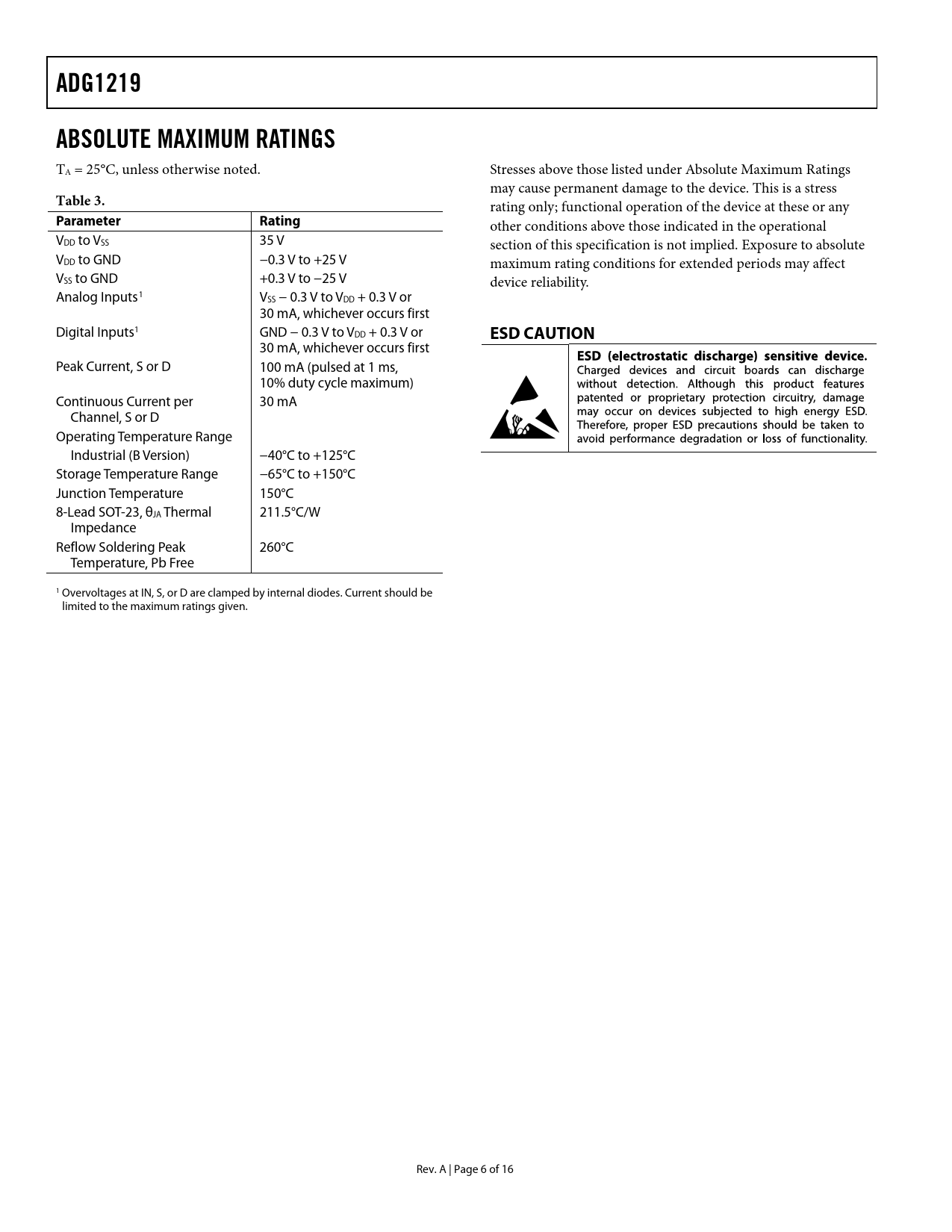

ADG1219 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 3.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Exposure to absolute VDD to GND −0.3 V to +25 V maximum rating conditions for extended periods may affect VSS to GND +0.3 V to −25 V device reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or
ESD CAUTION
30 mA, whichever occurs first Peak Current, S or D 100 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current per 30 mA Channel, S or D Operating Temperature Range Industrial (B Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 8-Lead SOT-23, θJA Thermal 211.5°C/W Impedance Reflow Soldering Peak 260°C Temperature, Pb Free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. A | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
