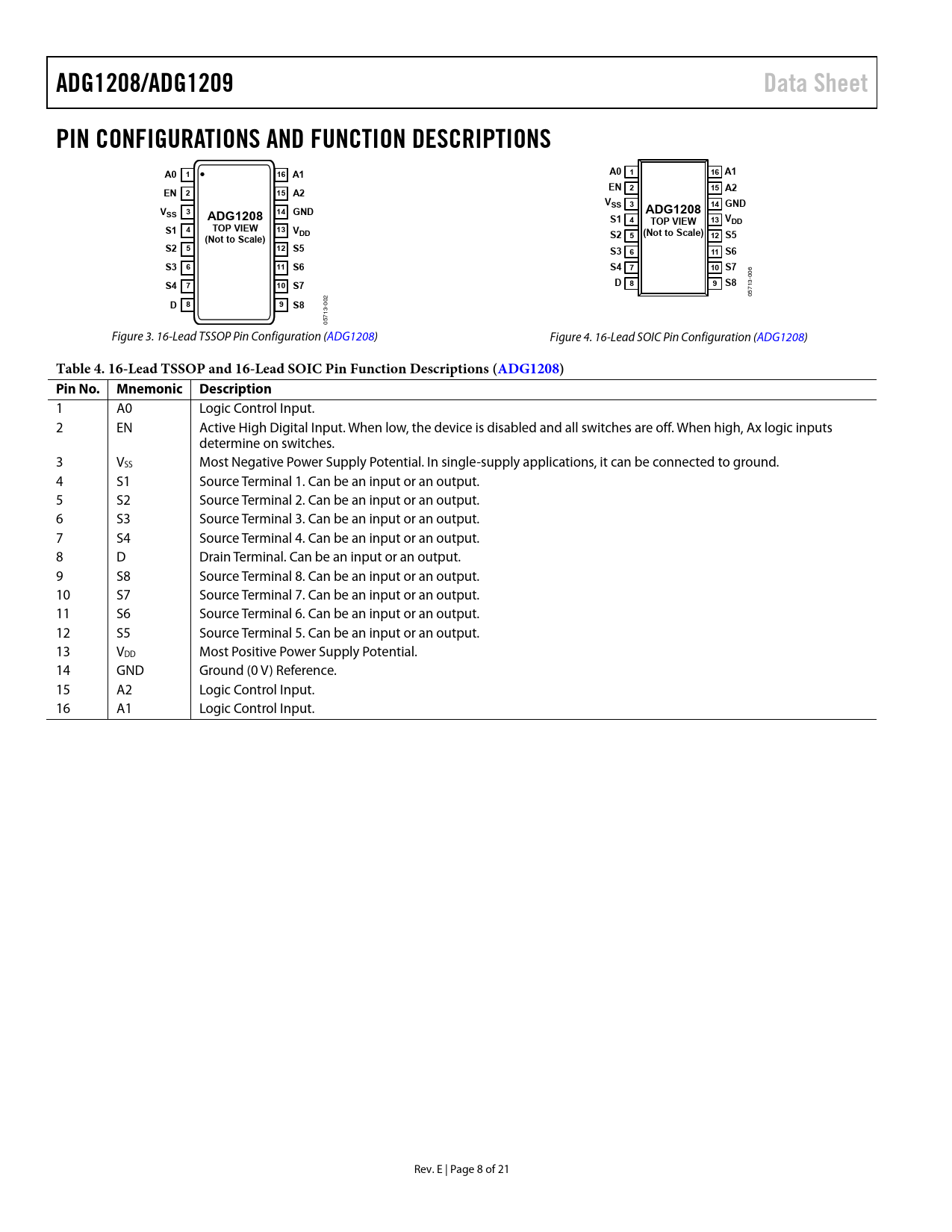

ADG1208/ADG1209. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. A0 1. 16 A1. EN 2. 15 A2. VSS 3. 14 GND. ADG1208. GND. S1 4. 13 V
该数据表的模型线
文件文字版本
ADG1208/ADG1209 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A0 1 16 A1 A0 1 16 A1 EN 2 15 A2 EN 2 15 A2 VSS 3 14 GND V 3 14 ADG1208 SS GND ADG1208 S1 4 13 V TOP VIEW DD S1 4 TOP VIEW 13 VDD (Not to Scale) (Not to Scale) S2 5 12 S5 S2 5 12 S5 S3 6 11 S6 S3 6 11 S6 S4 7 10 S7
-006
S4 7 10 S7 D 8 9 S8
5713 2 0
D 8 9 S8
-00 13 57 0 Figure 3. 16-Lead TSSOP Pin Configuration (ADG1208) Figure 4. 16-Lead SOIC Pin Configuration (ADG1208)
Table 4. 16-Lead TSSOP and 16-Lead SOIC Pin Function Descriptions (ADG1208) Pin No. Mnemonic Description
1 A0 Logic Control Input. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 VSS Most Negative Power Supply Potential. In single-supply applications, it can be connected to ground. 4 S1 Source Terminal 1. Can be an input or an output. 5 S2 Source Terminal 2. Can be an input or an output. 6 S3 Source Terminal 3. Can be an input or an output. 7 S4 Source Terminal 4. Can be an input or an output. 8 D Drain Terminal. Can be an input or an output. 9 S8 Source Terminal 8. Can be an input or an output. 10 S7 Source Terminal 7. Can be an input or an output. 11 S6 Source Terminal 6. Can be an input or an output. 12 S5 Source Terminal 5. Can be an input or an output. 13 VDD Most Positive Power Supply Potential. 14 GND Ground (0 V) Reference. 15 A2 Logic Control Input. 16 A1 Logic Control Input. Rev. E | Page 8 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
-006
S4 7 10 S7 D 8 9 S8
5713 2 0
D 8 9 S8
-00 13 57 0 Figure 3. 16-Lead TSSOP Pin Configuration (ADG1208) Figure 4. 16-Lead SOIC Pin Configuration (ADG1208)
Table 4. 16-Lead TSSOP and 16-Lead SOIC Pin Function Descriptions (ADG1208) Pin No. Mnemonic Description
1 A0 Logic Control Input. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 VSS Most Negative Power Supply Potential. In single-supply applications, it can be connected to ground. 4 S1 Source Terminal 1. Can be an input or an output. 5 S2 Source Terminal 2. Can be an input or an output. 6 S3 Source Terminal 3. Can be an input or an output. 7 S4 Source Terminal 4. Can be an input or an output. 8 D Drain Terminal. Can be an input or an output. 9 S8 Source Terminal 8. Can be an input or an output. 10 S7 Source Terminal 7. Can be an input or an output. 11 S6 Source Terminal 6. Can be an input or an output. 12 S5 Source Terminal 5. Can be an input or an output. 13 VDD Most Positive Power Supply Potential. 14 GND Ground (0 V) Reference. 15 A2 Logic Control Input. 16 A1 Logic Control Input. Rev. E | Page 8 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
