ADG1211/ADG1212/ADG1213. Data Sheet. Y Version1. −40°C to. Parameter. 25°C. +85°C. +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本

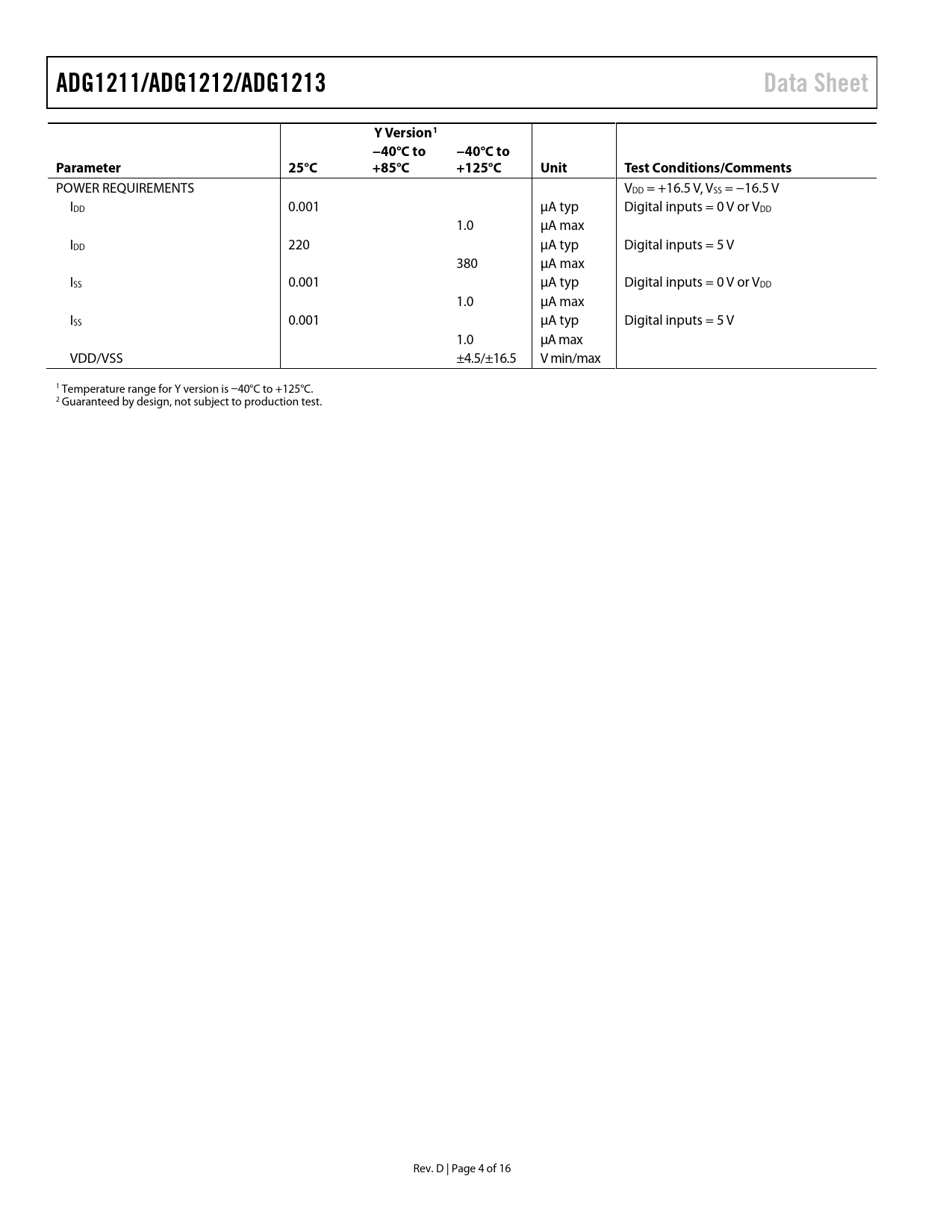

ADG1211/ADG1212/ADG1213 Data Sheet Y Version1 −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 220 µA typ Digital inputs = 5 V 380 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max ISS 0.001 µA typ Digital inputs = 5 V 1.0 µA max VDD/VSS ±4.5/±16.5 V min/max 1 Temperature range for Y version is −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
