Datasheet ADG621 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | CMOS, ±5 V/+5 V, 4 Ω Dual SPST Switches |
| 页数 / 页 | 12 / 1 — CMOS, ±5 V/+5 V,. 4 Ω Dual SPST Switches. Data Sheet. ADG621. FEATURES. … |
| 修订版 | C |
| 文件格式/大小 | PDF / 242 Kb |
| 文件语言 | 英语 |

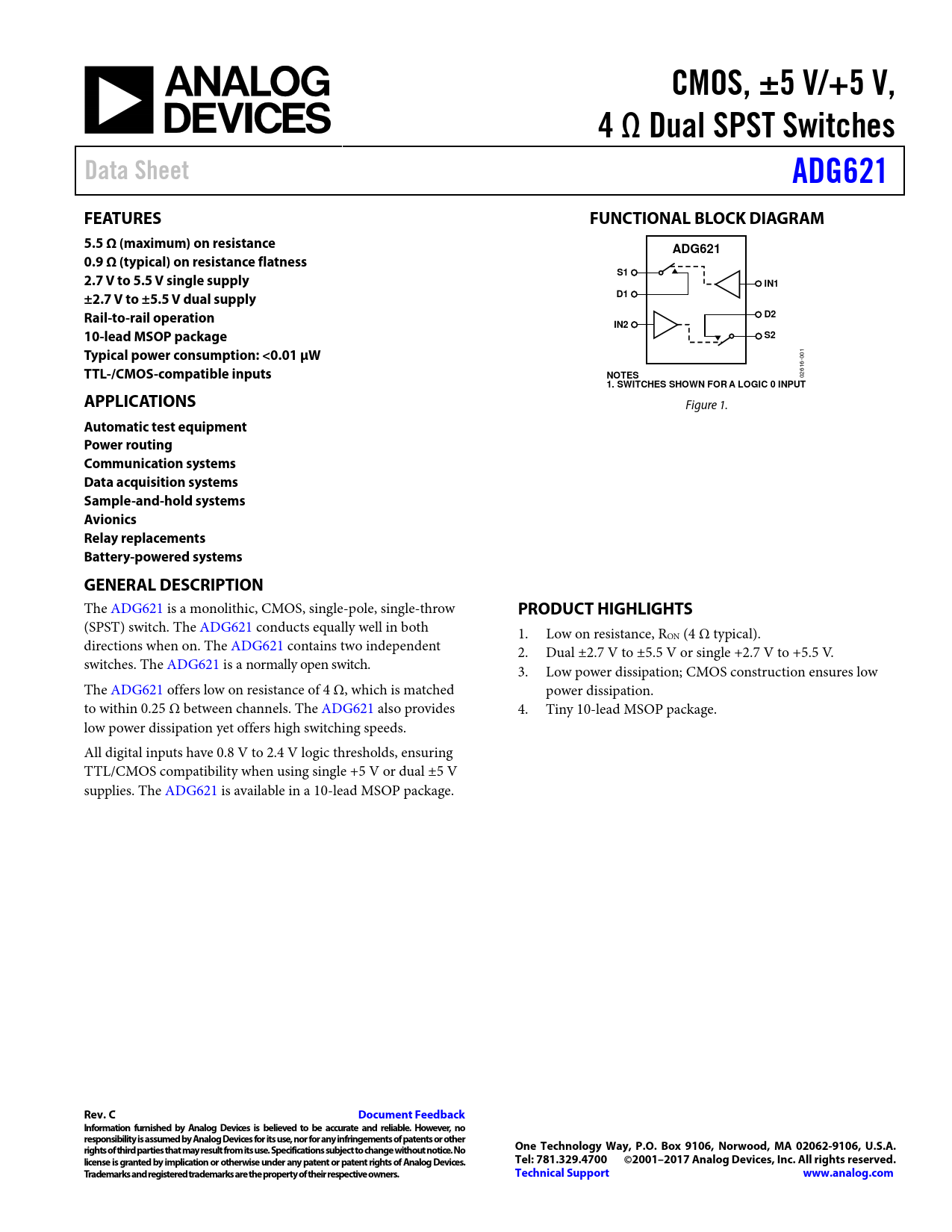

CMOS, ±5 V/+5 V,. 4 Ω Dual SPST Switches. Data Sheet. ADG621. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 5.5 Ω (maximum) on resistance
该数据表的模型线
文件文字版本
CMOS, ±5 V/+5 V, 4 Ω Dual SPST Switches Data Sheet ADG621 FEATURES FUNCTIONAL BLOCK DIAGRAM 5.5 Ω (maximum) on resistance ADG621 0.9 Ω (typical) on resistance flatness 2.7 V to 5.5 V single supply S1 IN1 ±2.7 V to ±5.5 V dual supply D1 Rail-to-rail operation D2 IN2 10-lead MSOP package S2 Typical power consumption: <0.01 µW
001
TTL-/CMOS-compatible inputs NOTES
02616-
1. SWITCHES SHOWN FOR A LOGIC 0 INPUT APPLICATIONS
Figure 1.
Automatic test equipment Power routing Communication systems Data acquisition systems Sample-and-hold systems Avionics Relay replacements Battery-powered systems GENERAL DESCRIPTION
The ADG621 is a monolithic, CMOS, single-pole, single-throw
PRODUCT HIGHLIGHTS
(SPST) switch. The ADG621 conducts equally well in both 1. Low on resistance, RON (4 Ω typical). directions when on. The ADG621 contains two independent 2. Dual ±2.7 V to ±5.5 V or single +2.7 V to +5.5 V. switches. The ADG621 is a normal y open switch. 3. Low power dissipation; CMOS construction ensures low The ADG621 offers low on resistance of 4 Ω, which is matched power dissipation. to within 0.25 Ω between channels. The ADG621 also provides 4. Tiny 10-lead MSOP package. low power dissipation yet offers high switching speeds. All digital inputs have 0.8 V to 2.4 V logic thresholds, ensuring TTL/CMOS compatibility when using single +5 V or dual ±5 V supplies. The ADG621 is available in a 10-lead MSOP package.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2001–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
