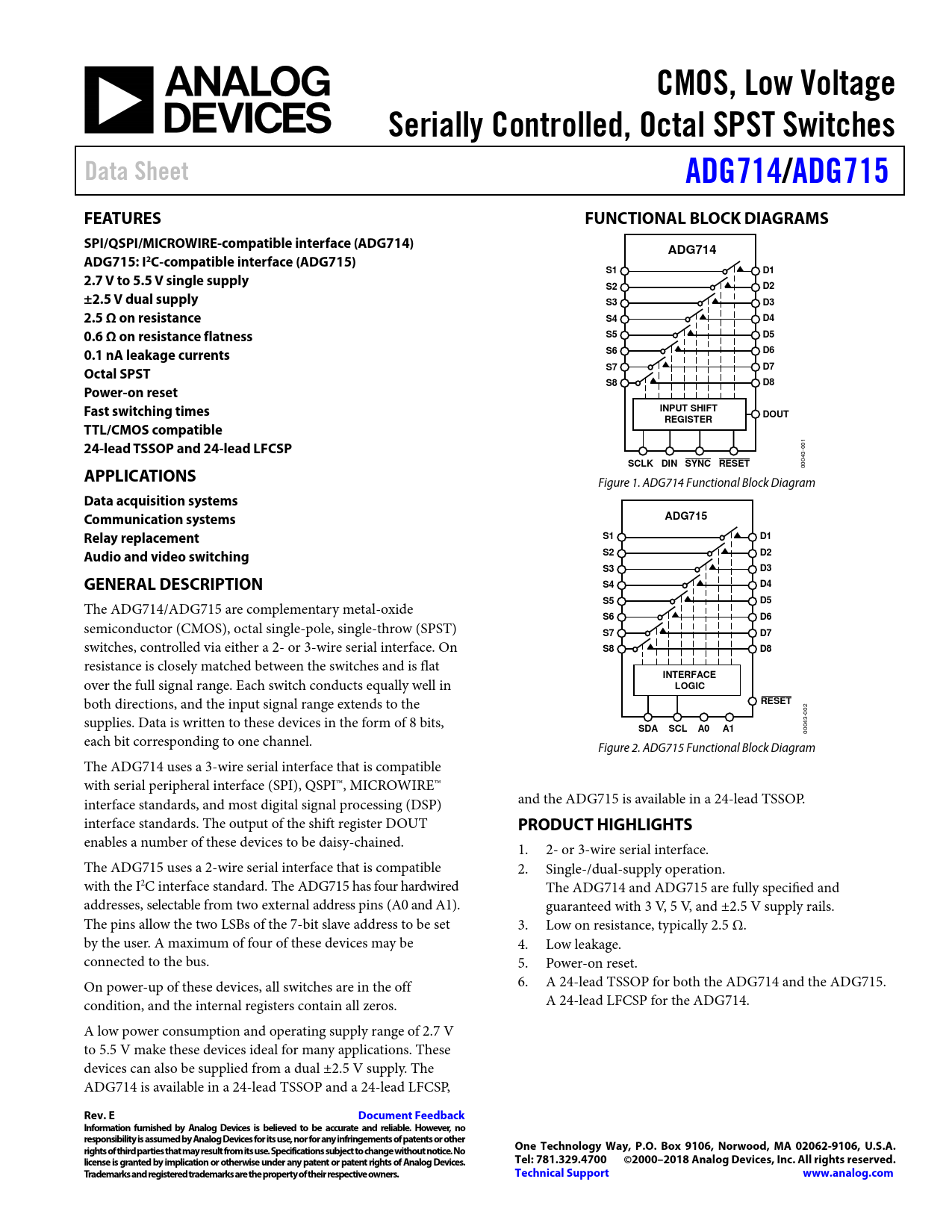

CMOS, Low Voltage. Serially Controlled, Octal SPST Switches. Data Sheet. ADG714/. ADG715. FEATURES. FUNCTIONAL BLOCK DIAGRAMS
该数据表的模型线
文件文字版本
CMOS, Low Voltage Serially Controlled, Octal SPST Switches Data Sheet ADG714/ ADG715 FEATURES FUNCTIONAL BLOCK DIAGRAMS SPI/QSPI/MICROWIRE-compatible interface (ADG714) ADG714 ADG715: I2C-compatible interface (ADG715) S1 D1 2.7 V to 5.5 V single supply S2 D2 ±2.5 V dual supply S3 D3 2.5 Ω on resistance S4 D4 0.6 Ω on resistance flatness S5 D5 0.1 nA leakage currents S6 D6 Octal SPST S7 D7 S8 D8 Power-on reset Fast switching times INPUT SHIFT DOUT REGISTER TTL/CMOS compatible 24-lead TSSOP and 24-lead LFCSP
001
SCLK DIN SYNC RESET APPLICATIONS
00043- Figure 1. ADG714 Functional Block Diagram
Data acquisition systems Communication systems ADG715 Relay replacement S1 D1 Audio and video switching S2 D2 S3 D3 GENERAL DESCRIPTION S4 D4
The ADG714/ADG715 are complementary metal-oxide
S5 D5 S6 D6
semiconductor (CMOS), octal single-pole, single-throw (SPST)
S7 D7
switches, controlled via either a 2- or 3-wire serial interface. On
S8 D8
resistance is closely matched between the switches and is flat
INTERFACE
over the full signal range. Each switch conducts equally well in
LOGIC
both directions, and the input signal range extends to the
RESET
002 supplies. Data is written to these devices in the form of 8 bits,
SDA SCL A0 A1
00043- each bit corresponding to one channel. Figure 2. ADG715 Functional Block Diagram The ADG714 uses a 3-wire serial interface that is compatible with serial peripheral interface (SPI), QSPI™, MICROWIRE™ interface standards, and most digital signal processing (DSP) and the ADG715 is available in a 24-lead TSSOP. interface standards. The output of the shift register DOUT
PRODUCT HIGHLIGHTS
enables a number of these devices to be daisy-chained. 1. 2- or 3-wire serial interface. The ADG715 uses a 2-wire serial interface that is compatible 2. Single-/dual-supply operation. with the I2C interface standard. The ADG715 has four hardwired The ADG714 and ADG715 are fully specified and addresses, selectable from two external address pins (A0 and A1). guaranteed with 3 V, 5 V, and ±2.5 V supply rails. The pins allow the two LSBs of the 7-bit slave address to be set 3. Low on resistance, typically 2.5 Ω. by the user. A maximum of four of these devices may be 4. Low leakage. connected to the bus. 5. Power-on reset. On power-up of these devices, all switches are in the off 6. A 24-lead TSSOP for both the ADG714 and the ADG715. condition, and the internal registers contain all zeros. A 24-lead LFCSP for the ADG714. A low power consumption and operating supply range of 2.7 V to 5.5 V make these devices ideal for many applications. These devices can also be supplied from a dual ±2.5 V supply. The ADG714 is available in a 24-lead TSSOP and a 24-lead LFCSP,
