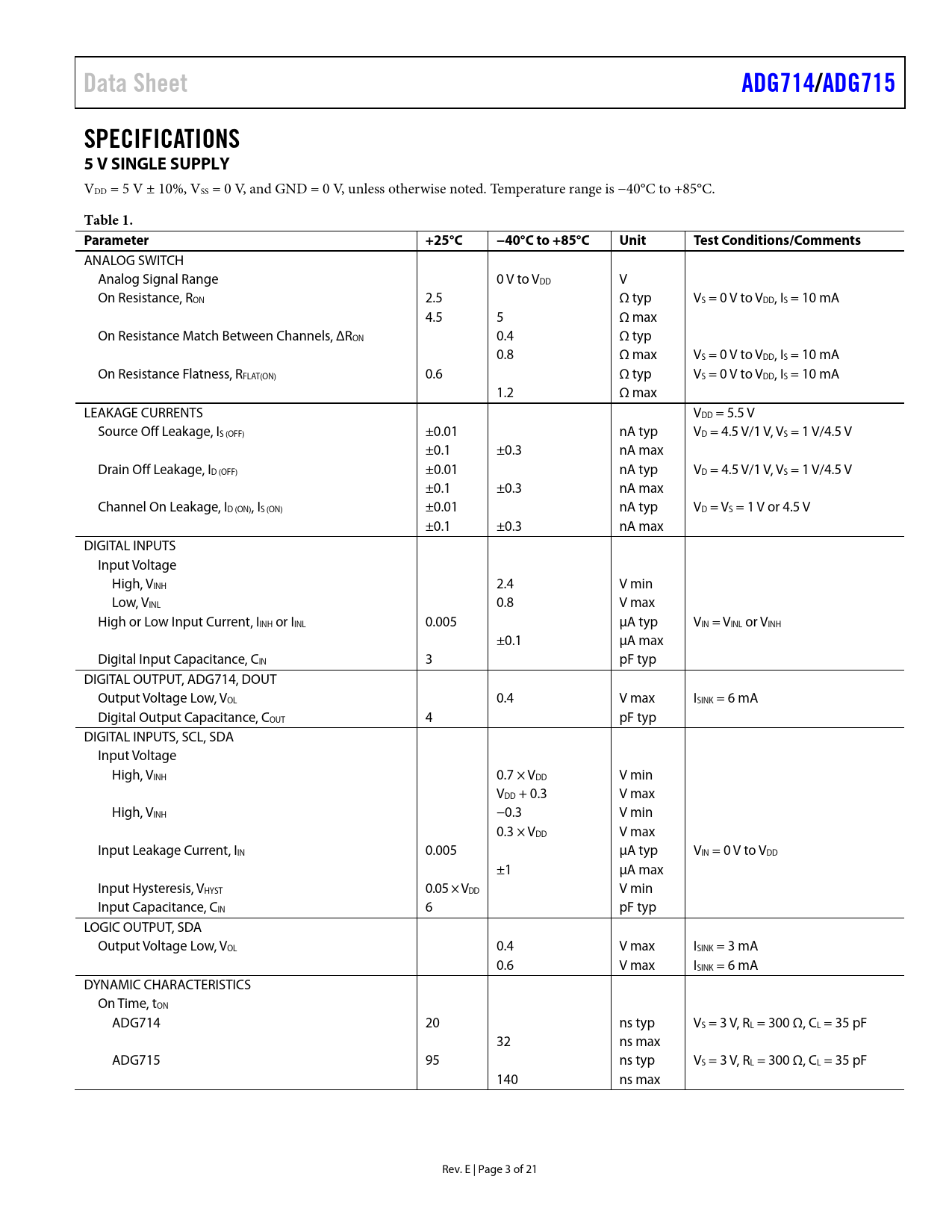

Data SheetADG714/ADG715SPECIFICATIONS 5 V SINGLE SUPPLY VDD = 5 V ± 10%, VSS = 0 V, and GND = 0 V, unless otherwise noted. Temperature range is −40°C to +85°C. Table 1. Parameter+25°C−40°C to +85°CUnitTest Conditions/Comments ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 2.5 Ω typ VS = 0 V to VDD, IS = 10 mA 4.5 5 Ω max On Resistance Match Between Channels, ΔRON 0.4 Ω typ 0.8 Ω max VS = 0 V to VDD, IS = 10 mA On Resistance Flatness, RFLAT(ON) 0.6 Ω typ VS = 0 V to VDD, IS = 10 mA 1.2 Ω max LEAKAGE CURRENTS VDD = 5.5 V Source Off Leakage, IS (OFF) ±0.01 nA typ VD = 4.5 V/1 V, VS = 1 V/4.5 V ±0.1 ±0.3 nA max Drain Off Leakage, ID (OFF) ±0.01 nA typ VD = 4.5 V/1 V, VS = 1 V/4.5 V ±0.1 ±0.3 nA max Channel On Leakage, ID (ON), IS (ON) ±0.01 nA typ VD = VS = 1 V or 4.5 V ±0.1 ±0.3 nA max DIGITAL INPUTS Input Voltage High, VINH 2.4 V min Low, VINL 0.8 V max High or Low Input Current, IINH or IINL 0.005 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DIGITAL OUTPUT, ADG714, DOUT Output Voltage Low, VOL 0.4 V max ISINK = 6 mA Digital Output Capacitance, COUT 4 pF typ DIGITAL INPUTS, SCL, SDA Input Voltage High, VINH 0.7 × VDD V min VDD + 0.3 V max High, VINH −0.3 V min 0.3 × VDD V max Input Leakage Current, IIN 0.005 µA typ VIN = 0 V to VDD ±1 µA max Input Hysteresis, VHYST 0.05 × VDD V min Input Capacitance, CIN 6 pF typ LOGIC OUTPUT, SDA Output Voltage Low, VOL 0.4 V max ISINK = 3 mA 0.6 V max ISINK = 6 mA DYNAMIC CHARACTERISTICS On Time, tON ADG714 20 ns typ VS = 3 V, RL = 300 Ω, CL = 35 pF 32 ns max ADG715 95 ns typ VS = 3 V, RL = 300 Ω, CL = 35 pF 140 ns max Rev. E | Page 3 of 21 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Revision History Specifications 5 V Single Supply 3 V Single Supply ±2.5 V Dual Supply Timing Characteristics ADG714 ADG715 Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Power-On Reset Serial Interface 3-Wire Serial Interface 2-Wire Serial Interface Input Shift Register Write Operation Read Operation Applications Information Multiple Devices on One Bus Daisy-Chaining Multiple ADG714 Devices Power Supply Sequencing Decoding Multiple ADG714 Devices Using the ADG739 Outline Dimensions Ordering Guide
