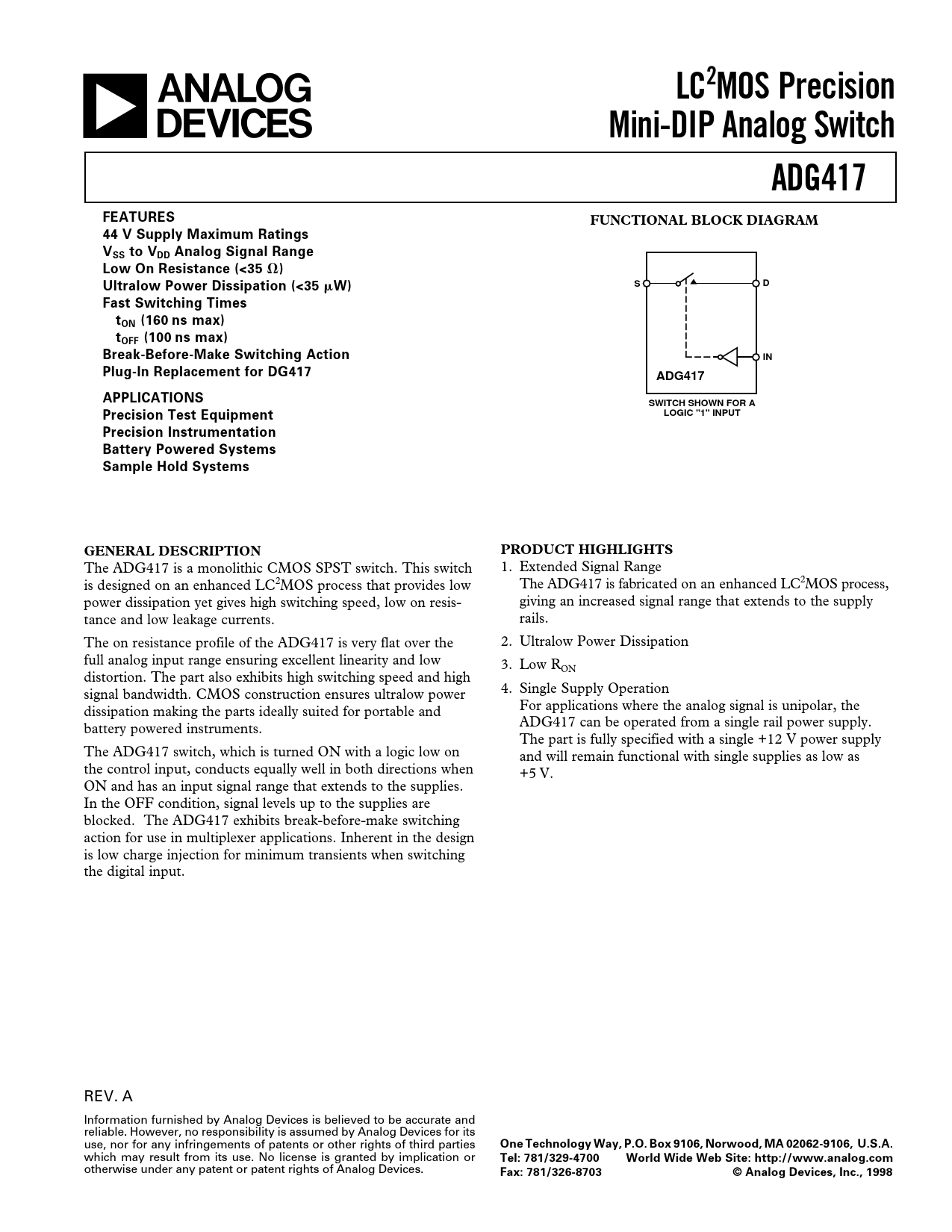

LC2MOS Precision. Mini-DIP Analog Switch. ADG417. FEATURES. FUNCTIONAL BLOCK DIAGRAM
该数据表的模型线
文件文字版本
a
LC2MOS Precision Mini-DIP Analog Switch ADG417 FEATURES FUNCTIONAL BLOCK DIAGRAM 44 V Supply Maximum Ratings VSS to VDD Analog Signal Range Low On Resistance (<35
⍀
) Ultralow Power Dissipation (<35
W) S D Fast Switching Times tON (160 ns max) tOFF (100 ns max) Break-Before-Make Switching Action IN Plug-In Replacement for DG417 ADG417 APPLICATIONS SWITCH SHOWN FOR A Precision Test Equipment LOGIC "1" INPUT Precision Instrumentation Battery Powered Systems Sample Hold Systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG417 is a monolithic CMOS SPST switch. This switch 1. Extended Signal Range is designed on an enhanced LC2MOS process that provides low The ADG417 is fabricated on an enhanced LC2MOS process, power dissipation yet gives high switching speed, low on resis- giving an increased signal range that extends to the supply tance and low leakage currents. rails. The on resistance profile of the ADG417 is very flat over the 2. Ultralow Power Dissipation full analog input range ensuring excellent linearity and low 3. Low RON distortion. The part also exhibits high switching speed and high 4. Single Supply Operation signal bandwidth. CMOS construction ensures ultralow power For applications where the analog signal is unipolar, the dissipation making the parts ideally suited for portable and ADG417 can be operated from a single rail power supply. battery powered instruments. The part is fully specified with a single +12 V power supply The ADG417 switch, which is turned ON with a logic low on and will remain functional with single supplies as low as the control input, conducts equally well in both directions when +5 V. ON and has an input signal range that extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. The ADG417 exhibits break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital input. REV. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
