| 制造商 | Analog Devices |
| 描述 | 8-Channel Fault-Protected Analog Multiplexer |
| 页数 / 页 | 16 / 7 — ADG528F. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. PIN 1. 18 A2. … |
| 修订版 | F |
| 文件格式/大小 | PDF / 287 Kb |
| 文件语言 | 英语 |

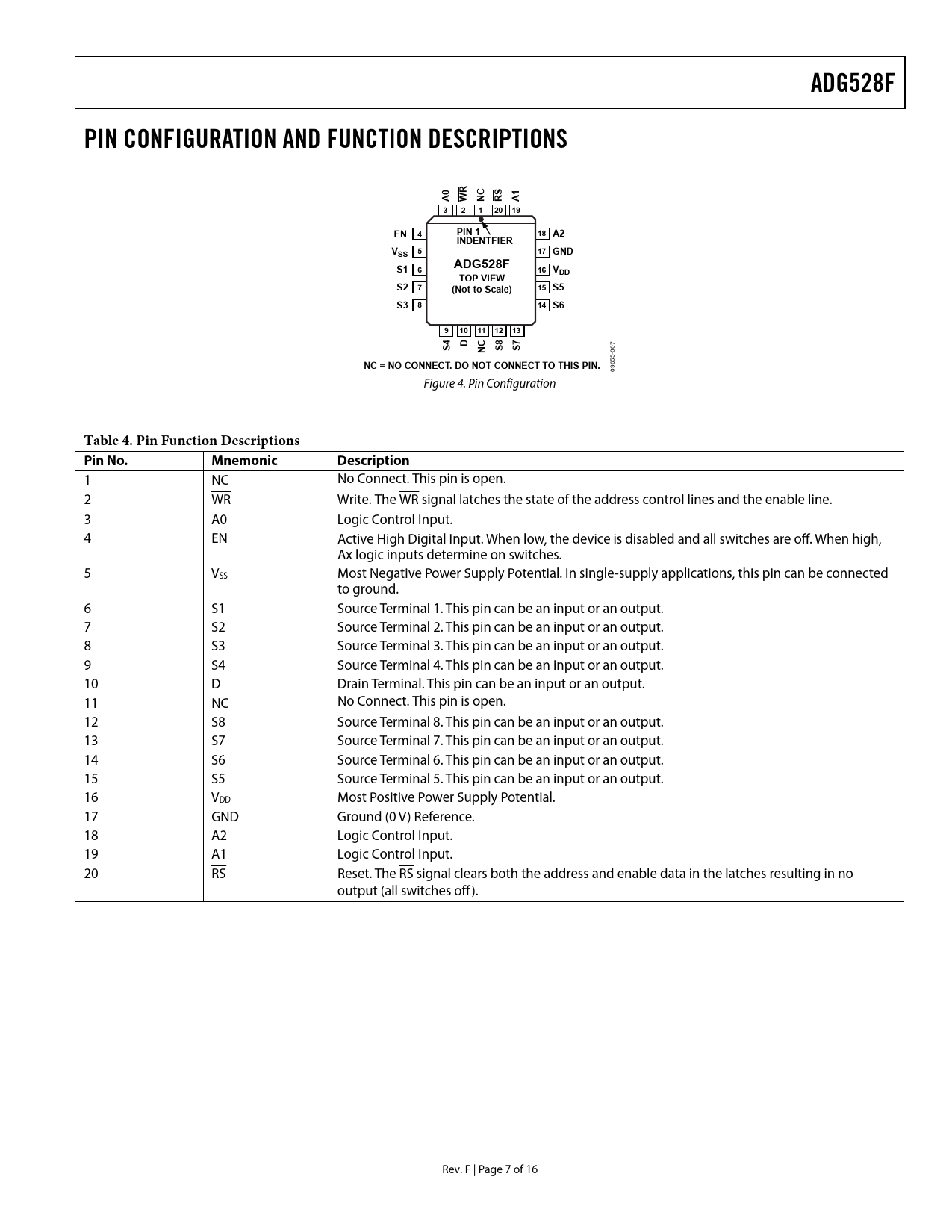

ADG528F. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. PIN 1. 18 A2. INDENTFIER. GND. S1 6. 16 VDD. TOP VIEW. S2 7. (Not to Scale). S3 8. 14 S6
该数据表的模型线
文件文字版本
ADG528F PIN CONFIGURATION AND FUNCTION DESCRIPTIONS A0 WR NC RS A1 3 2 1 20 19 EN 4 PIN 1 18 A2 INDENTFIER V 5 17 SS GND ADG528F S1 6 16 VDD TOP VIEW S2 7 15 (Not to Scale) S5 S3 8 14 S6 9 10 11 12 13 S4 D
7
NC S8 S7
00 5-
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
65 09 Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 NC No Connect. This pin is open. 2 WR Write. The WR signal latches the state of the address control lines and the enable line. 3 A0 Logic Control Input. 4 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 5 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 6 S1 Source Terminal 1. This pin can be an input or an output. 7 S2 Source Terminal 2. This pin can be an input or an output. 8 S3 Source Terminal 3. This pin can be an input or an output. 9 S4 Source Terminal 4. This pin can be an input or an output. 10 D Drain Terminal. This pin can be an input or an output. 11 NC No Connect. This pin is open. 12 S8 Source Terminal 8. This pin can be an input or an output. 13 S7 Source Terminal 7. This pin can be an input or an output. 14 S6 Source Terminal 6. This pin can be an input or an output. 15 S5 Source Terminal 5. This pin can be an input or an output. 16 VDD Most Positive Power Supply Potential. 17 GND Ground (0 V) Reference. 18 A2 Logic Control Input. 19 A1 Logic Control Input. 20 RS Reset. The RS signal clears both the address and enable data in the latches resulting in no output (all switches off ). Rev. F | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY TRUTH TABLE TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
7
NC S8 S7
00 5-
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
65 09 Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 NC No Connect. This pin is open. 2 WR Write. The WR signal latches the state of the address control lines and the enable line. 3 A0 Logic Control Input. 4 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 5 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 6 S1 Source Terminal 1. This pin can be an input or an output. 7 S2 Source Terminal 2. This pin can be an input or an output. 8 S3 Source Terminal 3. This pin can be an input or an output. 9 S4 Source Terminal 4. This pin can be an input or an output. 10 D Drain Terminal. This pin can be an input or an output. 11 NC No Connect. This pin is open. 12 S8 Source Terminal 8. This pin can be an input or an output. 13 S7 Source Terminal 7. This pin can be an input or an output. 14 S6 Source Terminal 6. This pin can be an input or an output. 15 S5 Source Terminal 5. This pin can be an input or an output. 16 VDD Most Positive Power Supply Potential. 17 GND Ground (0 V) Reference. 18 A2 Logic Control Input. 19 A1 Logic Control Input. 20 RS Reset. The RS signal clears both the address and enable data in the latches resulting in no output (all switches off ). Rev. F | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY TRUTH TABLE TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
