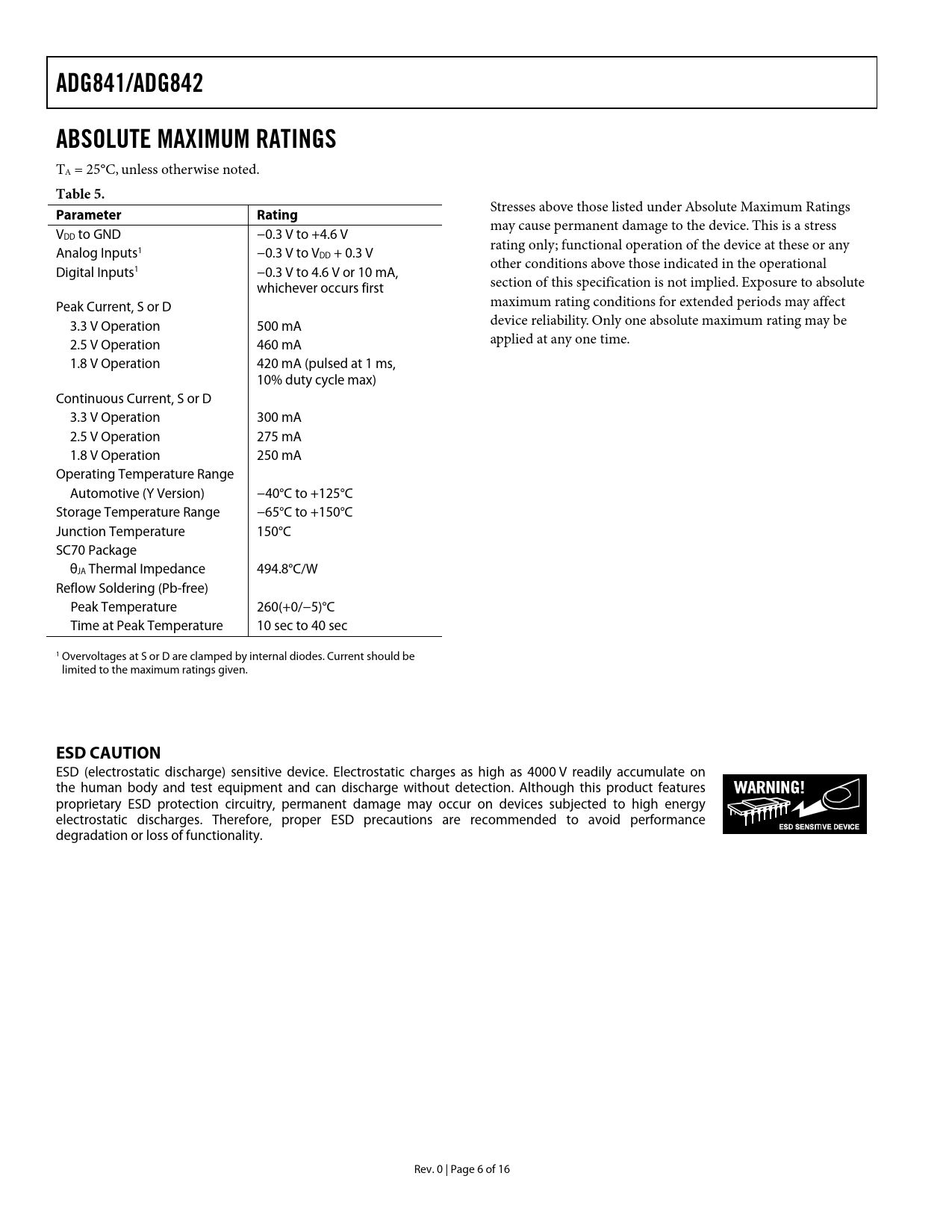

ADG841/ADG842 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 5.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VDD to GND −0.3 V to +4.6 V rating only; functional operation of the device at these or any Analog Inputs1 −0.3 V to VDD + 0.3 V other conditions above those indicated in the operational Digital Inputs1 −0.3 V to 4.6 V or 10 mA, whichever occurs first section of this specification is not implied. Exposure to absolute Peak Current, S or D maximum rating conditions for extended periods may affect 3.3 V Operation 500 mA device reliability. Only one absolute maximum rating may be 2.5 V Operation 460 mA applied at any one time. 1.8 V Operation 420 mA (pulsed at 1 ms, 10% duty cycle max) Continuous Current, S or D 3.3 V Operation 300 mA 2.5 V Operation 275 mA 1.8 V Operation 250 mA Operating Temperature Range Automotive (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C SC70 Package θJA Thermal Impedance 494.8°C/W Reflow Soldering (Pb-free) Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at S or D are clamped by internal diodes. Current should be limited to the maximum ratings given.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. 0 | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
