Datasheet ADG841, ADG842 (Analog Device) - 7
| 制造商 | Analog Device |
| 描述 | 0.28 Ω CMOS 1.65 V to 3.6 V Single SPST Switches in SC70 |
| 页数 / 页 | 16 / 7 — ADG841/ADG842. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD. ADG841/. … |
| 文件格式/大小 | PDF / 560 Kb |
| 文件语言 | 英语 |

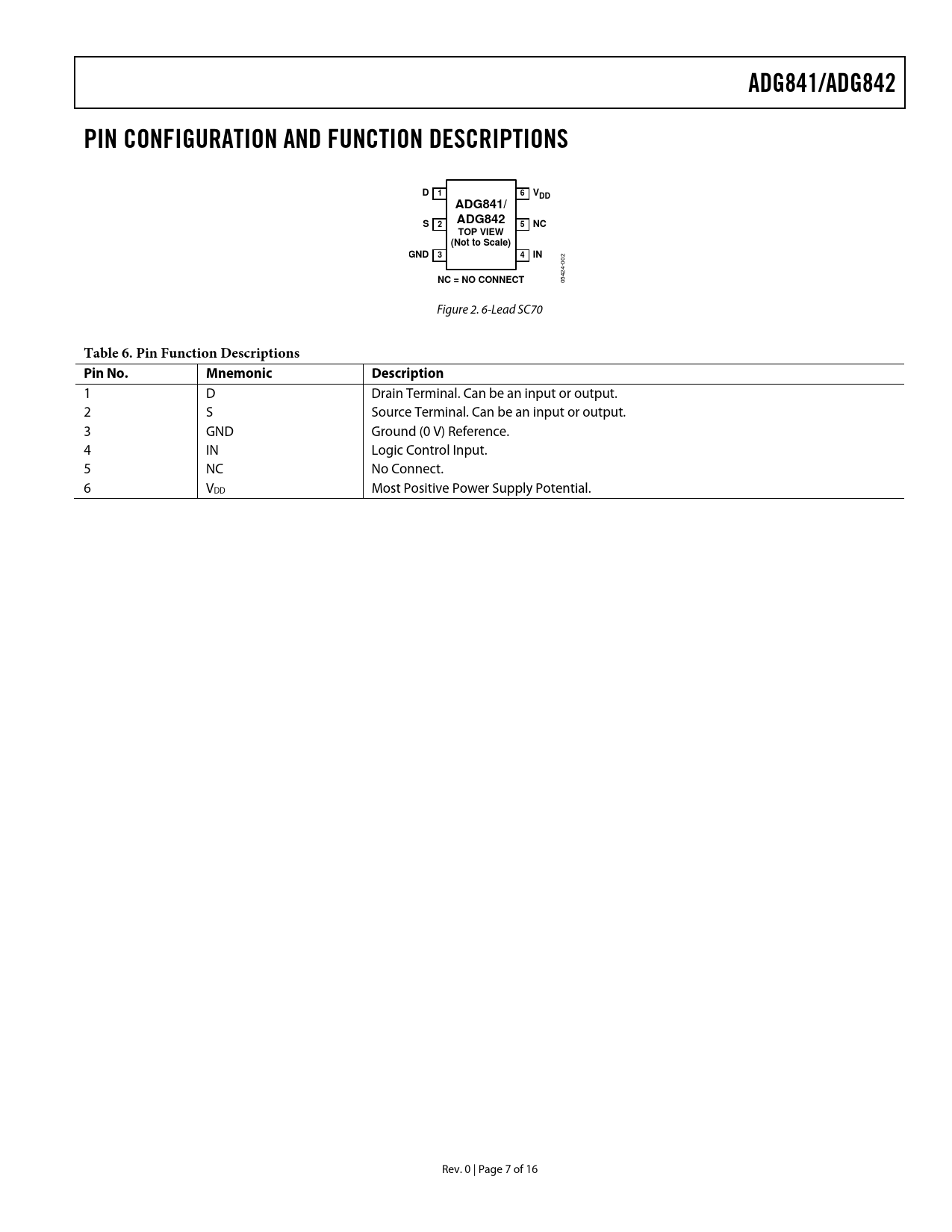

ADG841/ADG842. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD. ADG841/. ADG842. TOP VIEW. (Not to Scale). GND. NC = NO CONNECT
该数据表的模型线
文件文字版本
ADG841/ADG842 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS D 1 6 VDD ADG841/ ADG842 S 2 5 NC TOP VIEW (Not to Scale) GND 3 4 IN NC = NO CONNECT
05424-002 Figure 2. 6-Lead SC70
Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1 D Drain Terminal. Can be an input or output. 2 S Source Terminal. Can be an input or output. 3 GND Ground (0 V) Reference. 4 IN Logic Control Input. 5 NC No Connect. 6 VDD Most Positive Power Supply Potential. Rev. 0 | Page 7 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
