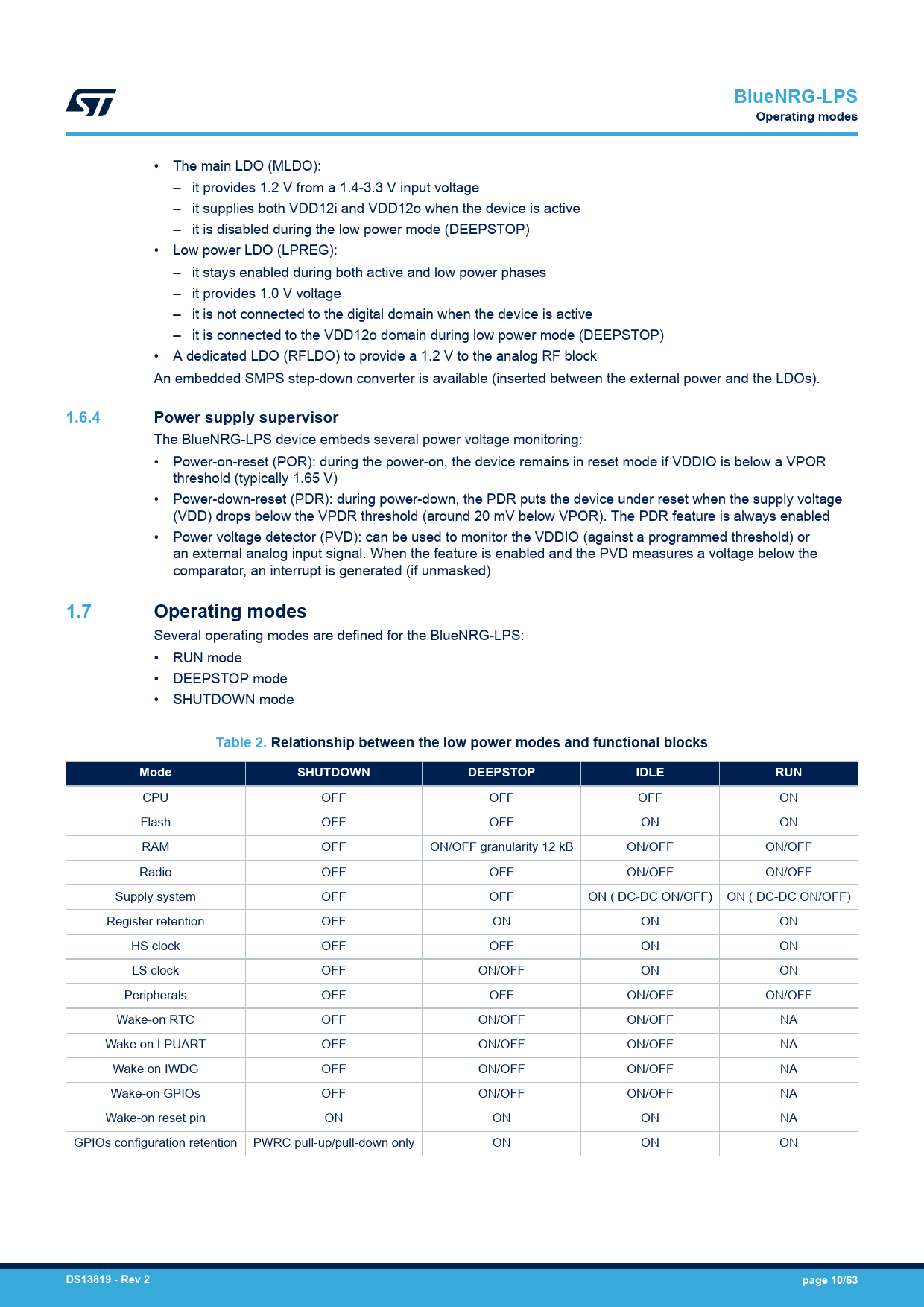

BlueNRG-LPS Operating modes
• The main LDO (MLDO): – it provides 1.2 V from a 1.4-3.3 V input voltage – it supplies both VDD12i and VDD12o when the device is active – it is disabled during the low power mode (DEEPSTOP) • Low power LDO (LPREG): – it stays enabled during both active and low power phases – it provides 1.0 V voltage – it is not connected to the digital domain when the device is active – it is connected to the VDD12o domain during low power mode (DEEPSTOP) • A dedicated LDO (RFLDO) to provide a 1.2 V to the analog RF block An embedded SMPS step-down converter is available (inserted between the external power and the LDOs).
1.6.4 Power supply supervisor
The BlueNRG-LPS device embeds several power voltage monitoring: • Power-on-reset (POR): during the power-on, the device remains in reset mode if VDDIO is below a VPOR threshold (typically 1.65 V) • Power-down-reset (PDR): during power-down, the PDR puts the device under reset when the supply voltage (VDD) drops below the VPDR threshold (around 20 mV below VPOR). The PDR feature is always enabled • Power voltage detector (PVD): can be used to monitor the VDDIO (against a programmed threshold) or an external analog input signal. When the feature is enabled and the PVD measures a voltage below the comparator, an interrupt is generated (if unmasked)
1.7 Operating modes
Several operating modes are defined for the BlueNRG-LPS: • RUN mode • DEEPSTOP mode • SHUTDOWN mode
Table 2. Relationship between the low power modes and functional blocks Mode SHUTDOWN DEEPSTOP IDLE RUN
CPU OFF OFF OFF ON Flash OFF OFF ON ON RAM OFF ON/OFF granularity 12 kB ON/OFF ON/OFF Radio OFF OFF ON/OFF ON/OFF Supply system OFF OFF ON ( DC-DC ON/OFF) ON ( DC-DC ON/OFF) Register retention OFF ON ON ON HS clock OFF OFF ON ON LS clock OFF ON/OFF ON ON Peripherals OFF OFF ON/OFF ON/OFF Wake-on RTC OFF ON/OFF ON/OFF NA Wake on LPUART OFF ON/OFF ON/OFF NA Wake on IWDG OFF ON/OFF ON/OFF NA Wake-on GPIOs OFF ON/OFF ON/OFF NA Wake-on reset pin ON ON ON NA GPIOs configuration retention PWRC pull-up/pull-down only ON ON ON
