Datasheet RFD10P03L, RFD10P03LSM, RFP10P03L (Intersil) - 6
| 制造商 | Intersil |
| 描述 | 10A, 30V, 0.200 Ohm, Logic Level, P-Channel Power MOSFET |
| 页数 / 页 | 8 / 6 — RFD10P03L, RFD10P03LSM, RFP10P03L. Test Circuits and Waveforms … |
| 文件格式/大小 | PDF / 145 Kb |
| 文件语言 | 英语 |
RFD10P03L, RFD10P03LSM, RFP10P03L. Test Circuits and Waveforms (Continued). tON. tOFF. td(ON). td(OFF). 10%. DUT. VDS. 90%. VGS. 50%
该数据表的模型线
文件文字版本

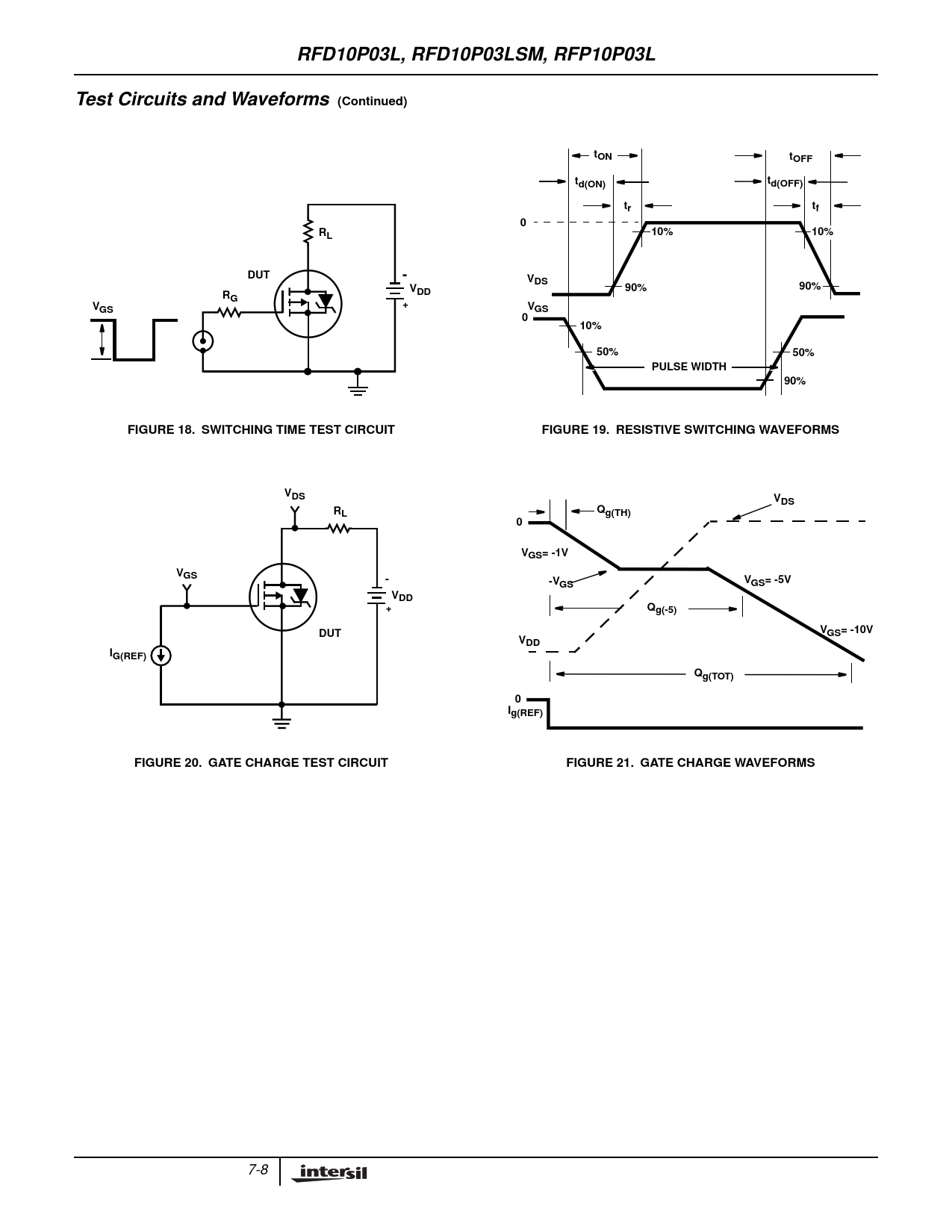

RFD10P03L, RFD10P03LSM, RFP10P03L Test Circuits and Waveforms (Continued) tON tOFF td(ON) td(OFF) tr tf 0 RL 10% 10% DUT - VDS V 90% 90% R DD G V + GS VGS 0 10% 50% 50% PULSE WIDTH 90% FIGURE 18. SWITCHING TIME TEST CIRCUIT FIGURE 19. RESISTIVE SWITCHING WAVEFORMS VDS VDS RL Qg(TH) 0 VGS= -1V VGS - -V V GS GS= -5V VDD + Qg(-5) DUT VGS= -10V VDD IG(REF) Qg(TOT) 0 Ig(REF) FIGURE 20. GATE CHARGE TEST CIRCUIT FIGURE 21. GATE CHARGE WAVEFORMS
