Datasheet RFD10P03L, RFD10P03LSM, RFP10P03L (Intersil) - 8
| 制造商 | Intersil |
| 描述 | 10A, 30V, 0.200 Ohm, Logic Level, P-Channel Power MOSFET |
| 页数 / 页 | 8 / 8 — RFD10P03L, RFD10P03LSM, RFP10P03L. PSpice Thermal Model. JUNCTION. … |
| 文件格式/大小 | PDF / 145 Kb |
| 文件语言 | 英语 |
RFD10P03L, RFD10P03LSM, RFP10P03L. PSpice Thermal Model. JUNCTION. RTHERM1. CTHERM1. RTHERM2. CTHERM2. RTHERM3. CTHERM3. RTHERM4. CTHERM4
该数据表的模型线
文件文字版本

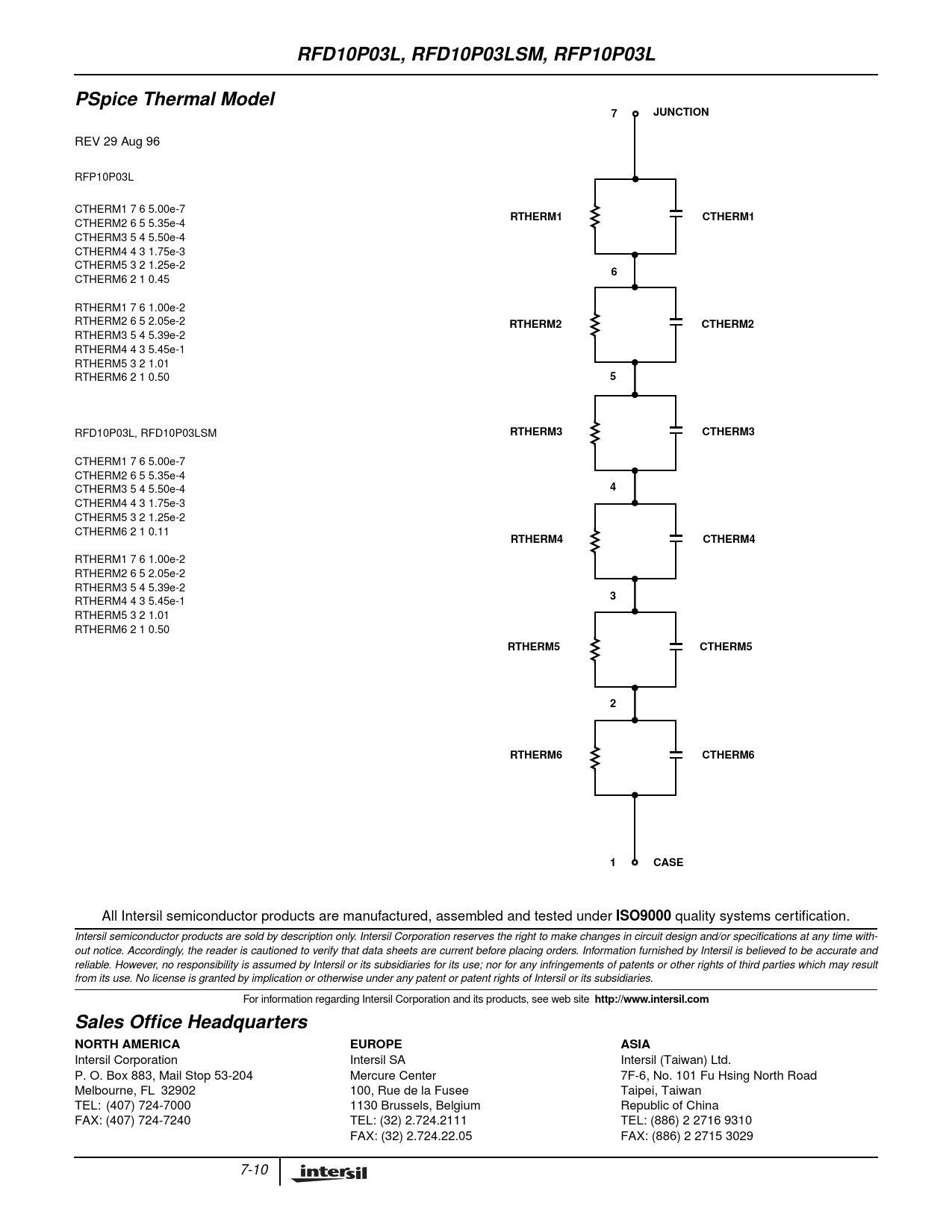

RFD10P03L, RFD10P03LSM, RFP10P03L PSpice Thermal Model 7 JUNCTION
REV 29 Aug 96 RFP10P03L CTHERM1 7 6 5.00e-7
RTHERM1 CTHERM1
CTHERM2 6 5 5.35e-4 CTHERM3 5 4 5.50e-4 CTHERM4 4 3 1.75e-3 CTHERM5 3 2 1.25e-2
6
CTHERM6 2 1 0.45 RTHERM1 7 6 1.00e-2 RTHERM2 6 5 2.05e-2
RTHERM2 CTHERM2
RTHERM3 5 4 5.39e-2 RTHERM4 4 3 5.45e-1 RTHERM5 3 2 1.01 RTHERM6 2 1 0.50
5
RFD10P03L, RFD10P03LSM
RTHERM3 CTHERM3
CTHERM1 7 6 5.00e-7 CTHERM2 6 5 5.35e-4 CTHERM3 5 4 5.50e-4
4
CTHERM4 4 3 1.75e-3 CTHERM5 3 2 1.25e-2 CTHERM6 2 1 0.11
RTHERM4 CTHERM4
RTHERM1 7 6 1.00e-2 RTHERM2 6 5 2.05e-2 RTHERM3 5 4 5.39e-2
3
RTHERM4 4 3 5.45e-1 RTHERM5 3 2 1.01 RTHERM6 2 1 0.50
RTHERM5 CTHERM5 2 RTHERM6 CTHERM6 1 CASE
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification. Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with- out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries. For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com Sales Office Headquarters NORTH AMERICA EUROPE ASIA
Intersil Corporation Intersil SA Intersil (Taiwan) Ltd. P. O. Box 883, Mail Stop 53-204 Mercure Center 7F-6, No. 101 Fu Hsing North Road Melbourne, FL 32902 100, Rue de la Fusee Taipei, Taiwan TEL: (407) 724-7000 1130 Brussels, Belgium Republic of China FAX: (407) 724-7240 TEL: (32) 2.724.2111 TEL: (886) 2 2716 9310 FAX: (32) 2.724.22.05 FAX: (886) 2 2715 3029 7-10
