Datasheet FZT788B (Diodes) - 6
| 制造商 | Diodes |
| 描述 | 15V PNP Medium Power High Gain Transistor In SOT223 |
| 页数 / 页 | 7 / 6 — FZT788B. Package Outline Dimensions. SOT223 (Type DN). Dim. Min. Max. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
FZT788B. Package Outline Dimensions. SOT223 (Type DN). Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout
该数据表的模型线
文件文字版本

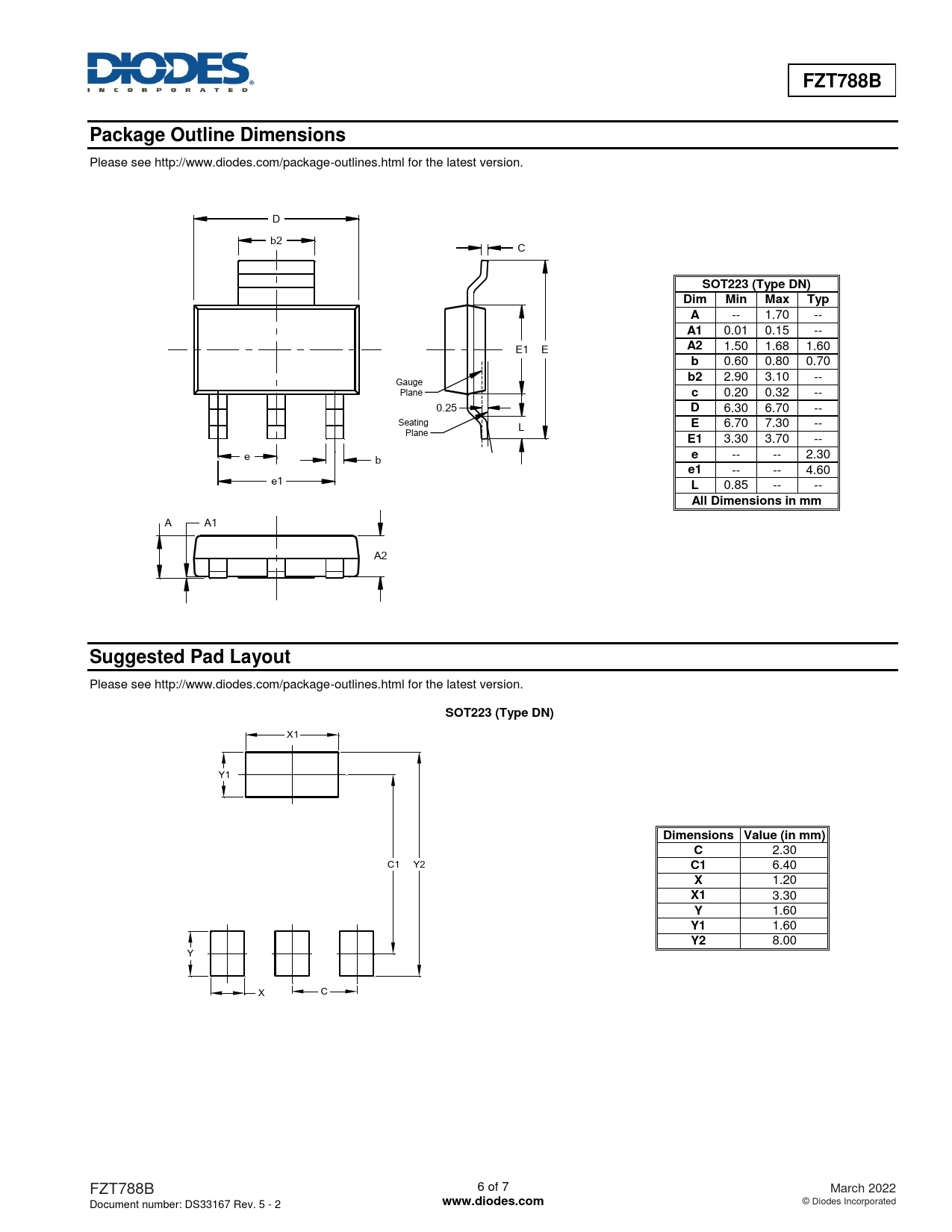

FZT788B Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version. D b2 C
SOT223 (Type DN) Dim Min Max Typ A
-- 1.70 --
A1
0.01 0.15 --
A2
1.50 1.68 1.60 E1 E
b
0.60 0.80 0.70
b2
2.90 3.10 -- Gauge Plane
c
0.20 0.32 -- 0.25
D
6.30 6.70 -- Seating
E
6.70 7.30 -- L Plane
E1
3.30 3.70 -- e
e
-- -- 2.30 b
e1
-- -- 4.60 e1
L
0.85 -- --
All Dimensions in mm
A A1 A2
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT223 (Type DN)
X1 Y1
Dimensions Value (in mm) C
2.30 C1 Y2
C1
6.40
X
1.20
X1
3.30
Y
1.60
Y1
1.60
Y2
8.00 Y X C FZT788B 6 of 7 March 2022 Document number: DS33167 Rev. 5 - 2
www.diodes.com
© Diodes Incorporated
