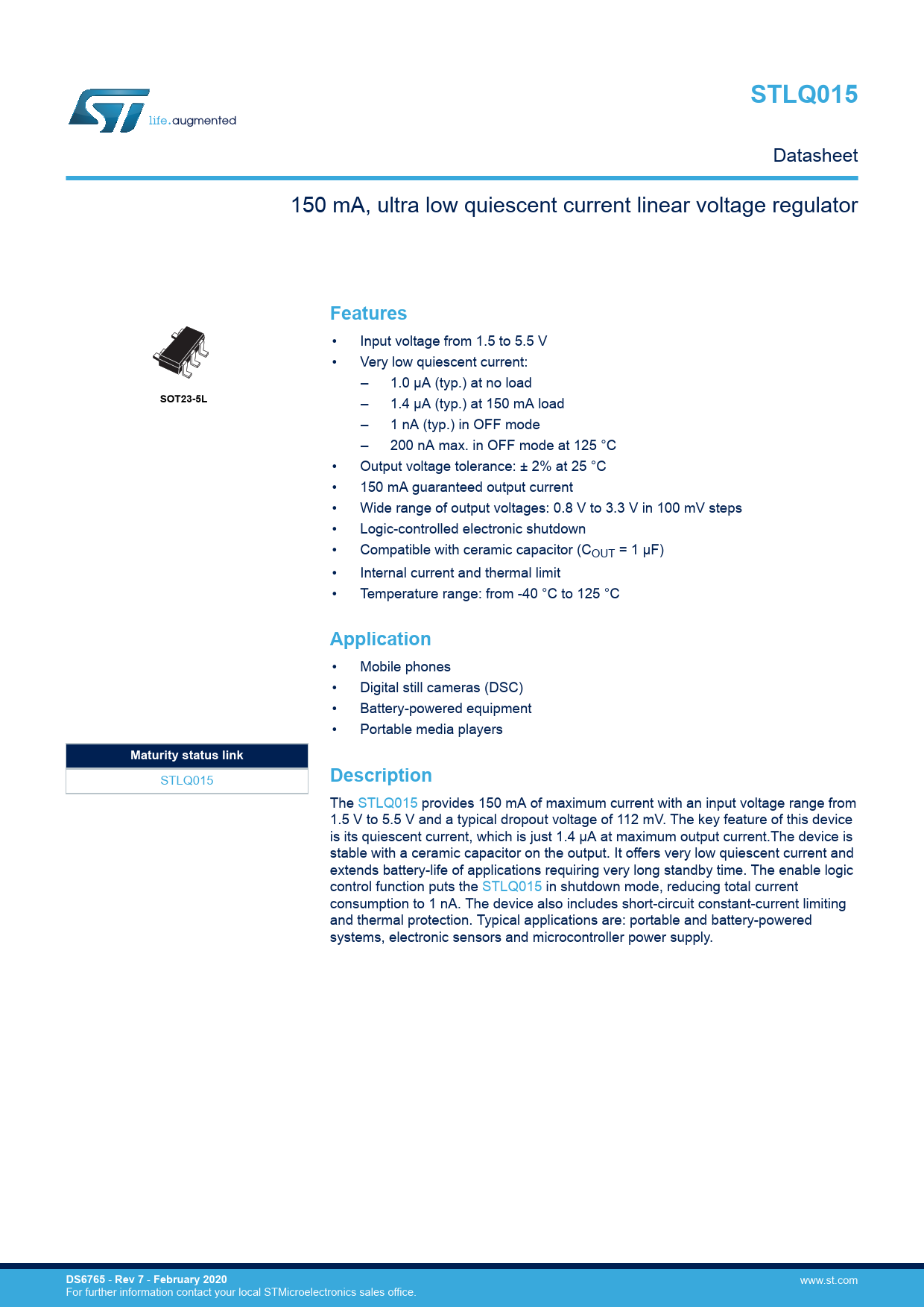

STLQ015
Datasheet 150 mA, ultra low quiescent current linear voltage regulator
Features
• Input voltage from 1.5 to 5.5 V • Very low quiescent current: – 1.0 µA (typ.) at no load
SOT23-5L
– 1.4 µA (typ.) at 150 mA load – 1 nA (typ.) in OFF mode – 200 nA max. in OFF mode at 125 °C • Output voltage tolerance: ± 2% at 25 °C • 150 mA guaranteed output current • Wide range of output voltages: 0.8 V to 3.3 V in 100 mV steps • Logic-controlled electronic shutdown • Compatible with ceramic capacitor (COUT = 1 µF) • Internal current and thermal limit • Temperature range: from -40 °C to 125 °C
Application
• Mobile phones • Digital still cameras (DSC) • Battery-powered equipment • Portable media players
Maturity status link
STLQ015
Description
The STLQ015 provides 150 mA of maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 112 mV. The key feature of this device is its quiescent current, which is just 1.4 µA at maximum output current.The device is stable with a ceramic capacitor on the output. It offers very low quiescent current and extends battery-life of applications requiring very long standby time. The enable logic control function puts the STLQ015 in shutdown mode, reducing total current consumption to 1 nA. The device also includes short-circuit constant-current limiting and thermal protection. Typical applications are: portable and battery-powered systems, electronic sensors and microcontroller power supply.
DS6765
-
Rev 7
-
February 2020
