Datasheet STLQ015 (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | 150 mA, ultra low quiescent current linear voltage regulator |
| 页数 / 页 | 19 / 5 — STLQ015. Maximum ratings. Table 2. Absolute maximum ratings. Symbol. … |
| 文件格式/大小 | PDF / 528 Kb |
| 文件语言 | 英语 |
STLQ015. Maximum ratings. Table 2. Absolute maximum ratings. Symbol. Parameter. Value. Unit. Table 3. Thermal data. DS6765. Rev 7
该数据表的模型线
文件文字版本

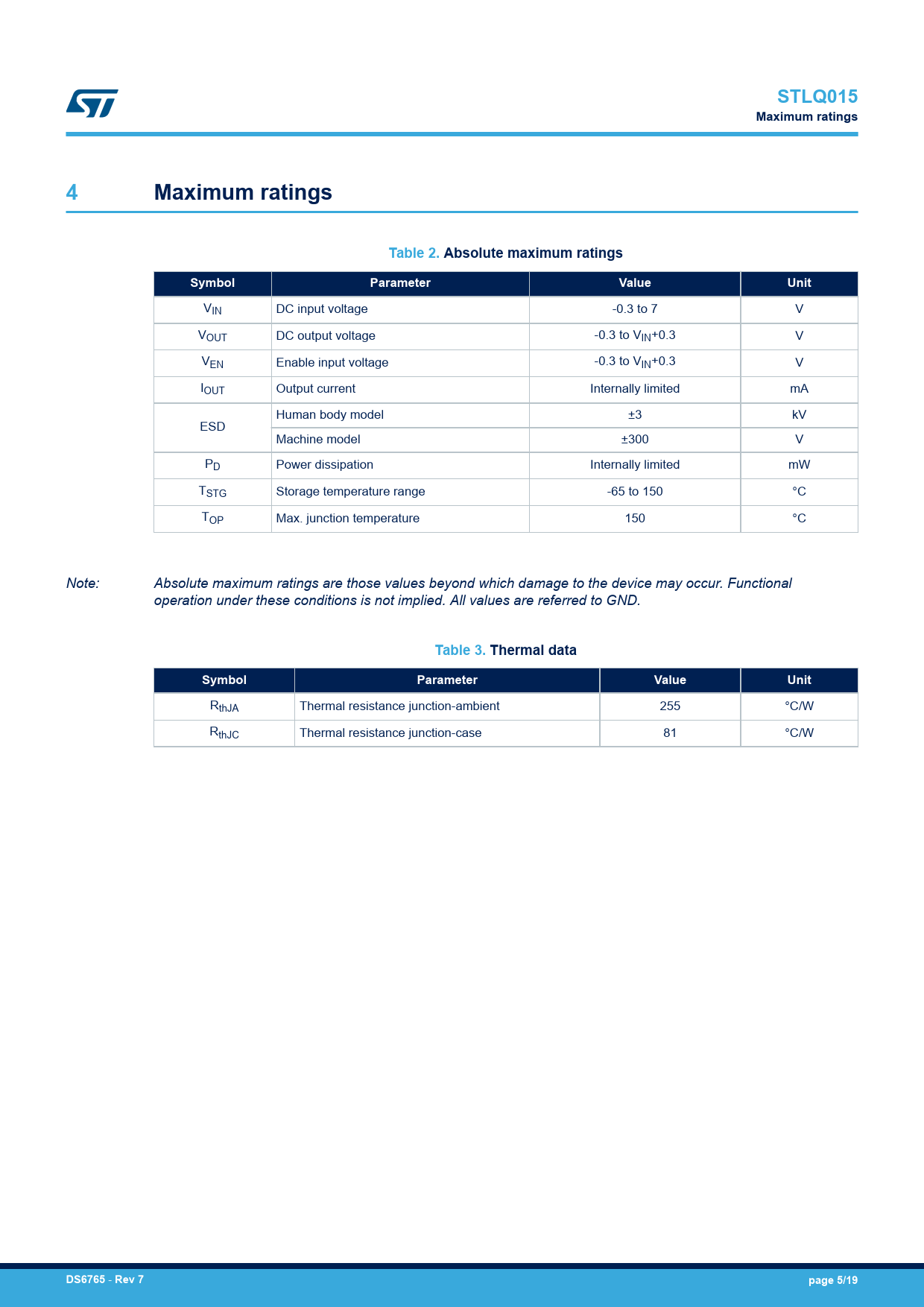

STLQ015 Maximum ratings 4 Maximum ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit
VIN DC input voltage -0.3 to 7 V VOUT DC output voltage -0.3 to VIN+0.3 V VEN Enable input voltage -0.3 to VIN+0.3 V IOUT Output current Internally limited mA Human body model ±3 kV ESD Machine model ±300 V PD Power dissipation Internally limited mW TSTG Storage temperature range -65 to 150 °C TOP Max. junction temperature 150 °C Note: Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. All values are referred to GND.
Table 3. Thermal data Symbol Parameter Value Unit
RthJA Thermal resistance junction-ambient 255 °C/W RthJC Thermal resistance junction-case 81 °C/W
DS6765
-
Rev 7 page 5/19
Document Outline 1 Block diagram 2 Pin configuration and description 3 Typical application 4 Maximum ratings 5 Electrical characteristics 6 Typical performance characteristics 7 Package information 7.1 SOT23-5L mechanical data 7.2 SOT23-5L packing information 8 Ordering information Revision history Contents List of tables List of figures Disclaimer
