Datasheet PM2E (Prolight) - 2
| 制造商 | Prolight |
| 描述 | 3W Power LED |
| 页数 / 页 | 20 / 2 — Emitter Mechanical Dimensions |
| 文件格式/大小 | PDF / 683 Kb |
| 文件语言 | 英语 |

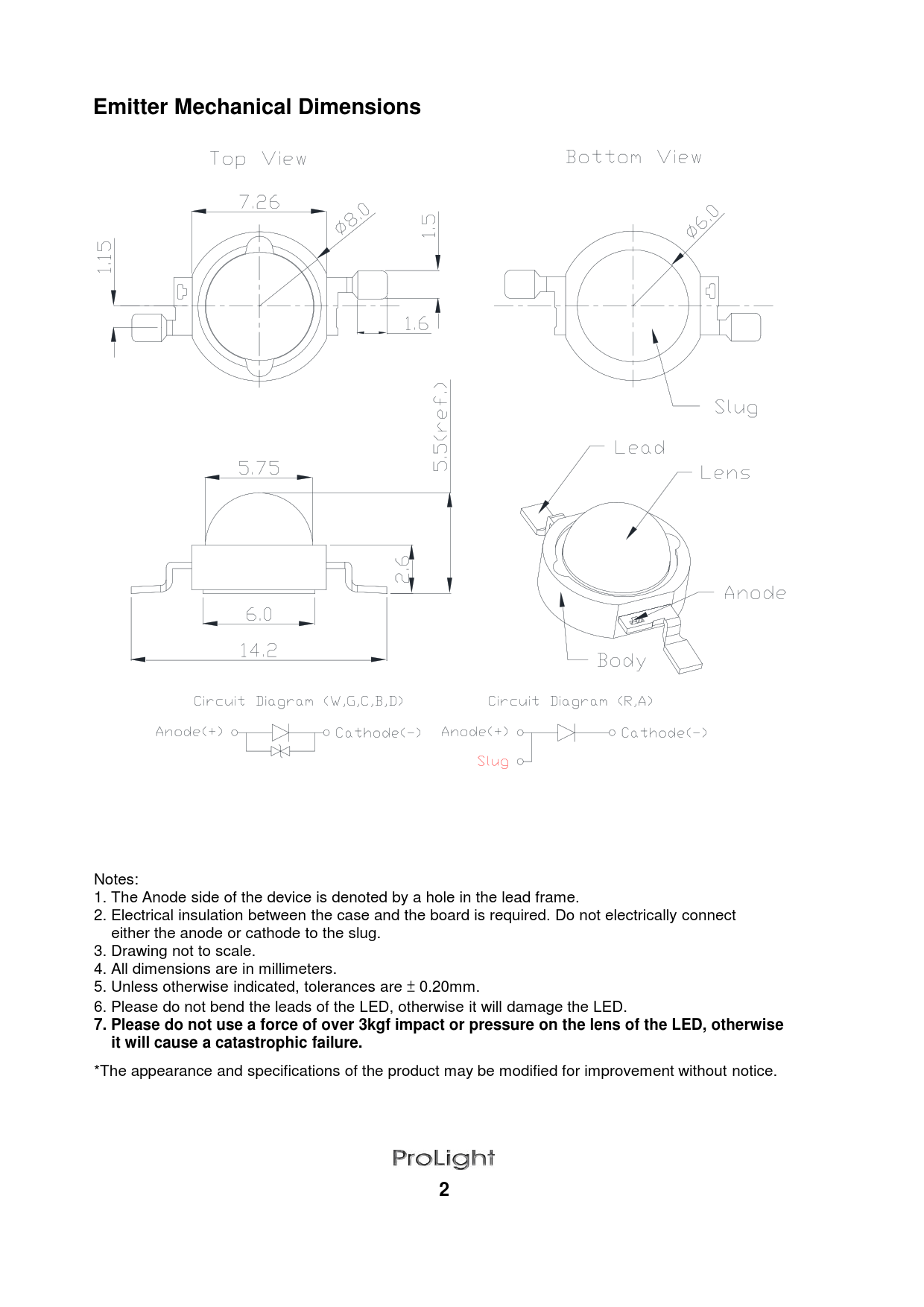

Emitter Mechanical Dimensions
该数据表的模型线
文件文字版本
Emitter Mechanical Dimensions
Notes: 1. The Anode side of the device is denoted by a hole in the lead frame. 2. Electrical insulation between the case and the board is required. Do not electrically connect either the anode or cathode to the slug. 3. Drawing not to scale. 4. All dimensions are in millimeters. 5. Unless otherwise indicated, tolerances are ± 0.20mm. 6. Please do not bend the leads of the LED, otherwise it will damage the LED.
7. Please do not use a force of over 3kgf impact or pressure on the lens of the LED, otherwise it will cause a catastrophic failure.
*The appearance and specifications of the product may be modified for improvement without notice.
2
