Datasheet PM2E (Prolight) - 3

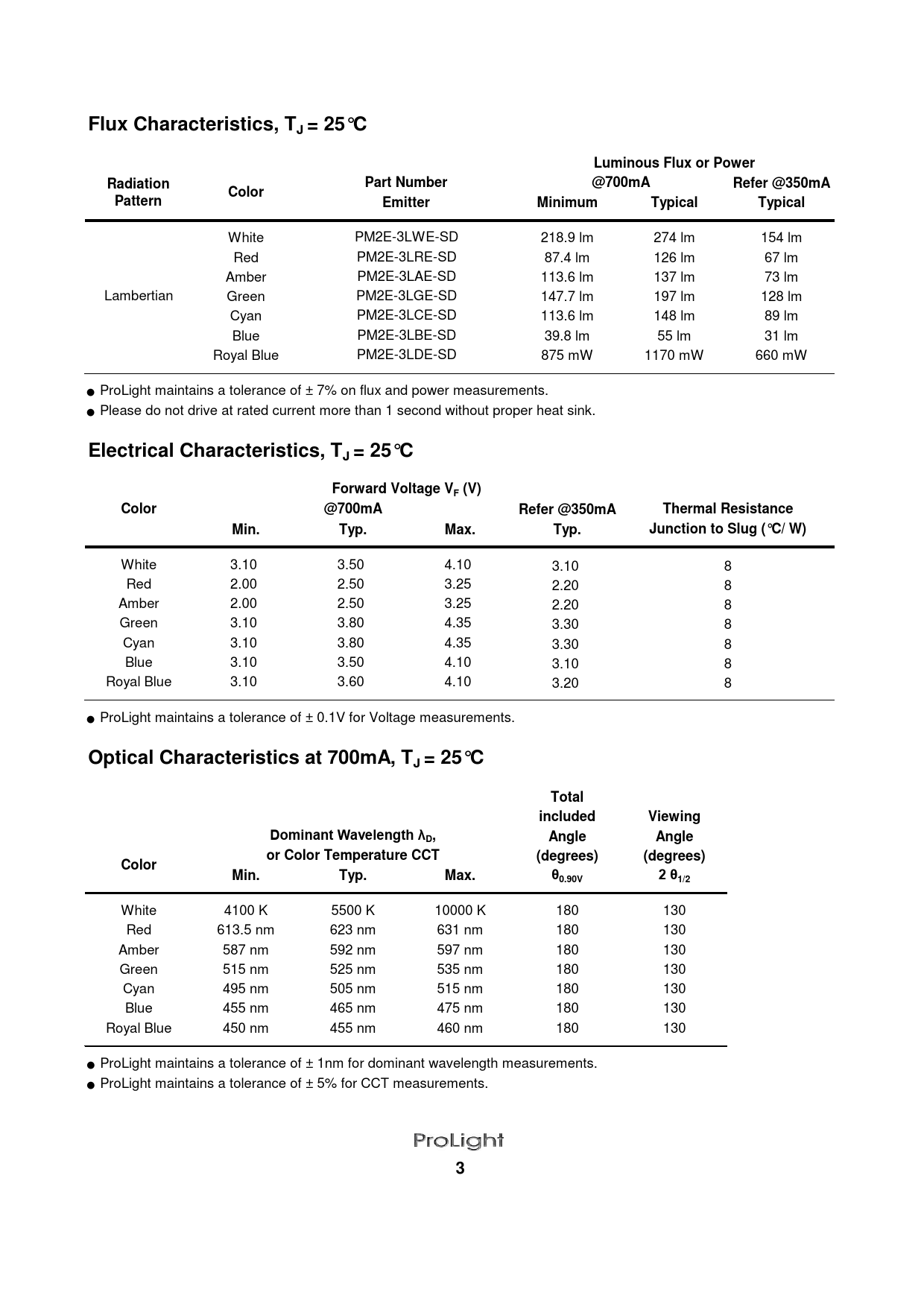

Flux Characteristics, TJ = 25°C Luminous Flux or Power Radiation Part Number @700mA Refer @350mA Color Pattern Emitter Minimum Typical Typical
White PM2E-3LWE-SD 218.9 lm 274 lm 154 lm Red PM2E-3LRE-SD 87.4 lm 126 lm 67 lm Amber PM2E-3LAE-SD 113.6 lm 137 lm 73 lm Lambertian Green PM2E-3LGE-SD 147.7 lm 197 lm 128 lm Cyan PM2E-3LCE-SD 113.6 lm 148 lm 89 lm Blue PM2E-3LBE-SD 39.8 lm 55 lm 31 lm Royal Blue PM2E-3LDE-SD 875 mW 1170 mW 660 mW ● ProLight maintains a tolerance of ± 7% on flux and power measurements. ● Please do not drive at rated current more than 1 second without proper heat sink.
Electrical Characteristics, TJ = 25°C Forward Voltage VF (V) Color @700mA Refer @350mA Thermal Resistance Min. Typ. Max. Typ. Junction to Slug (°C/ W)
White 3.10 3.50 4.10 3.10 8 Red 2.00 2.50 3.25 2.20 8 Amber 2.00 2.50 3.25 2.20 8 Green 3.10 3.80 4.35 3.30 8 Cyan 3.10 3.80 4.35 3.30 8 Blue 3.10 3.50 4.10 3.10 8 Royal Blue 3.10 3.60 4.10 3.20 8 ● ProLight maintains a tolerance of ± 0.1V for Voltage measurements.
Optical Characteristics at 700mA, TJ = 25°C Total included Viewing Dominant Wavelength λD, Angle Angle or Color Temperature CCT (degrees) (degrees) Color Min. Typ. Max. θ 2 θ 0.90V 1/2
White 4100 K 5500 K 10000 K 180 130 Red 613.5 nm 623 nm 631 nm 180 130 Amber 587 nm 592 nm 597 nm 180 130 Green 515 nm 525 nm 535 nm 180 130 Cyan 495 nm 505 nm 515 nm 180 130 Blue 455 nm 465 nm 475 nm 180 130 Royal Blue 450 nm 455 nm 460 nm 180 130 ● ProLight maintains a tolerance of ± 1nm for dominant wavelength measurements. ● ProLight maintains a tolerance of ± 5% for CCT measurements.
3
