Datasheet MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 (ON Semiconductor) - 3
| 制造商 | ON Semiconductor |
| 描述 | Low Voltage, Rail-to-Rail Operational Amplifiers |
| 页数 / 页 | 17 / 3 — MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204. MAXIMUM RATINGS. … |
| 文件格式/大小 | PDF / 521 Kb |
| 文件语言 | 英语 |
MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204. MAXIMUM RATINGS. Rating. Symbol. Value. Unit
该数据表的模型线
- MC33201D MC33201DG MC33201DR2 MC33201DR2G MC33201P MC33201PG MC33201VD MC33201VDG MC33201VDR2 MC33201VDR2G
- MC33202D MC33202DG MC33202DMR2 MC33202DMR2G MC33202DR2 MC33202DR2G MC33202P MC33202PG MC33202VD MC33202VDG MC33202VDR2 MC33202VDR2G MC33202VP MC33202VPG
文件文字版本
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

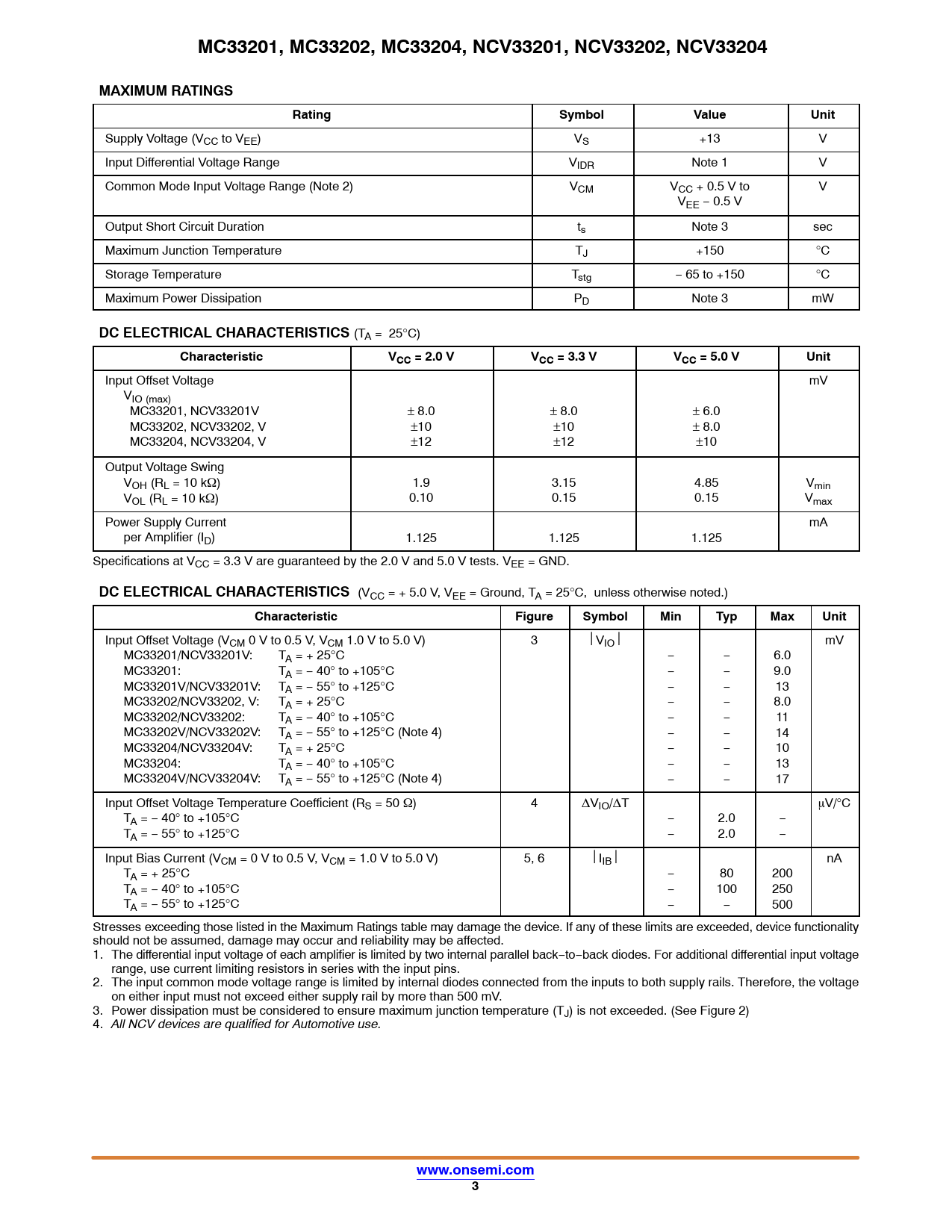

MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 MAXIMUM RATINGS Rating Symbol Value Unit
Supply Voltage (VCC to VEE) VS +13 V Input Differential Voltage Range VIDR Note 1 V Common Mode Input Voltage Range (Note 2) VCM VCC + 0.5 V to V VEE − 0.5 V Output Short Circuit Duration ts Note 3 sec Maximum Junction Temperature TJ +150 °C Storage Temperature Tstg − 65 to +150 °C Maximum Power Dissipation PD Note 3 mW
DC ELECTRICAL CHARACTERISTICS
(TA = 25°C)
Characteristic VCC = 2.0 V VCC = 3.3 V VCC = 5.0 V Unit
Input Offset Voltage mV VIO (max) MC33201, NCV33201V ± 8.0 ± 8.0 ± 6.0 MC33202, NCV33202, V ±10 ±10 ± 8.0 MC33204, NCV33204, V ±12 ±12 ±10 Output Voltage Swing VOH (RL = 10 kW) 1.9 3.15 4.85 Vmin VOL (RL = 10 kW) 0.10 0.15 0.15 Vmax Power Supply Current mA per Amplifier (ID) 1.125 1.125 1.125 Specifications at VCC = 3.3 V are guaranteed by the 2.0 V and 5.0 V tests. VEE = GND.
DC ELECTRICAL CHARACTERISTICS
(VCC = + 5.0 V, VEE = Ground, TA = 25°C, unless otherwise noted.)
Characteristic Figure Symbol Min Typ Max Unit
Input Offset Voltage (VCM 0 V to 0.5 V, VCM 1.0 V to 5.0 V) 3 ⎮VIO⎮ mV MC33201/NCV33201V: TA = + 25°C − − 6.0 MC33201: TA = − 40° to +105°C − − 9.0 MC33201V/NCV33201V: TA = − 55° to +125°C − − 13 MC33202/NCV33202, V: TA = + 25°C − − 8.0 MC33202/NCV33202: TA = − 40° to +105°C − − 11 MC33202V/NCV33202V: TA = − 55° to +125°C (Note 4) − − 14 MC33204/NCV33204V: TA = + 25°C − − 10 MC33204: TA = − 40° to +105°C − − 13 MC33204V/NCV33204V: TA = − 55° to +125°C (Note 4) − − 17 Input Offset Voltage Temperature Coefficient (RS = 50 W) 4 DVIO/DT mV/°C TA = − 40° to +105°C − 2.0 − TA = − 55° to +125°C − 2.0 − Input Bias Current (VCM = 0 V to 0.5 V, VCM = 1.0 V to 5.0 V) 5, 6 ⎮IIB⎮ nA TA = + 25°C − 80 200 TA = − 40° to +105°C − 100 250 TA = − 55° to +125°C − − 500 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. The differential input voltage of each amplifier is limited by two internal parallel back−to−back diodes. For additional differential input voltage range, use current limiting resistors in series with the input pins. 2. The input common mode voltage range is limited by internal diodes connected from the inputs to both supply rails. Therefore, the voltage on either input must not exceed either supply rail by more than 500 mV. 3. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded. (See Figure 2) 4. All NCV devices are qualified for Automotive use.
