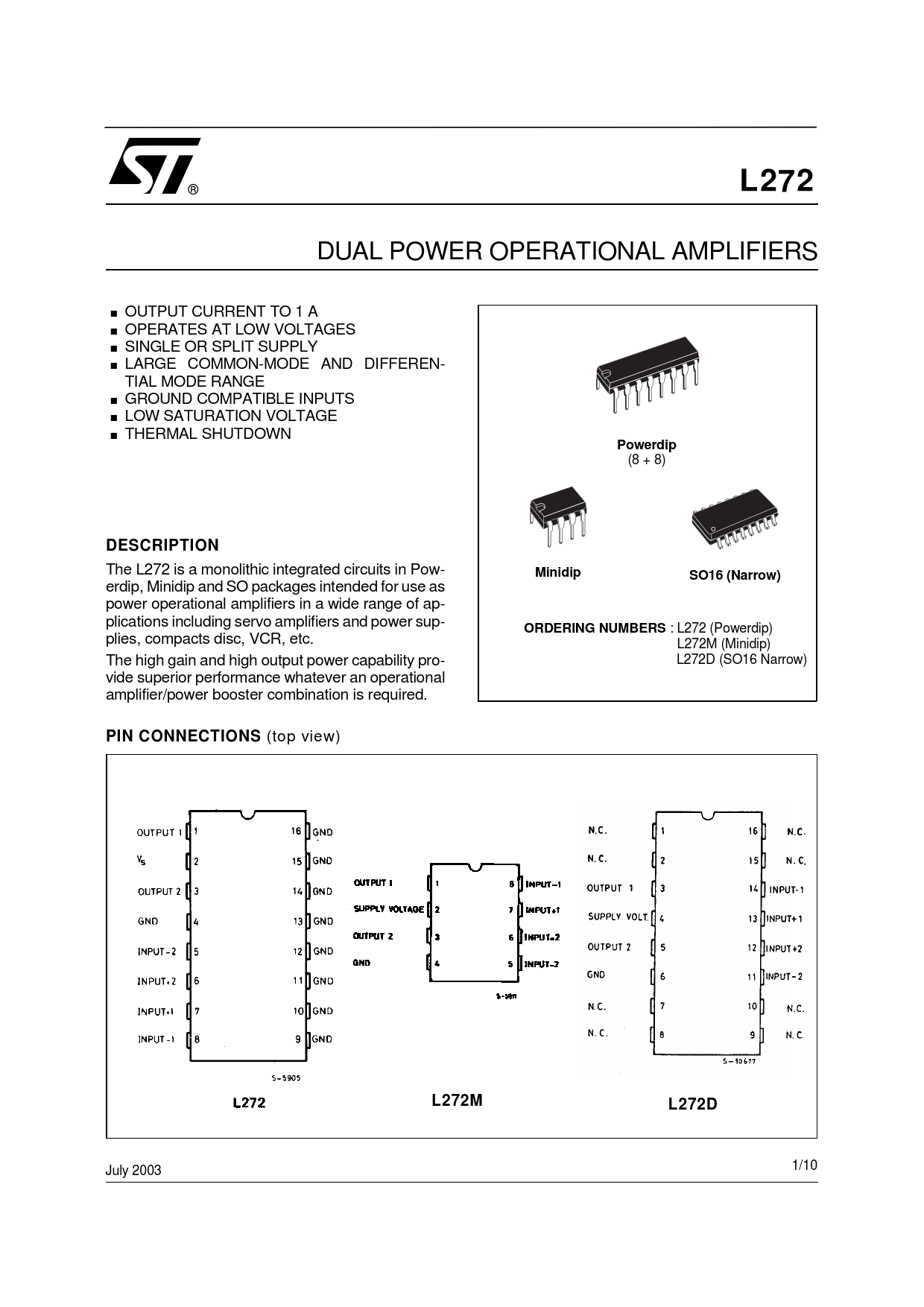

L272
DUAL POWER OPERATIONAL AMPLIFIERS .OUTPUT CURRENT TO 1 A .OPERATES AT LOW VOLTAGES .SINGLE OR SPLIT SUPPLY .LARGE COMMON-MODE AND DIFFEREN- TIAL MODE RANGE .GROUND COMPATIBLE INPUTS .LOW SATURATION VOLTAGE .THERMAL SHUTDOWN
Powerdip
(8 + 8)
DESCRIPTION
The L272 is a monolithic integrated circuits in Pow-
Minidip SO16 (Narrow)
erdip, Minidip and SO packages intended for use as power operational amplifiers in a wide range of ap- plications including servo amplifiers and power sup-
ORDERING NUMBERS
: L272 (Powerdip) plies, compacts disc, VCR, etc. L272M (Minidip) The high gain and high output power capability pro- L272D (SO16 Narrow) vide superior performance whatever an operational amplifier/power booster combination is required.
PIN CONNECTIONS
(top view)
L272M L272D
July 2003 1/10
