L272. Figure 12. Note. Figure 13
该数据表的模型线
文件文字版本

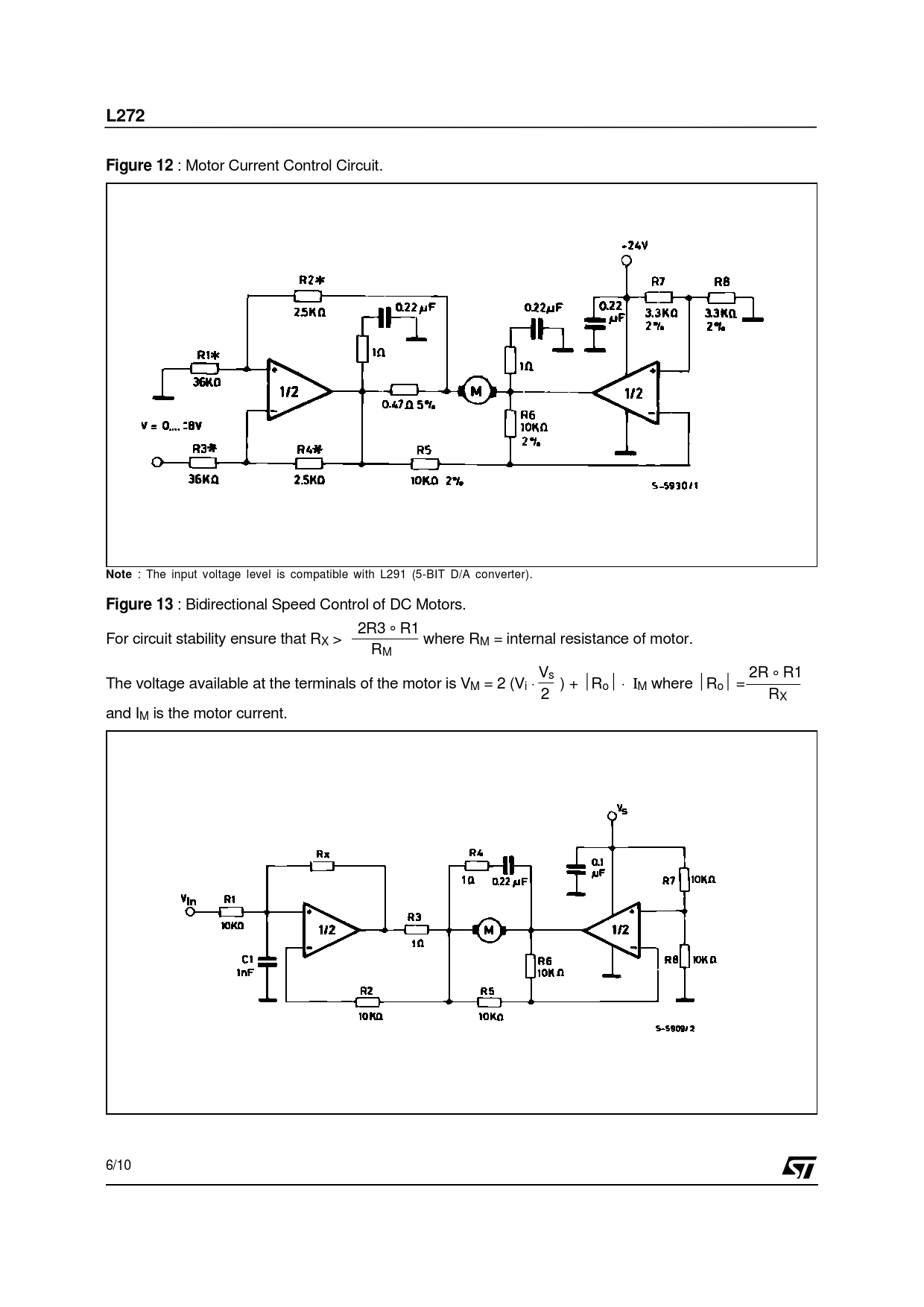

L272 Figure 12
: Motor Current Control Circuit.
Note
: The input voltage level is compatible with L291 (5-BIT D/A converter).
Figure 13
: Bidirectional Speed Control of DC Motors. 2R3 ° R1 For circuit stability ens ure that RX > where RM = internal resistance of motor. RM Vs 2R ° R1 The voltage available at the terminals of the motor is VM = 2 (Vi ⋅ ) + Ro ⋅ ΙM where Ro = 2 RX and IM is the motor current. 6/10
