Datasheet LMP2015, LMP2016 (National Semiconductor) - 5
| 制造商 | National Semiconductor |
| 描述 | Single/Dual High Precision, Rail-to-Rail Output Operational Amplifier |
| 页数 / 页 | 16 / 5 — LMP2015 Single/LMP2016 Dual. Typical Performance Characteristics. Supply … |
| 文件格式/大小 | PDF / 527 Kb |
| 文件语言 | 英语 |
LMP2015 Single/LMP2016 Dual. Typical Performance Characteristics. Supply Current vs. Supply Voltage
该数据表的模型线
文件文字版本

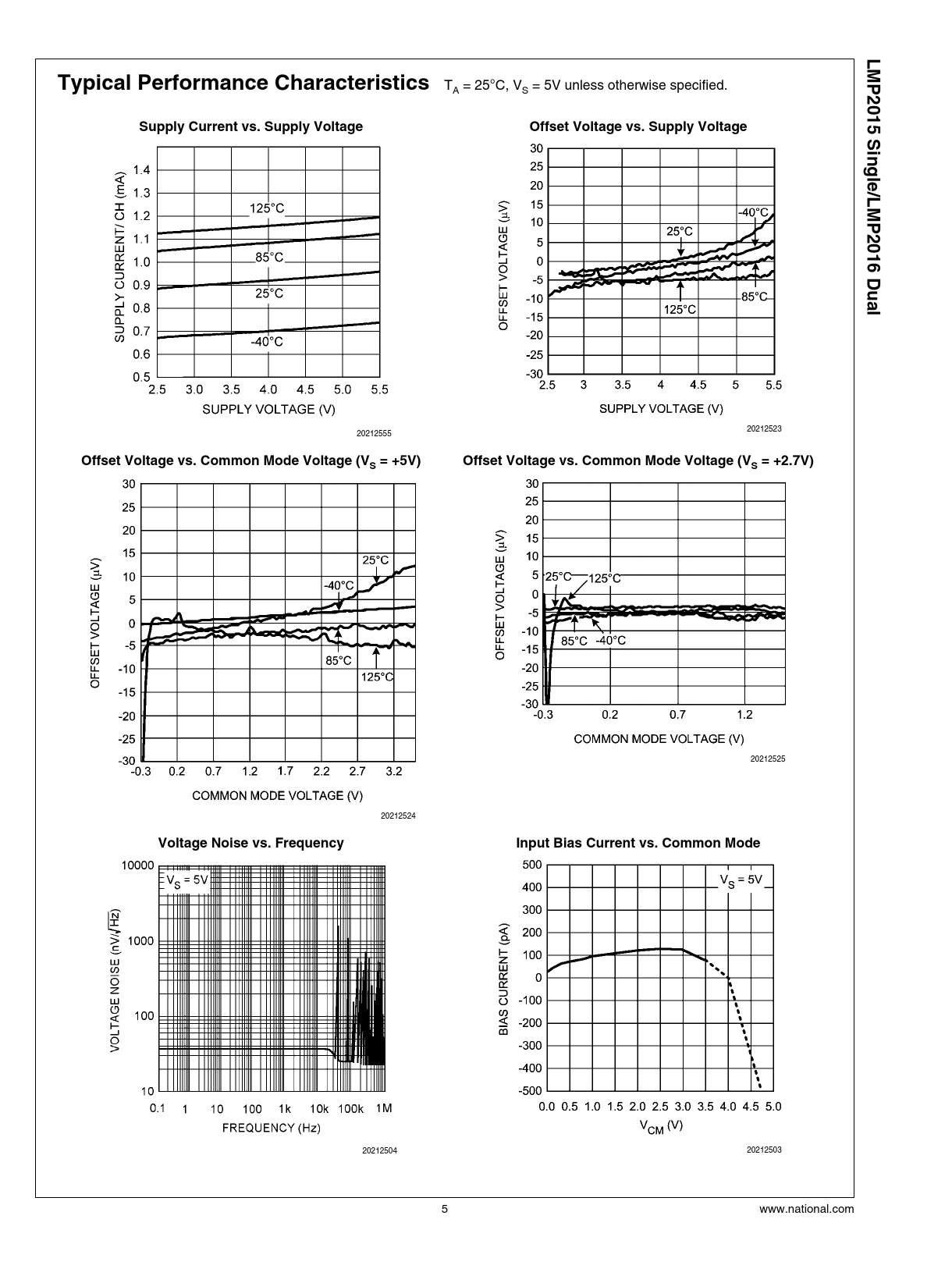

LMP2015 Single/LMP2016 Dual Typical Performance Characteristics
T = 25°C, V = 5V unless otherwise specified. A S
Supply Current vs. Supply Voltage Offset Voltage vs. Supply Voltage
20212523 20212555
Offset Voltage vs. Common Mode Voltage (V = +5V) Offset Voltage vs. Common Mode Voltage (V = +2.7V) S S
20212525 20212524
Voltage Noise vs. Frequency Input Bias Current vs. Common Mode
20212504 20212503 5 www.national.com Document Outline LMP2015 Single/LMP2016 Dual General Description Features Applications Connection Diagrams Ordering Information Absolute Maximum Ratings Operating Ratings 2.7V DC Electrical Characteristics 2.7V AC Electrical Characteristics 5V DC Electrical Characteristics 5V AC Electrical Characteristics Typical Performance Characteristics Application Information THE BENEFITS OF THE LMP2015/LMP2016'sNO 1/f NOISE OVERLOAD RECOVERY FIGURE 1. Overload Recovery Test NO EXTERNAL CAPACITORS REQUIRED MORE BENEFITS HOW THE LMP2015/LMP2016 WORK FIGURE 2. The Output of a Chopper Stabilized Op Amp (MAX432) FIGURE 3. The Output of the LMP2015/LMP2016 INPUT CURRENTS PRECISION STRAIN GAUGE AMPLIFIER FIGURE 4. Precision Strain Gauge Amplifier FIGURE 5. Composite Amplifier Configuration TABLE 1. Composite Amplifier Measured Performance FIGURE 6. Composite Amplifier Configuration FIGURE 7. AC Coupled ADC Driver LMP2015 AS AN ADC DRIVER FIGURE 8. DC Coupled ADC Driver Physical Dimensions
