| 制造商 | National Semiconductor |
| 描述 | Single/Dual High Precision, Rail-to-Rail Output Operational Amplifier |
| 页数 / 页 | 16 / 6 — PSRR vs. Frequency. LMP2015 Single/LMP2016 Dual. Output Sourcing @ 2.7V. … |
| 文件格式/大小 | PDF / 527 Kb |
| 文件语言 | 英语 |

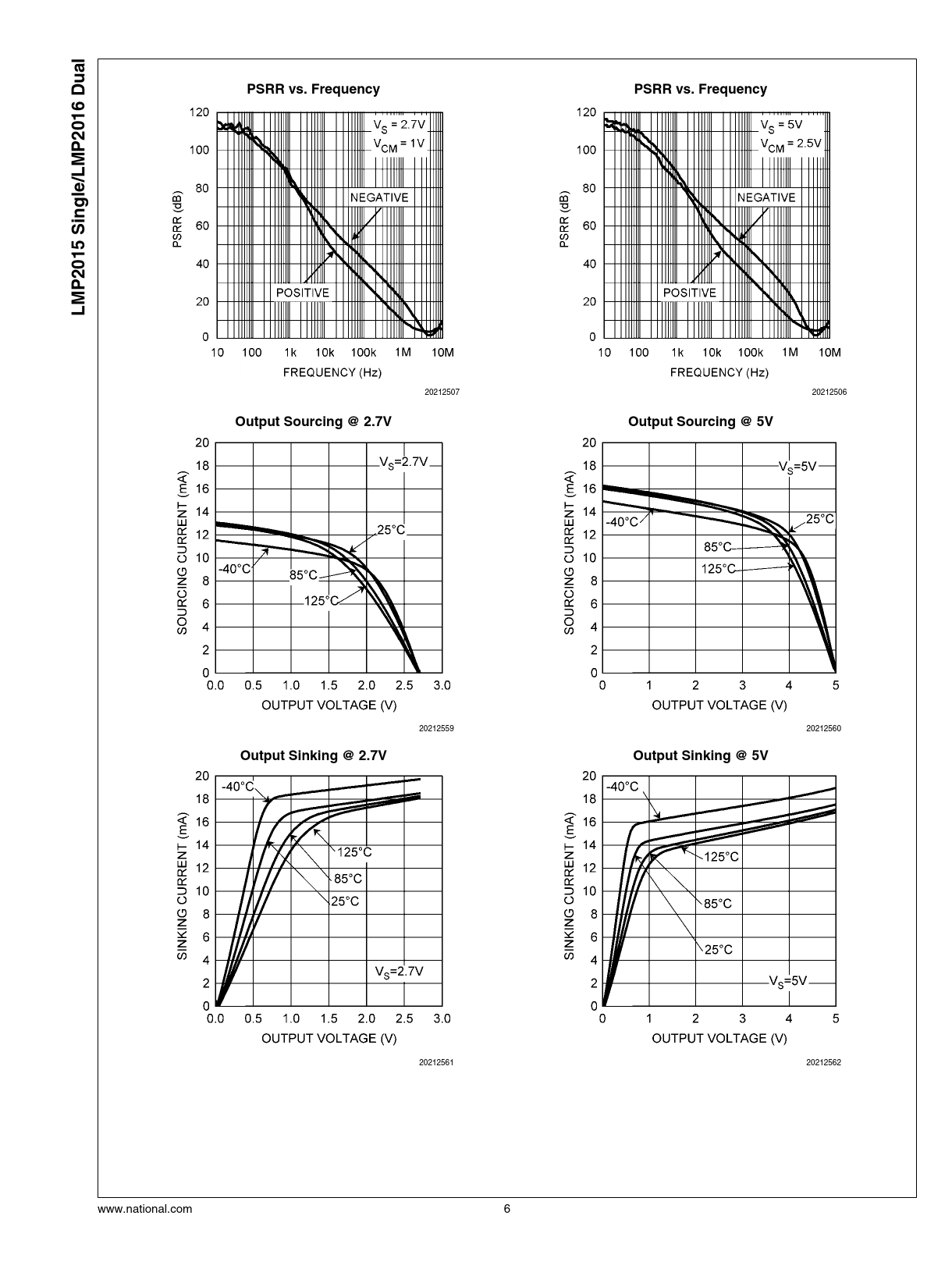

PSRR vs. Frequency. LMP2015 Single/LMP2016 Dual. Output Sourcing @ 2.7V. Output Sourcing @ 5V. Output Sinking @ 2.7V
该数据表的模型线
文件文字版本
PSRR vs. Frequency PSRR vs. Frequency LMP2015 Single/LMP2016 Dual
20212507 20212506
Output Sourcing @ 2.7V Output Sourcing @ 5V
20212559 20212560
Output Sinking @ 2.7V Output Sinking @ 5V
20212561 20212562 www.national.com 6 Document Outline LMP2015 Single/LMP2016 Dual General Description Features Applications Connection Diagrams Ordering Information Absolute Maximum Ratings Operating Ratings 2.7V DC Electrical Characteristics 2.7V AC Electrical Characteristics 5V DC Electrical Characteristics 5V AC Electrical Characteristics Typical Performance Characteristics Application Information THE BENEFITS OF THE LMP2015/LMP2016'sNO 1/f NOISE OVERLOAD RECOVERY FIGURE 1. Overload Recovery Test NO EXTERNAL CAPACITORS REQUIRED MORE BENEFITS HOW THE LMP2015/LMP2016 WORK FIGURE 2. The Output of a Chopper Stabilized Op Amp (MAX432) FIGURE 3. The Output of the LMP2015/LMP2016 INPUT CURRENTS PRECISION STRAIN GAUGE AMPLIFIER FIGURE 4. Precision Strain Gauge Amplifier FIGURE 5. Composite Amplifier Configuration TABLE 1. Composite Amplifier Measured Performance FIGURE 6. Composite Amplifier Configuration FIGURE 7. AC Coupled ADC Driver LMP2015 AS AN ADC DRIVER FIGURE 8. DC Coupled ADC Driver Physical Dimensions
