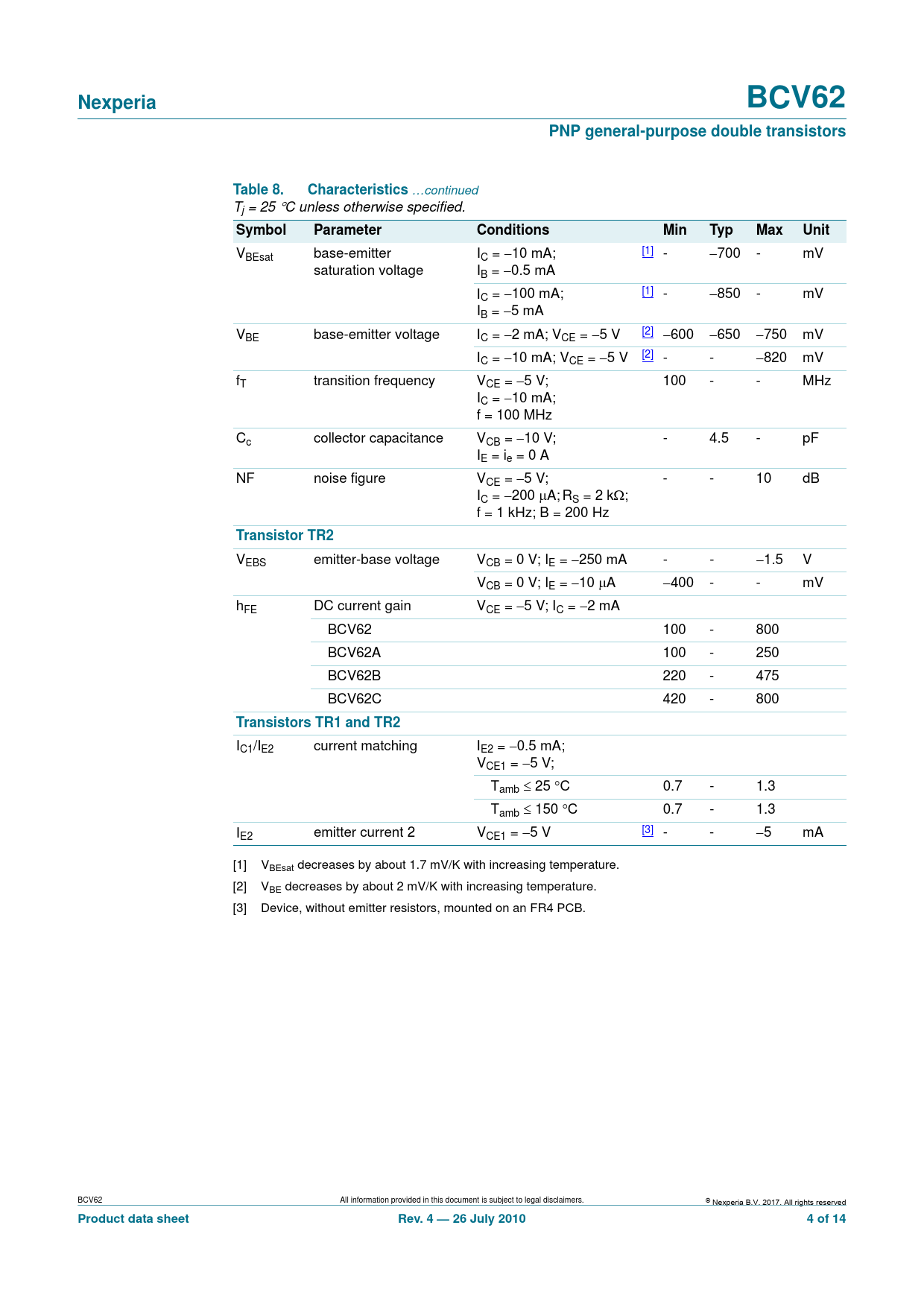

Nexperia BCV62 PNP general-purpose double transistors Table 8. Characteristics
…continued Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
V [1] BEsat base-emitter IC = −10 mA; - −700 - mV saturation voltage IB = −0.5 mA I [1] C = −100 mA; - −850 - mV IB = −5 mA VBE base-emitter voltage IC = −2 mA; VCE = −5 V [2] −600 −650 −750 mV IC = −10 mA; VCE = −5 V [2] - - −820 mV fT transition frequency VCE = −5 V; 100 - - MHz IC = −10 mA; f = 100 MHz Cc collector capacitance VCB = −10 V; - 4.5 - pF IE = ie = 0 A NF noise figure VCE = −5 V; - - 10 dB IC = −200 μA; RS = 2 kΩ; f = 1 kHz; B = 200 Hz
Transistor TR2
VEBS emitter-base voltage VCB = 0 V; IE = −250 mA - - −1.5 V VCB = 0 V; IE = −10 μA −400 - - mV hFE DC current gain VCE = −5 V; IC = −2 mA BCV62 100 - 800 BCV62A 100 - 250 BCV62B 220 - 475 BCV62C 420 - 800
Transistors TR1 and TR2
IC1/IE2 current matching IE2 = −0.5 mA; VCE1 = −5 V; T ≤ amb 25 °C 0.7 - 1.3 T ≤ amb 150 °C 0.7 - 1.3 IE2 emitter current 2 VCE1 = −5 V [3] - - −5 mA [1] VBEsat decreases by about 1.7 mV/K with increasing temperature. [2] VBE decreases by about 2 mV/K with increasing temperature. [3] Device, without emitter resistors, mounted on an FR4 PCB. BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 4 of 14
