Nexperia. BCV62. PNP general-purpose double transistors. 11. Soldering. Fig 17. Reflow soldering footprint SOT143B
该数据表的模型线
文件文字版本
Nexperia BCV62 PNP general-purpose double transistors 11. Soldering
3.25 0.6 (3×) 0.5 (3×) 1.9 solder lands 0.7 0.6 (3×) (3×) solder resist 2 3 solder paste occupied area 0.7 0.6 Dimensions in mm 0.75 0.95 0.9 1 sot143b_fr

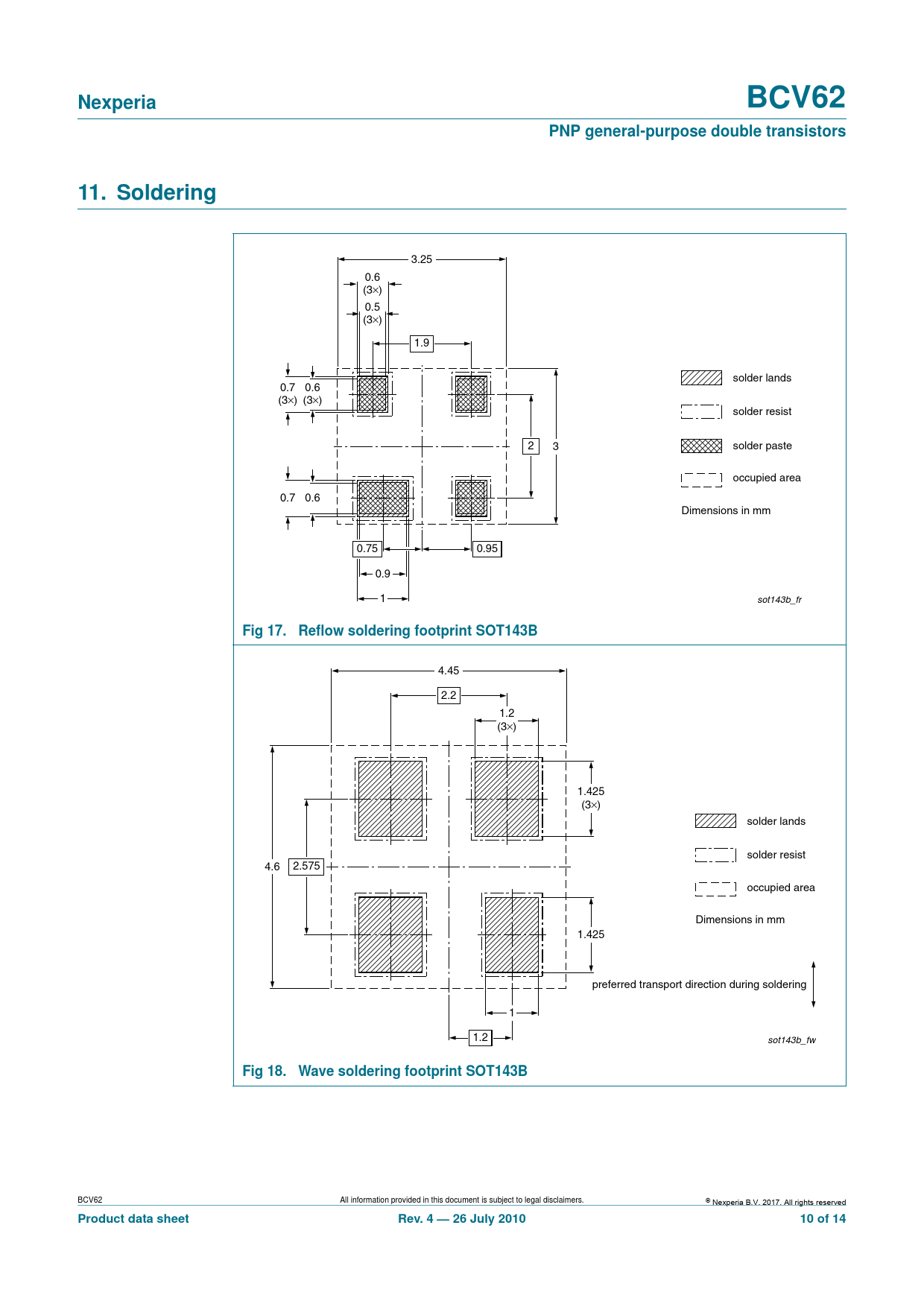

Fig 17. Reflow soldering footprint SOT143B
4.45 2.2 1.2 (3×) 1.425 (3×) solder lands solder resist 4.6 2.575 occupied area Dimensions in mm 1.425 preferred transport direction during soldering 1 1.2 sot143b_fw
Fig 18. Wave soldering footprint SOT143B
BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 10 of 14
