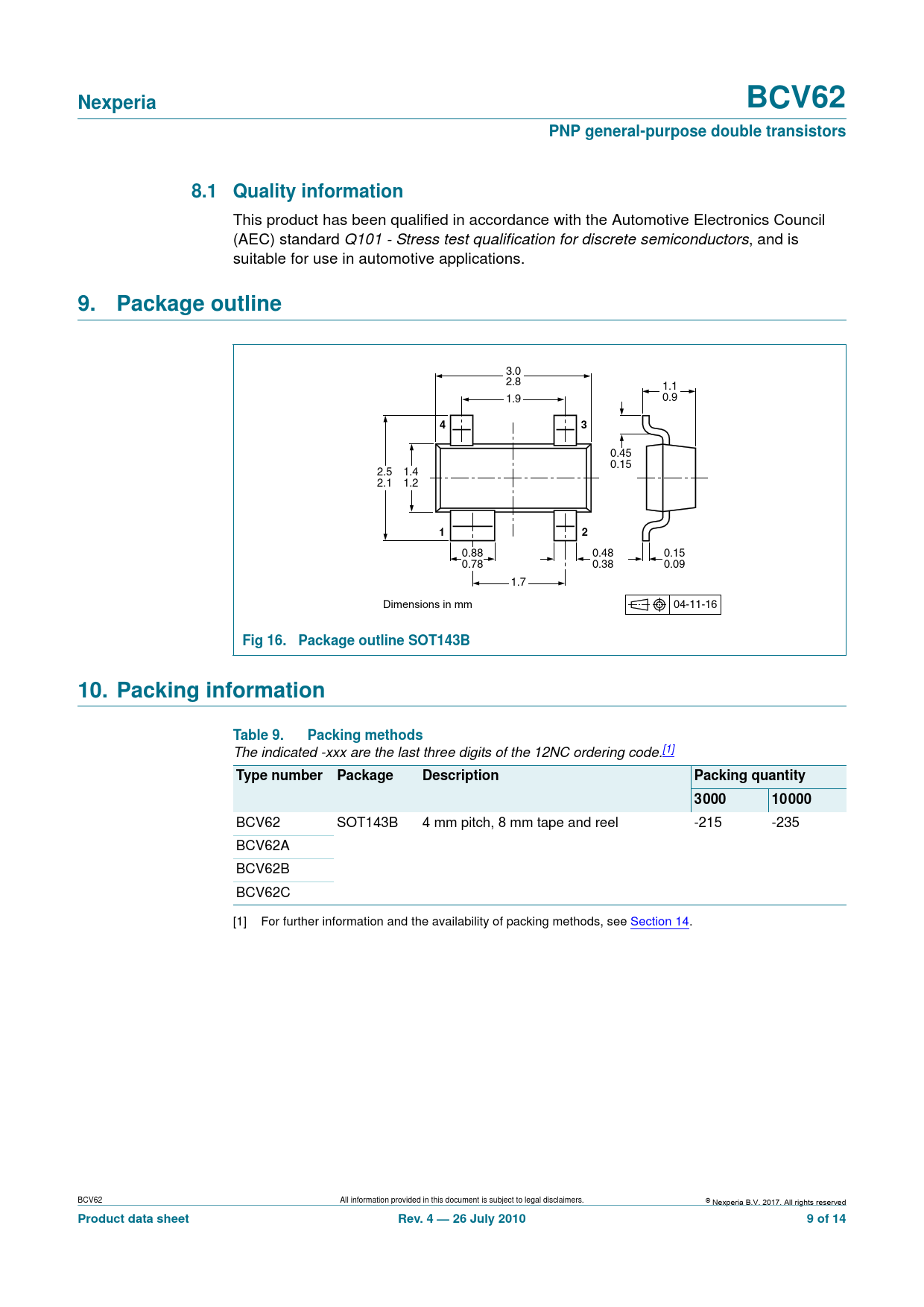

Nexperia. BCV62. PNP general-purpose double transistors. 8.1 Quality information. 9. Package. outline
该数据表的模型线
文件文字版本
link to page 13 link to page 9
Nexperia BCV62 PNP general-purpose double transistors 8.1 Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.
9. Package outline
3.0 2.8 1.1 1.9 0.9
4 3
0.45 0.15 2.5 1.4 2.1 1.2
1 2
0.88 0.48 0.15 0.78 0.38 0.09 1.7 Dimensions in mm 04-11-16
Fig 16. Package outline SOT143B 10. Packing information Table 9. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.[1]
Type number Package Description Packing quantity 3000 10000
BCV62 SOT143B 4 mm pitch, 8 mm tape and reel -215 -235 BCV62A BCV62B BCV62C [1] For further information and the availability of packing methods, see Section 14. BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 9 of 14
