Datasheet BCV62 (Nexperia) - 2
| 制造商 | Nexperia |
| 描述 | PNP General-Purpose Double Transistors |
| 页数 / 页 | 14 / 2 — Nexperia. BCV62. PNP general-purpose double transistors. Table 2. Quick … |
| 文件格式/大小 | PDF / 816 Kb |
| 文件语言 | 英语 |
Nexperia. BCV62. PNP general-purpose double transistors. Table 2. Quick reference data. Symbol. Parameter. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本

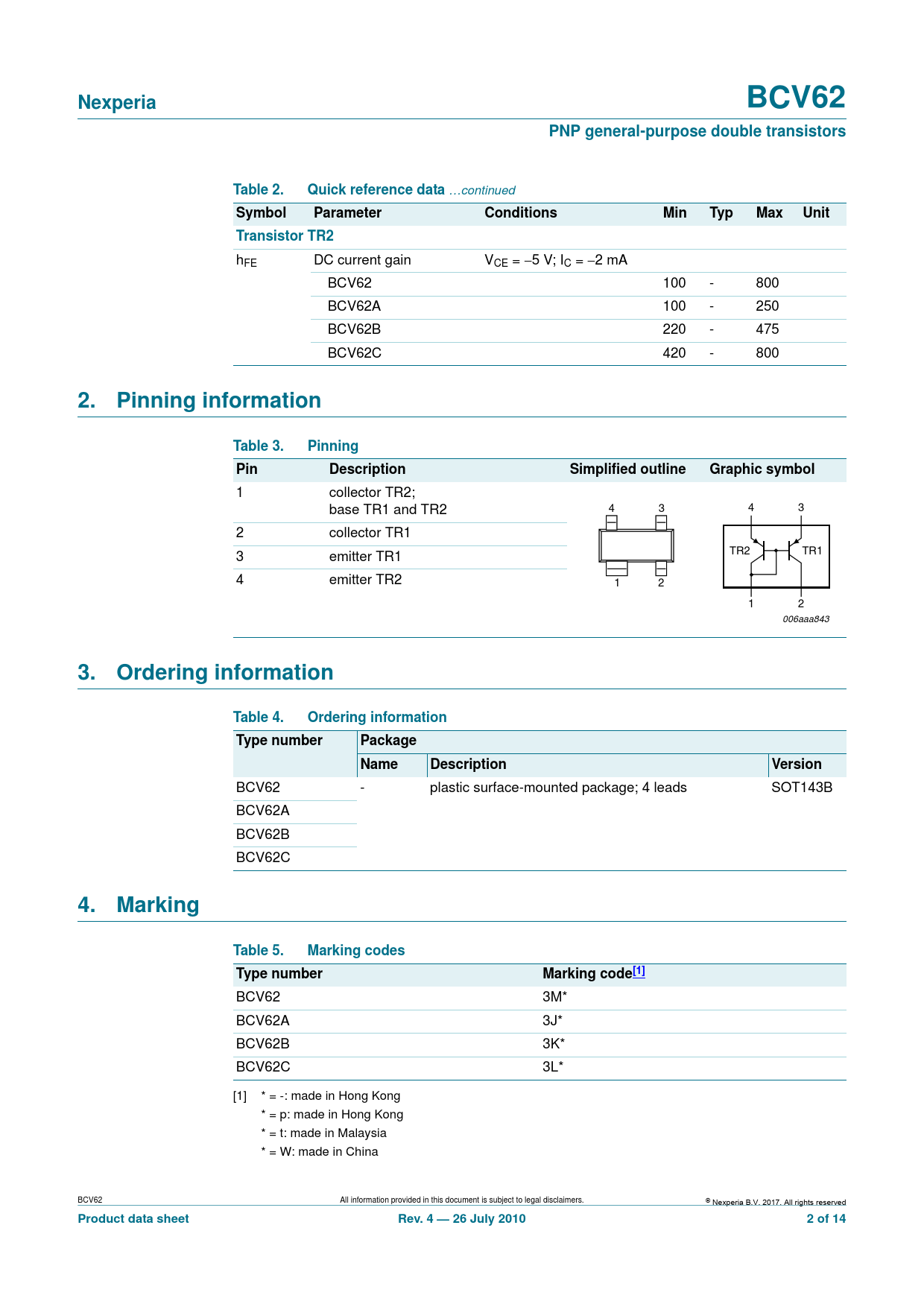

link to page 2
Nexperia BCV62 PNP general-purpose double transistors Table 2. Quick reference data
…continued
Symbol Parameter Conditions Min Typ Max Unit Transistor TR2
hFE DC current gain VCE = −5 V; IC = −2 mA BCV62 100 - 800 BCV62A 100 - 250 BCV62B 220 - 475 BCV62C 420 - 800
2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 collector TR2; base TR1 and TR2 4 3 4 3 2 collector TR1 3 emitter TR1 TR2 TR1 4 emitter TR2 1 2 1 2 006aaa843
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
BCV62 - plastic surface-mounted package; 4 leads SOT143B BCV62A BCV62B BCV62C
4. Marking Table 5. Marking codes Type number Marking code[1]
BCV62 3M* BCV62A 3J* BCV62B 3K* BCV62C 3L* [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 2 of 14
Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
Nexperia BCV62 PNP general-purpose double transistors Table 2. Quick reference data
…continued
Symbol Parameter Conditions Min Typ Max Unit Transistor TR2
hFE DC current gain VCE = −5 V; IC = −2 mA BCV62 100 - 800 BCV62A 100 - 250 BCV62B 220 - 475 BCV62C 420 - 800
2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 collector TR2; base TR1 and TR2 4 3 4 3 2 collector TR1 3 emitter TR1 TR2 TR1 4 emitter TR2 1 2 1 2 006aaa843
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
BCV62 - plastic surface-mounted package; 4 leads SOT143B BCV62A BCV62B BCV62C
4. Marking Table 5. Marking codes Type number Marking code[1]
BCV62 3M* BCV62A 3J* BCV62B 3K* BCV62C 3L* [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 2 of 14
