DMP2160UWQ. Package Outline Dimensions. SOT323. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
该数据表的模型线
文件文字版本

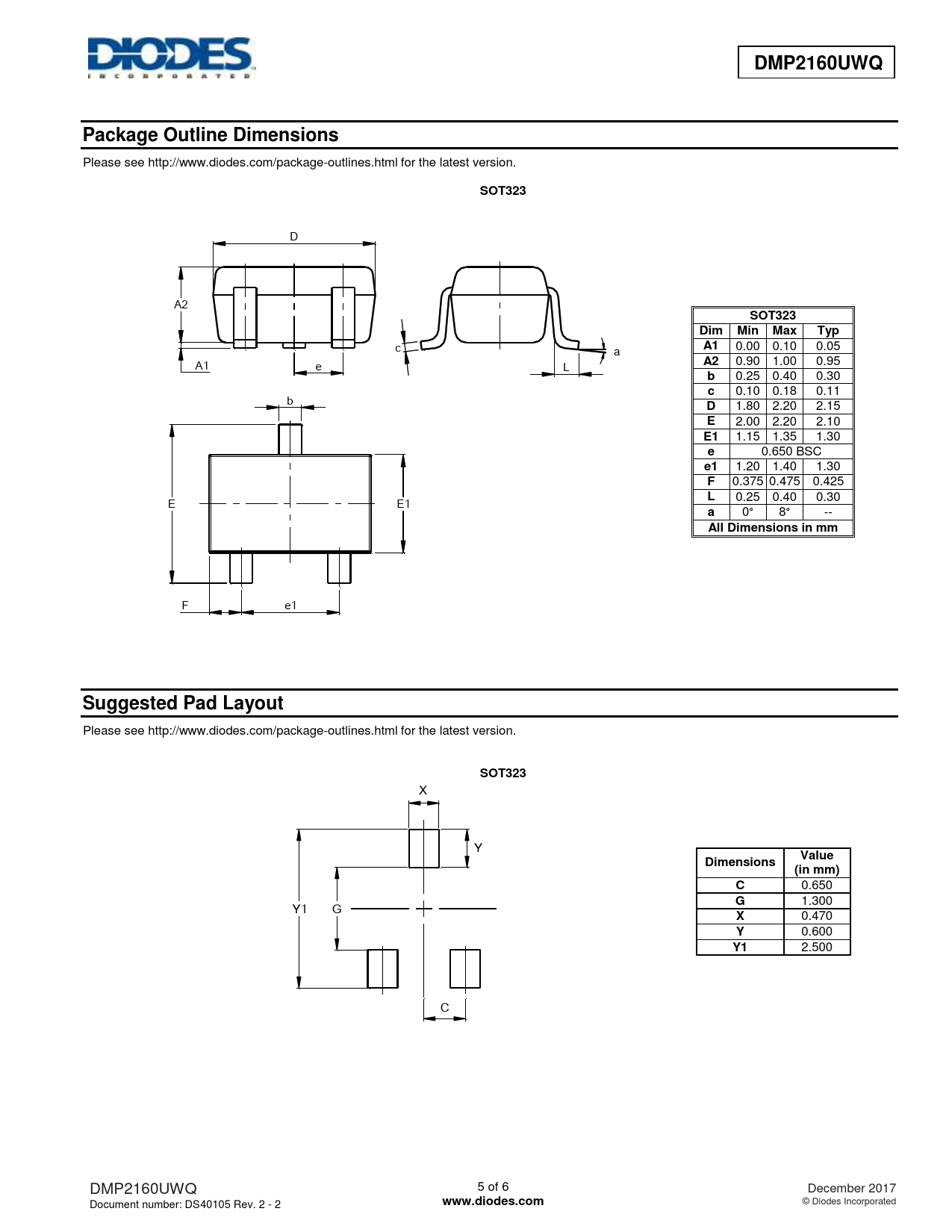

DMP2160UWQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT323
D A2
SOT323 Dim Min Max Typ
c
A1
0.00 0.10 0.05 a
A2
0.90 1.00 0.95 A1 e L
b
0.25 0.40 0.30
c
0.10 0.18 0.11 b
D
1.80 2.20 2.15
E
2.00 2.20 2.10
E1
1.15 1.35 1.30
e
0.650 BSC
e1
1.20 1.40 1.30
F
0.375 0.475 0.425
L
0.25 0.40 0.30 E E1
a
0° 8° --
All Dimensions in mm
F e1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT323
X Y
Value Dimensions (in mm) C
0.650
G
1.300
Y1 G
X
0.470
Y
0.600
Y1
2.500
C
DMP2160UWQ 5 of 6 December 2017 Document number: DS40105 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
