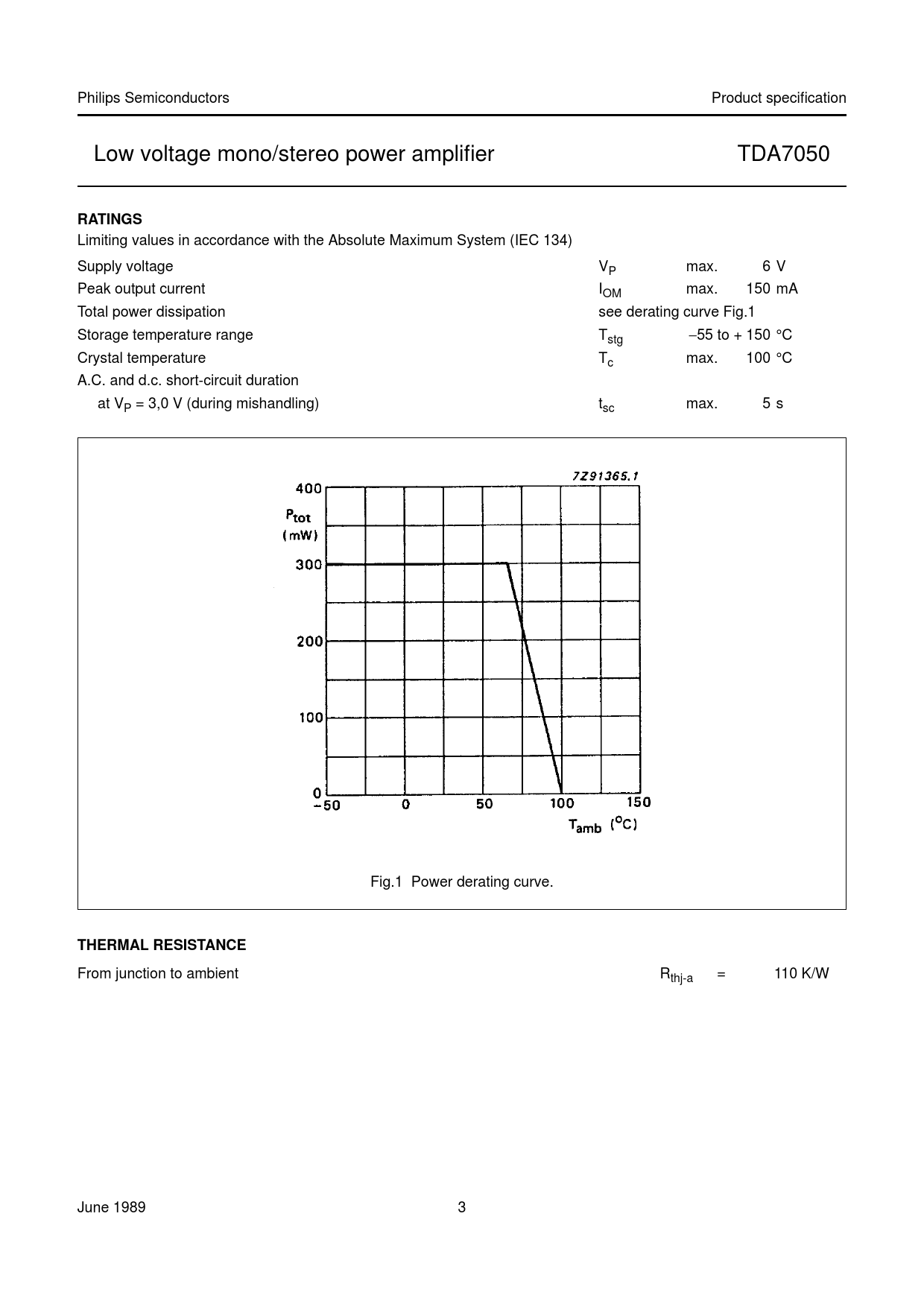

Philips Semiconductors Product specification Low voltage mono/stereo power amplifier TDA7050
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134) Supply voltage VP max. 6 V Peak output current IOM max. 150 mA Total power dissipation see derating curve Fig.1 Storage temperature range T − stg 55 to + 150 °C Crystal temperature Tc max. 100 °C A.C. and d.c. short-circuit duration at VP = 3,0 V (during mishandling) tsc max. 5 s Fig.1 Power derating curve.
THERMAL RESISTANCE
From junction to ambient Rthj-a = 110 K/W June 1989 3
