SFH6156
www.vishay.com Vishay Semiconductors

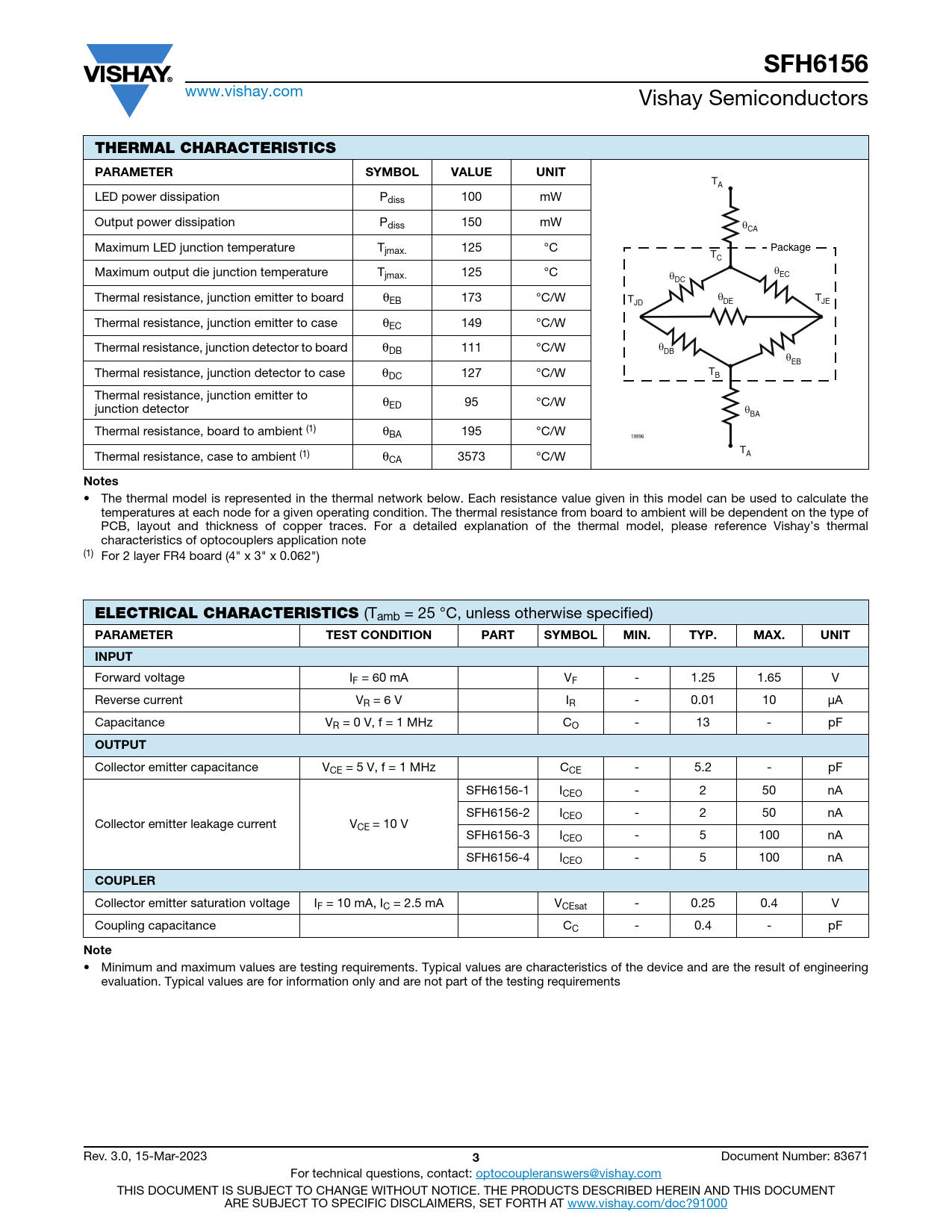

THERMAL CHARACTERISTICS PARAMETER SYMBOL VALUE UNIT
TA LED power dissipation Pdiss 100 mW Output power dissipation Pdiss 150 mW θCA Maximum LED junction temperature Tjmax. 125 °C Package TC Maximum output die junction temperature T θ jmax. 125 °C EC θDC Thermal resistance, junction emitter to board θEB 173 °C/W T θ T JD DE JE Thermal resistance, junction emitter to case θEC 149 °C/W Thermal resistance, junction detector to board θ θ DB 111 °C/W DB θEB Thermal resistance, junction detector to case θ T DC 127 °C/W B Thermal resistance, junction emitter to θ junction detector ED 95 °C/W θBA Thermal resistance, board to ambient (1) θBA 195 °C/W 19996 T Thermal resistance, case to ambient (1) θ A CA 3573 °C/W
Notes
• The thermal model is represented in the thermal network below. Each resistance value given in this model can be used to calculate the temperatures at each node for a given operating condition. The thermal resistance from board to ambient will be dependent on the type of PCB, layout and thickness of copper traces. For a detailed explanation of the thermal model, please reference Vishay’s thermal characteristics of optocouplers application note (1) For 2 layer FR4 board (4" x 3" x 0.062")
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT INPUT
Forward voltage IF = 60 mA VF - 1.25 1.65 V Reverse current VR = 6 V IR - 0.01 10 μA Capacitance VR = 0 V, f = 1 MHz CO - 13 - pF
OUTPUT
Collector emitter capacitance VCE = 5 V, f = 1 MHz CCE - 5.2 - pF SFH6156-1 ICEO - 2 50 nA SFH6156-2 ICEO - 2 50 nA Collector emitter leakage current VCE = 10 V SFH6156-3 ICEO - 5 100 nA SFH6156-4 ICEO - 5 100 nA
COUPLER
Collector emitter saturation voltage IF = 10 mA, IC = 2.5 mA VCEsat - 0.25 0.4 V Coupling capacitance CC - 0.4 - pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering evaluation. Typical values are for information only and are not part of the testing requirements Rev. 3.0, 15-Mar-2023
3
Document Number: 83671 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
