Datasheet SFH6156 (Vishay) - 4
| 制造商 | Vishay |
| 描述 | Optocoupler, Phototransistor Output, High Reliability, 5300 V RMS |
| 页数 / 页 | 9 / 4 — SFH6156. CURRENT TRANSFER RATIO PARAMETER. TEST CONDITION. PART. SYMBOL. … |
| 文件格式/大小 | PDF / 174 Kb |
| 文件语言 | 英语 |
SFH6156. CURRENT TRANSFER RATIO PARAMETER. TEST CONDITION. PART. SYMBOL. MIN. TYP. MAX. UNIT. SWITCHING CHARACTERISTICS. PARAMETER
该数据表的模型线
文件文字版本

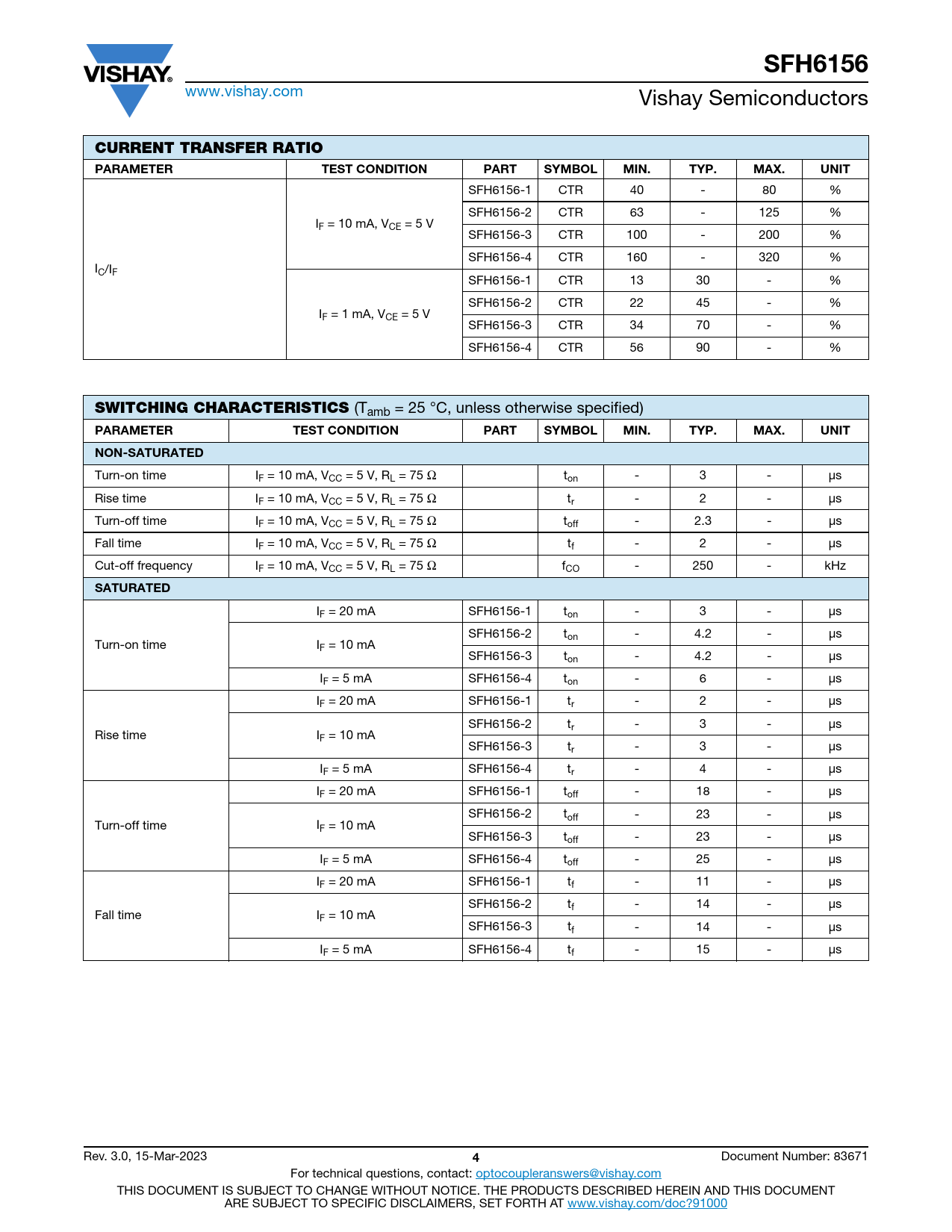

SFH6156
www.vishay.com Vishay Semiconductors
CURRENT TRANSFER RATIO PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
SFH6156-1 CTR 40 - 80 % SFH6156-2 CTR 63 - 125 % IF = 10 mA, VCE = 5 V SFH6156-3 CTR 100 - 200 % SFH6156-4 CTR 160 - 320 % IC/IF SFH6156-1 CTR 13 30 - % SFH6156-2 CTR 22 45 - % IF = 1 mA, VCE = 5 V SFH6156-3 CTR 34 70 - % SFH6156-4 CTR 56 90 - %
SWITCHING CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT NON-SATURATED
Turn-on time IF = 10 mA, VCC = 5 V, RL = 75 Ω ton - 3 - μs Rise time IF = 10 mA, VCC = 5 V, RL = 75 Ω tr - 2 - μs Turn-off time IF = 10 mA, VCC = 5 V, RL = 75 Ω toff - 2.3 - μs Fall time IF = 10 mA, VCC = 5 V, RL = 75 Ω tf - 2 - μs Cut-off frequency IF = 10 mA, VCC = 5 V, RL = 75 Ω fCO - 250 - kHz
SATURATED
IF = 20 mA SFH6156-1 ton - 3 - μs SFH6156-2 ton - 4.2 - μs Turn-on time IF = 10 mA SFH6156-3 ton - 4.2 - μs IF = 5 mA SFH6156-4 ton - 6 - μs IF = 20 mA SFH6156-1 tr - 2 - μs SFH6156-2 tr - 3 - μs Rise time IF = 10 mA SFH6156-3 tr - 3 - μs IF = 5 mA SFH6156-4 tr - 4 - μs IF = 20 mA SFH6156-1 toff - 18 - μs SFH6156-2 toff - 23 - μs Turn-off time IF = 10 mA SFH6156-3 toff - 23 - μs IF = 5 mA SFH6156-4 toff - 25 - μs IF = 20 mA SFH6156-1 tf - 11 - μs SFH6156-2 tf - 14 - μs Fall time IF = 10 mA SFH6156-3 tf - 14 - μs IF = 5 mA SFH6156-4 tf - 15 - μs Rev. 3.0, 15-Mar-2023
4
Document Number: 83671 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
CURRENT TRANSFER RATIO PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
SFH6156-1 CTR 40 - 80 % SFH6156-2 CTR 63 - 125 % IF = 10 mA, VCE = 5 V SFH6156-3 CTR 100 - 200 % SFH6156-4 CTR 160 - 320 % IC/IF SFH6156-1 CTR 13 30 - % SFH6156-2 CTR 22 45 - % IF = 1 mA, VCE = 5 V SFH6156-3 CTR 34 70 - % SFH6156-4 CTR 56 90 - %
SWITCHING CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT NON-SATURATED
Turn-on time IF = 10 mA, VCC = 5 V, RL = 75 Ω ton - 3 - μs Rise time IF = 10 mA, VCC = 5 V, RL = 75 Ω tr - 2 - μs Turn-off time IF = 10 mA, VCC = 5 V, RL = 75 Ω toff - 2.3 - μs Fall time IF = 10 mA, VCC = 5 V, RL = 75 Ω tf - 2 - μs Cut-off frequency IF = 10 mA, VCC = 5 V, RL = 75 Ω fCO - 250 - kHz
SATURATED
IF = 20 mA SFH6156-1 ton - 3 - μs SFH6156-2 ton - 4.2 - μs Turn-on time IF = 10 mA SFH6156-3 ton - 4.2 - μs IF = 5 mA SFH6156-4 ton - 6 - μs IF = 20 mA SFH6156-1 tr - 2 - μs SFH6156-2 tr - 3 - μs Rise time IF = 10 mA SFH6156-3 tr - 3 - μs IF = 5 mA SFH6156-4 tr - 4 - μs IF = 20 mA SFH6156-1 toff - 18 - μs SFH6156-2 toff - 23 - μs Turn-off time IF = 10 mA SFH6156-3 toff - 23 - μs IF = 5 mA SFH6156-4 toff - 25 - μs IF = 20 mA SFH6156-1 tf - 11 - μs SFH6156-2 tf - 14 - μs Fall time IF = 10 mA SFH6156-3 tf - 14 - μs IF = 5 mA SFH6156-4 tf - 15 - μs Rev. 3.0, 15-Mar-2023
4
Document Number: 83671 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
