Datasheet AOZ8S205BLS (Alpha & Omega)
| 制造商 | Alpha & Omega |
| 描述 | Single Channel Bidirectional 0.075pF TVS Diode |
| 页数 / 页 | 6 / 1 — AOZ8S205BLS-24. Single Channel Bidirectional. 0.07 5pF TVS Diode. General … |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |

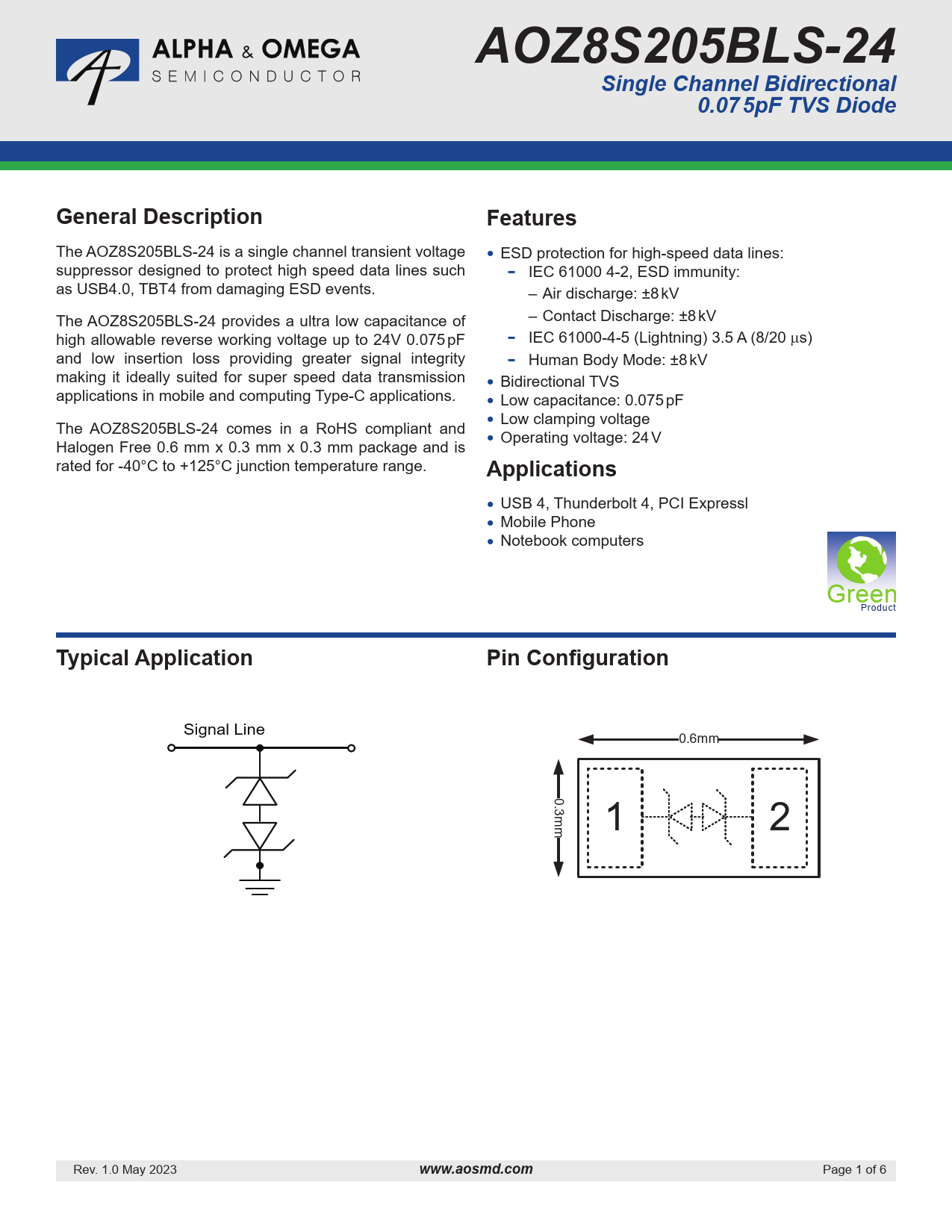

AOZ8S205BLS-24. Single Channel Bidirectional. 0.07 5pF TVS Diode. General Description. Features. Applications. Typical Application
该数据表的模型线
文件文字版本
AOZ8S205BLS-24 Single Channel Bidirectional 0.07 5pF TVS Diode General Description Features
The AOZ8S205BLS-24 is a single channel transient voltage • ESD protection for high-speed data lines: suppressor designed to protect high speed data lines such - IEC 61000 4-2, ESD immunity: as USB4.0, TBT4 from damaging ESD events. – Air discharge: ±8 kV The AOZ8S205BLS-24 provides a ultra low capacitance of – Contact Discharge: ±8 kV high allowable reverse working voltage up to 24V 0.075 pF - IEC 61000-4-5 (Lightning) 3.5 A (8/20 µs) and low insertion loss providing greater signal integrity - Human Body Mode: ±8 kV making it ideally suited for super speed data transmission • Bidirectional TVS applications in mobile and computing Type-C applications. • Low capacitance: 0.075 pF The AOZ8S205BLS-24 comes in a RoHS compliant and • Low clamping voltage Halogen Free 0.6 mm x 0.3 mm x 0.3 mm package and is • Operating voltage: 24 V rated for -40°C to +125°C junction temperature range.
Applications
• USB 4, Thunderbolt 4, PCI Expressl • Mobile Phone • Notebook computers Green Product
Typical Application Pin Configuration
Signal Line 0.6mm m3.0 m 1 2 Rev. 1.0 May 2023
www.aosmd.com
Page 1 of 6
The AOZ8S205BLS-24 is a single channel transient voltage • ESD protection for high-speed data lines: suppressor designed to protect high speed data lines such - IEC 61000 4-2, ESD immunity: as USB4.0, TBT4 from damaging ESD events. – Air discharge: ±8 kV The AOZ8S205BLS-24 provides a ultra low capacitance of – Contact Discharge: ±8 kV high allowable reverse working voltage up to 24V 0.075 pF - IEC 61000-4-5 (Lightning) 3.5 A (8/20 µs) and low insertion loss providing greater signal integrity - Human Body Mode: ±8 kV making it ideally suited for super speed data transmission • Bidirectional TVS applications in mobile and computing Type-C applications. • Low capacitance: 0.075 pF The AOZ8S205BLS-24 comes in a RoHS compliant and • Low clamping voltage Halogen Free 0.6 mm x 0.3 mm x 0.3 mm package and is • Operating voltage: 24 V rated for -40°C to +125°C junction temperature range.
Applications
• USB 4, Thunderbolt 4, PCI Expressl • Mobile Phone • Notebook computers Green Product
Typical Application Pin Configuration
Signal Line 0.6mm m3.0 m 1 2 Rev. 1.0 May 2023
www.aosmd.com
Page 1 of 6
